Audio-video and rear-view camera input interface for Land Rover with Touch-screen nav version 3 or 3.1
CI-C4-LR12-NB
New
c.LOGiC C4 Land Rover touch-screen infotainment version 3
The c.LOGiC multimedia interface allows to connect 3 AV-sources (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. With touch-screen control for after-market navigation NAV-WP9200 and 2 AV-sources. Additionally the connection of a rear-view camera is possible. Video-in-motion is included.
Product features
- Full plug and play multimedia interface
- 3 AV-inputs
- Optional control of navigation (NAV-WP9200 and 2 more devices e.g. DVD-player, DVB-T tuner) by factory touch-screen
- Rear-view camera input
- Rear-view camera power (+12V max. 1A)
- Automatic switching to rear-view camera input
- Rear-seat-entertainment output for AV-sources connected to the c.LOGiC
- Video-in-motion
- USB update-port for software-updates by consumer
Compatibility
| Model | Navigation |
| Range Rover Evoque L538 from 2012 | Touch-screen infotainment 3 or 3.1 8 inch 16:9 monitor with touch-screen menu 3 |
| Range Rover Sport L320 2012 - 2016 | |
| Discovery4 L319 from 2012 | |
| Discovery Sport from 2015 | |
| Range Rover L322 2012 - 2016 | |
| Freelander2 L359 2013 - 2014 |
Limitations
| Audio-AUX | A factory audio-AUX input is required. |
| Video-sources | Only compatible to NTSC-sources. |
| Factory-PDC | The factory-PDC picture is not available by connecting the interface. Acoustic signals are still existing. |
Specifications (Interface-box)
| Operation voltage | 10.5 - 14.8V |
| Stand-by power drain | 11mA |
| Operation power drain | 36mA |
| Power consumption | 0.5W |
| Temperature range | -30°C to +80°C |
| Weight | 190g |
| Measurements | 105 x 30 x 84 mm (W x H x D) |
Connections (Interface-box)
| FRONT | REAR |
| male 18pin MicroFit connector (Power/CAN) | 3x male 6pin MicroFit connector (AV1-3) |
| male 4pin MicroFit connector (RC) | 3x female RCA connector |
| Female Mini USB connector (Update) |

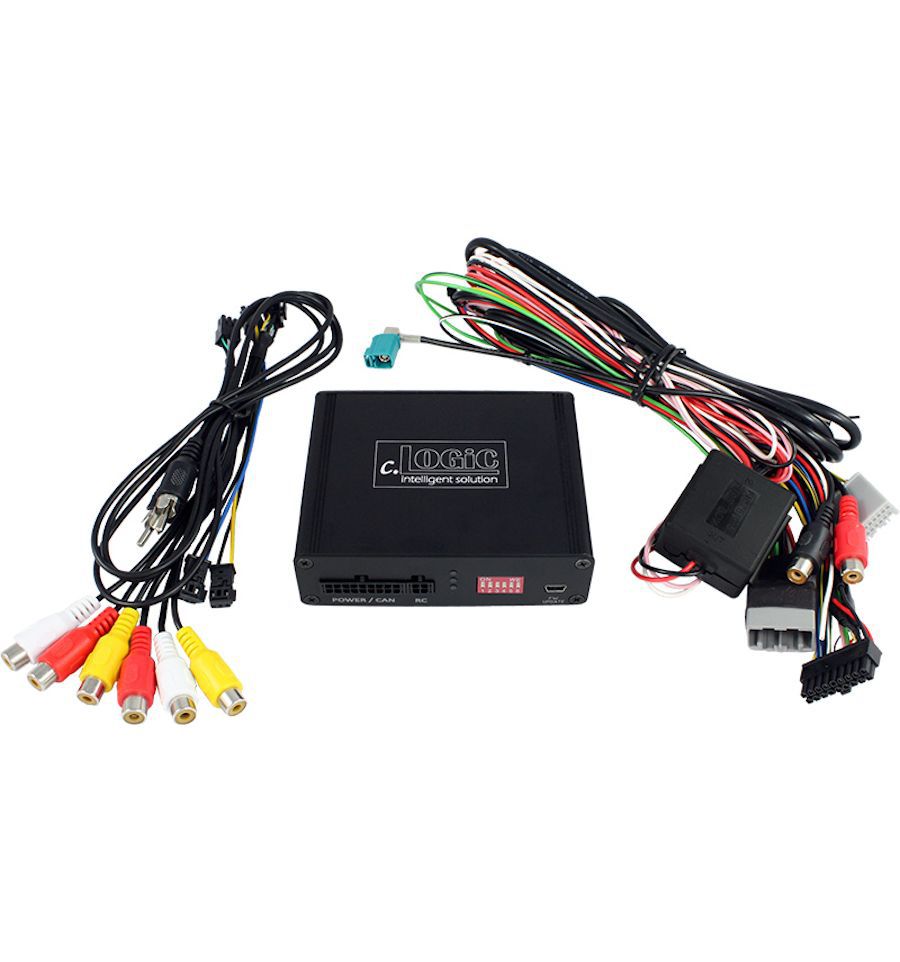

Delivery contents:
- Interface-box C4C-M816B
- Harness C4C-LR02-NB
- 2x AV-cable CAB-AV-6P
- RCA-adapter CAB-RCA1-10
- IR-cable C2C-IR
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Land Rover | Discovery, Discovery Sport, Evoque, Freelander 2, Range Rover, Range Rover Sport |
| Category | Rear View Camera Interfaces, Video integration, Video in Motion |
