Peugeot NAC low/high (Continental) RCC (Bosch) video interface with Rear camera input Expand

Peugeot NAC low/high (Continental) RCC (Bosch) video interface with Rear camera input

Peugeot Peugeot

CI-RL4-NAC08-PE

New

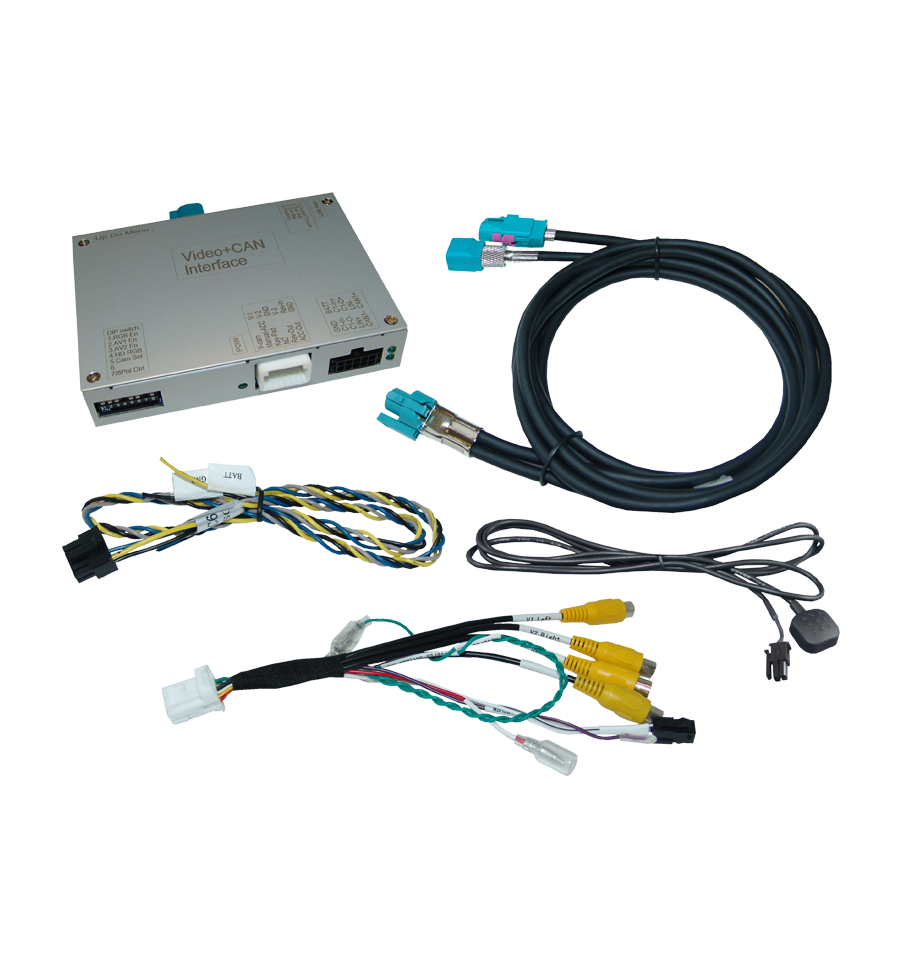

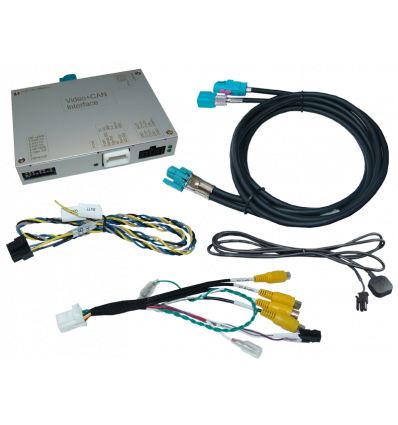

RVC Interface for rear view camera for Peugeot NAC low/high (Continental), RCC (Bosch).

More details

shipped in 24 h

€ 339,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

RVC Interface for rear view camera for Peugeot NAC low/high (Continental), RCC (Bosch).

This interface allows you to integrate a  rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).




Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera CVBS video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible

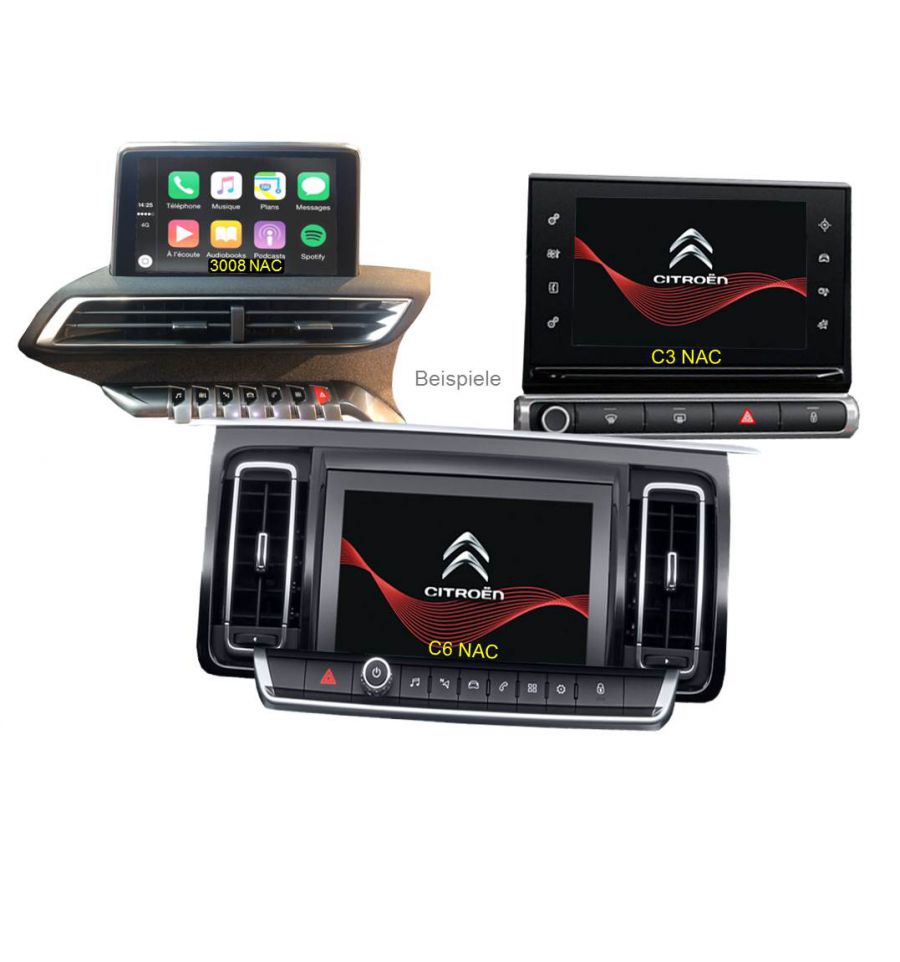

 Compatibility:

ModelRadio / Navigation
  208 2017 >
NAC low/high (Continental)
RCC (Bosch) with 7inch or 8inch monitor

For Continental High version an additional cable CAB-HSD-MF026 might be required
  2008 2017 >
  308 08/2017 >
 508 08/2018 >
  3008 09/2016 >
  4008 2017 >
  5008 2017 >
  Boxer 2016 >
  Expert 2016 >
  Partner 2019 >
  Traveller 2016 >
  Rifter 2018 >
  Other vehicles with >



Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V 25V
Stand.by power drain2.8mA
Power300mA@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions118 x 23 x 105 mm (W x H x D)



Connectors

  • Video-insertion: 4-pin HSD or double 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view and front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
