Peugeot Uconnect 5 front and rear camera inputs video interface Expand

Peugeot Uconnect 5 front and rear camera inputs video interface

Peugeot Peugeot

CI-UCON5N-PE

New

Peugeot Uconnect 5 front and rear camera inputs video interface

More details

shipped in 24 h

€ 339,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Peugeot Uconnect 5 front and rear camera inputs video interface

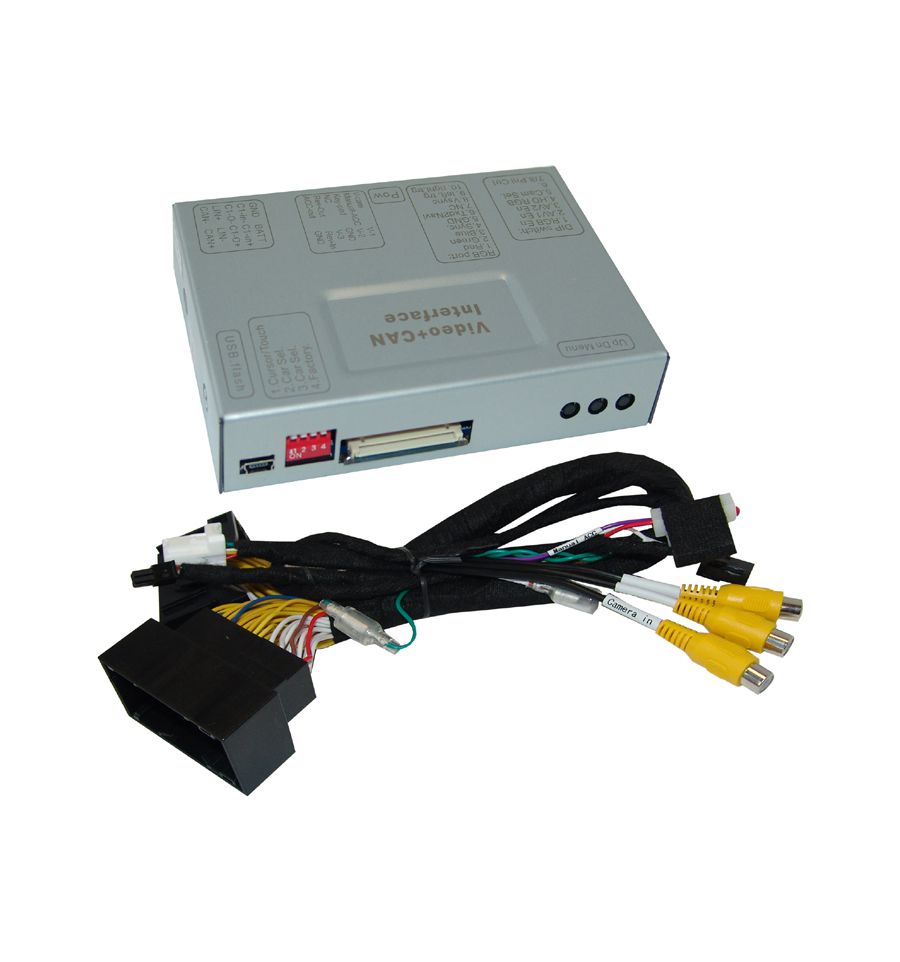

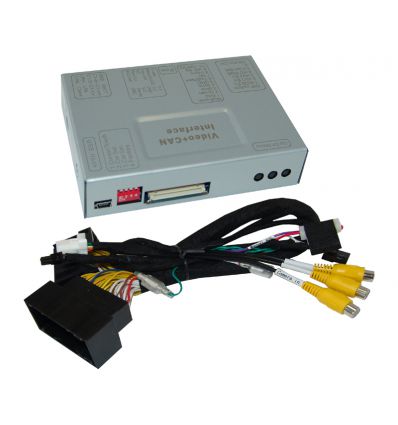

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.




Main features:

  • Video-inserter for factory-infotainment systems
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Activatable parking guide lines for rear-view camera (not available on all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • Video-inputs PAL/NTSC compatible



Compatibility:

ModelSystem
 Boxer from 2012
Uconnect VP2/RA2, 5inch monitor with CD-drive and DIN-shell behind front-panel

Limitations:

  • Head unit must be temporary opened to install this interface, professional installation is required.
  • The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
  • The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.

Specifications:

BATT/ACCrange7V - 25V
Stand by power drain3.6mA
Power0.3A@12V
Video input0.7V - 1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedanz
Temperature range-40°C to +85°C
Dimensions video-box115 x 25 x 89mm (W x H x D)

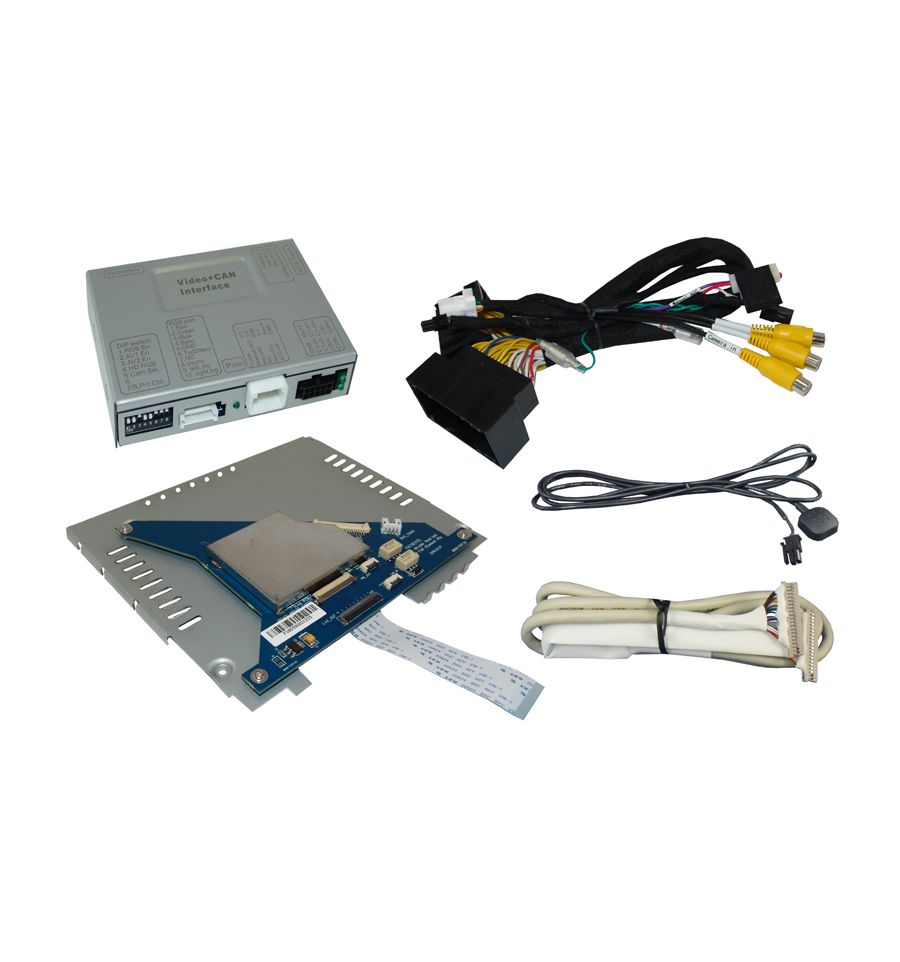

Connectors:

  • Video-insertion: Ribbon cable
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector


Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

PeugeotBoxer 2
CategoryRear View Camera Interfaces, Video integration
