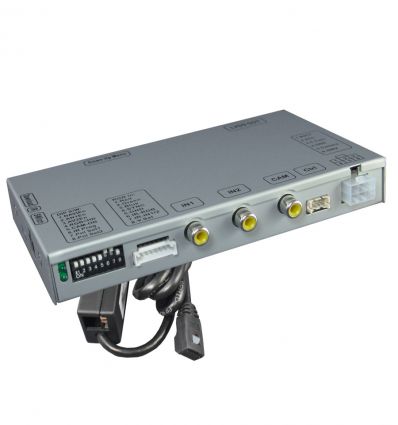

Video Interface for Peugeot Wip Com - Nav 3D - NG4 original navigation systems.
Video Interface for Peugeot WIP Com/Connect Com RT3(evo) - 4 - 5 - RNEG, WIP Com/Connect Com 3D NG4, WIP Nav+ / Connect Nav 10pin connector.
Watch any video source on your original screen
This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.
The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the provided keypad.
Product features:
- Video-insertion for factory-infotainment monitors
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Built-in audio-switch (no audio-insertion)
- Rear-view camera CVBS video-input
- Automatic switching to rear-view camera input on engagement of reverse gear
- RGB-input for after-market navigation
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
WIP Com/Connect Com RT3(evo) - 4 - 5 - RNEG, WIP Com/Connect Com 3D NG4, WIP Nav+ / Connect Nav 10pin connector.
| Brand | Model | Navigation |
|---|---|---|
| Peugeot | 1007 from 12/2006 until 12/2007, 307 from 01/2007 until 12/2007, 307CC from 01/2007 until 12/2007, 407 from 10/2006 until 12/2007, 607 from 08/2006 until 12/2007 | WIP Com/Connect Com RT3evo/4/5/6, Only for low resolution monitors |
| Peugeot a 10pin Monitor plug | Peugeot a 4pin Monitor plug |
 |  |
Limitations:
The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <5mA |
| Power | 0.3A@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 45 mm (W x H x D) |
Connections:
- Video-insertion: 10-pin HSD
- Power and CAN-bus: Plug & play
- Video-input (2x): RCA connector
- Rear-view camera-input: RCA connector
- Audio-switch: 2-channel RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Peugeot | 1007, RCZ, Partner 2, Expert 2, 807, 607, 508, 5008, 407, 308CC, 308, 307, 3008, 207 |
| Category | Video integration |
