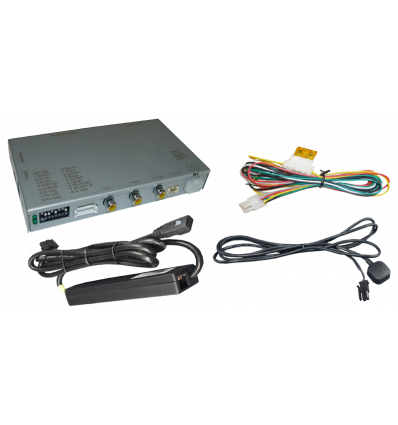

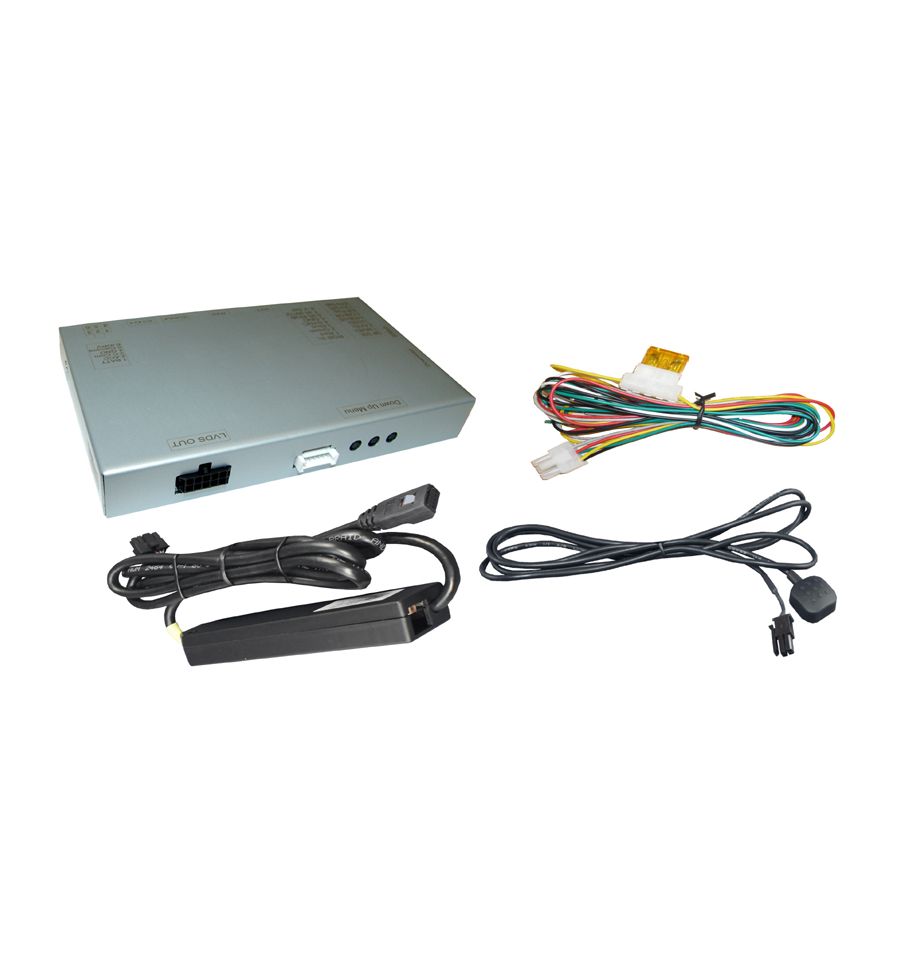

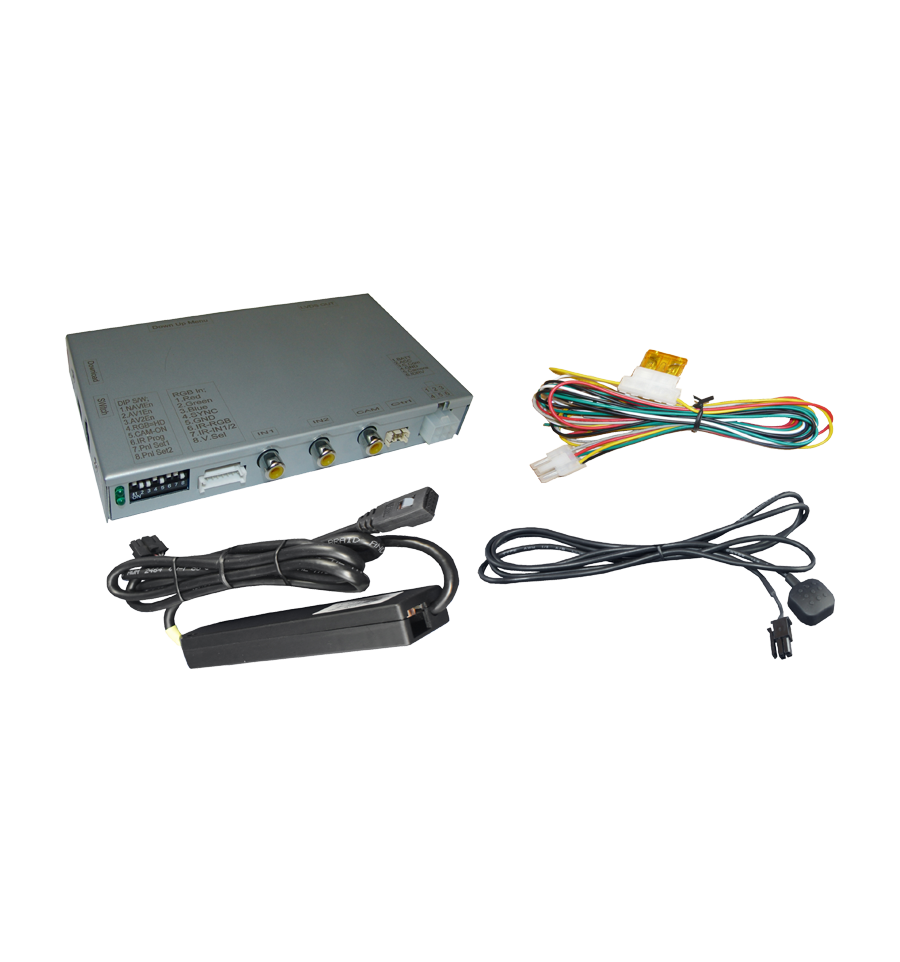

New Kit content with plug&play harness Expand

Video interface for Peugeot Wip Com - Nav 3D NG4

Peugeot Peugeot

CI-VL1-NG4-HU-PE

New

Video Interface for Peugeot Wip Com - Nav 3D - NG4 original navigation systems.

More details

€ 245,08

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video Interface for Peugeot WIP Com/Connect Com RT3(evo) - 4 - 5 - RNEG, WIP Com/Connect Com 3D NG4, WIP Nav+ / Connect Nav 10pin connector.

Watch any video source on your original screen

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the provided keypad.

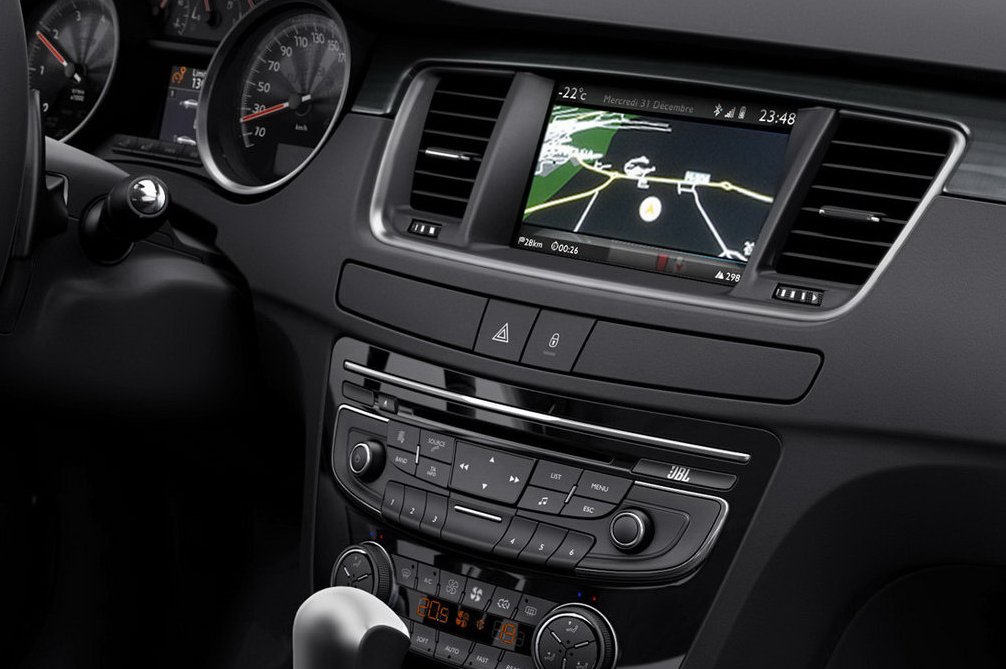

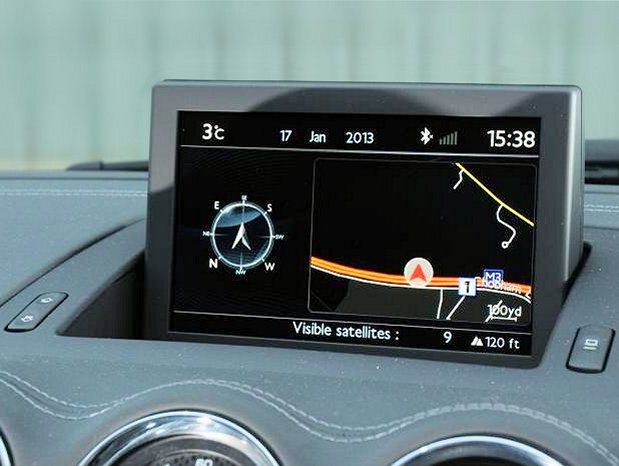

Peugeot 508 MRN Wip Nav  Peugeot - Citroen NG4




Product features:

  • Video-insertion for factory-infotainment monitors
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible






Compatibility:

WIP Com/Connect Com RT3(evo) - 4 - 5 - RNEG, WIP Com/Connect Com 3D NG4, WIP Nav+ / Connect Nav 10pin connector.

ModelRadio / Navigazion
 1007

WIP Com/Connect Com RT3 evo/4/5/6
RNEG, WIP Com/Connect Com 3D NG4
WIP Nav+/Connect Nav+

 207
 307
 308
 308cc
 3008 til about 08/2016
 407
 508 fino 08/2014
 5008
 607
 807
 Expert (2015)
 Partner
 RCZ



Peugeot a 10pin Monitor plug
Peugeot a 4pin Monitor plug
Connettore Display Peugeot a 10pinConnettore Display Peugeot a 4pin

Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.3A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box154 x 22 x 92 mm (W x H x D)
Dimensions CAN-box73 x 22 x 45 mm (W x H x D)



Connections:

  • Video-insertion: 10-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Peugeot1007, RCZ, Partner 2, Expert 2, 807, 607, 508, 5008, 407, 308CC, 308, 307, 3008, 207
CategoryVideo integration
