Peugeot PSA AIO video interface with rear and front camera input

Peugeot Peugeot

CI-RL4-PSAAIO-PE

New

Peugeot PSA AIO with 10.25inch monitor video interface with rear and front camera input

More details

€ 359,00

tax incl.

Peugeot PSA AIO with 10.25inch monitor video interface with rear and front camera input


This interface allows you to integrate a  rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).


Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera CVBS video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10/15/20 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs NTSC compatible




 Compatibility:

ModelloRadio / Navigazione
  208 II 06/2019-

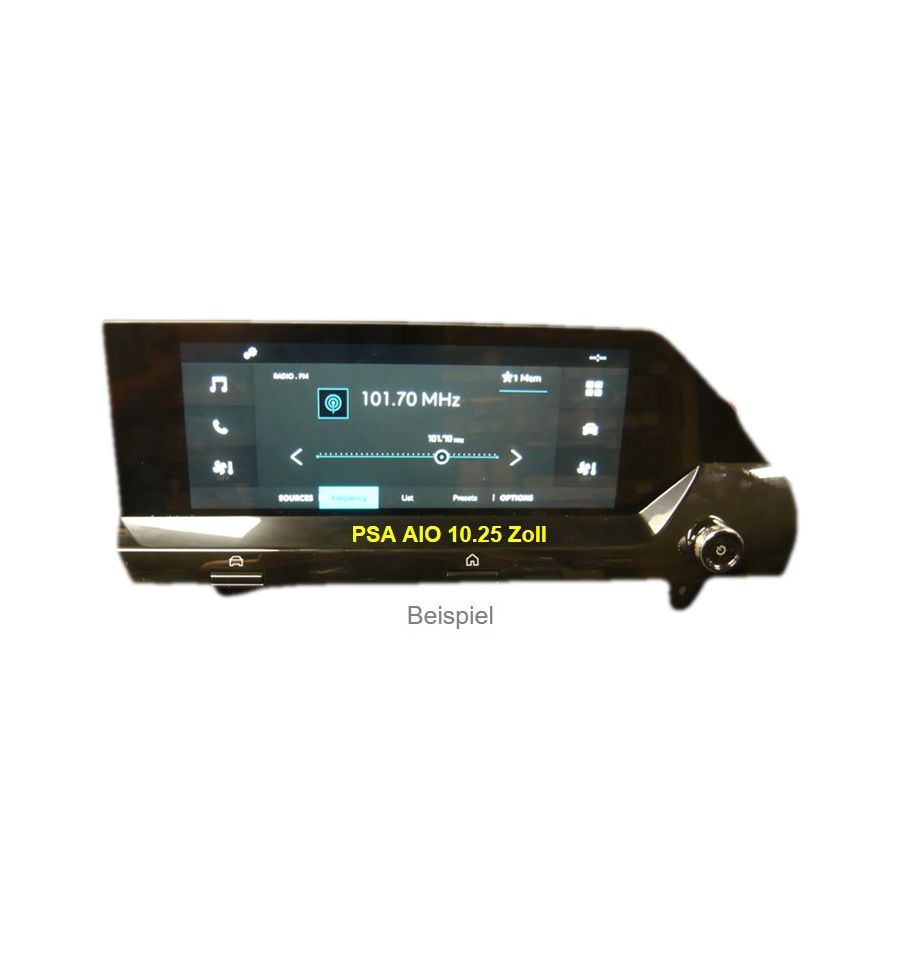

PSA AIO radio/nav by Bosch 10.25inch ALL-IN-ONE head-unit


Not compatible with CRONY2 from Clarion.

  2008 II 11/2019 - 04/2023 (solo NAC)
  2008 II 05/2023- (IVI)
  308 III 09/2021-
  3008 II 05/2021-03/2024
  3008 III 04/2024-
  408 III 11/2022-
  508 II 10/2018-
  5008 II 10/2020-
  Rifter 03/2024-
  Traveller 04/2024-



Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Inserted video pictureTo ensure a better picture quality, the inserted video picture is displayed in a reduced format on the monitor, i.e. it does not cover the entire monitor size.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front cameraThe front camera will automatically be switched for 10, 15 or 20 seconds (adhustable) after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Factory PDC displayThe factory PDC graphic display does not work in all vehicles.
Video input signalNTSC video sources compatible only.



Specifications:

Operating voltage12V DC (7~25V)
Standby current5mA
Current consumption115mA
Video input0.7~1V
Video input formatsNTSC
Operating temperature-40°C to +85°C
Dimensions interface box116 x 25 x 89mm (W x H x D)
Dimensions daughter PCB130 x 8 x 81mm (W x H x D)

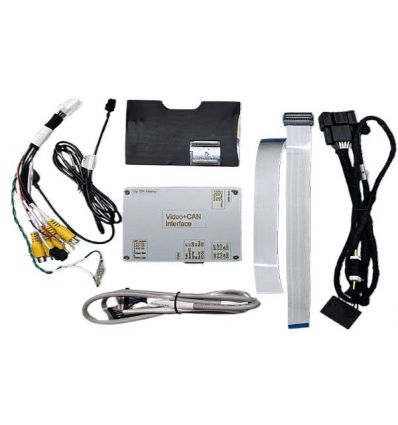

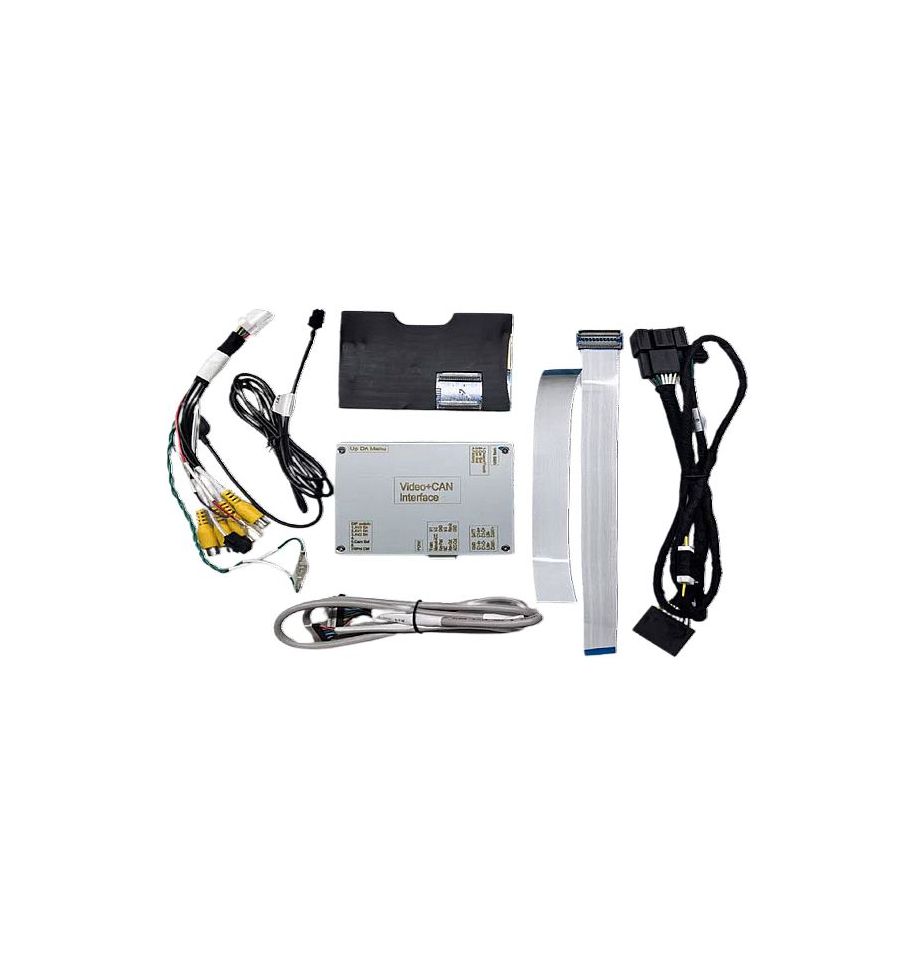

Connectors

  • Video-insertion: Ribbon cable
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
