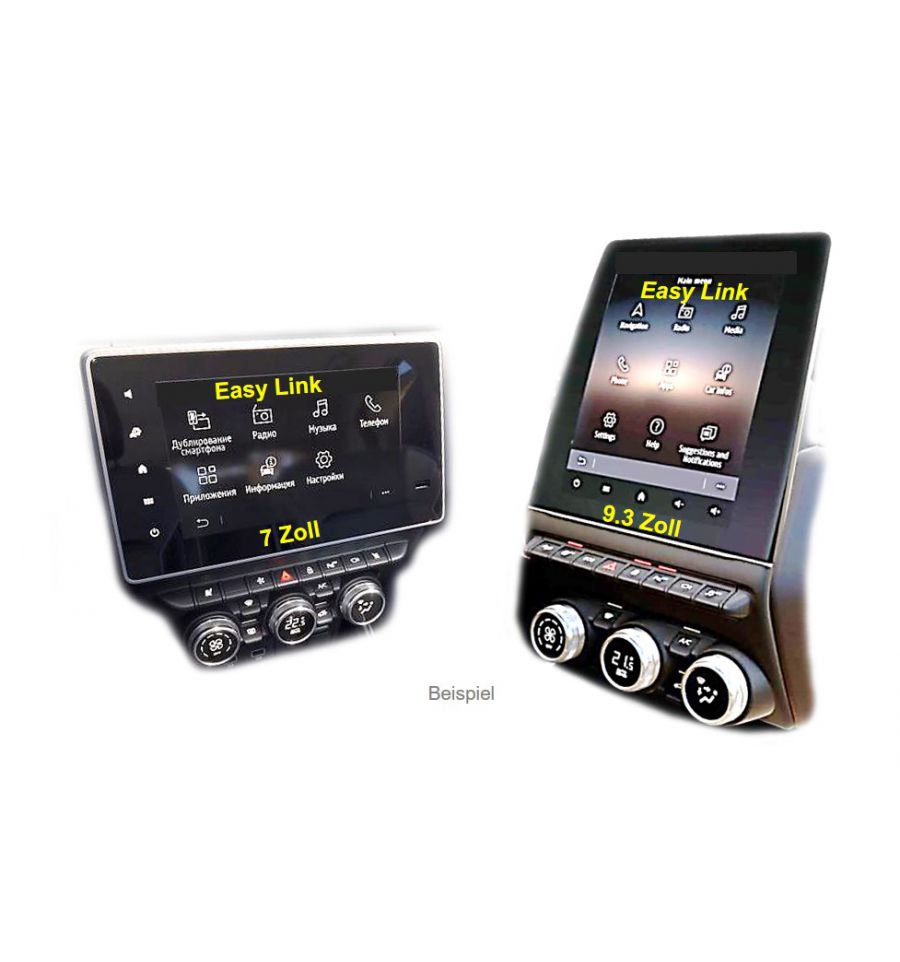

RVC Interface for rear view and front camera for Renault Easy Link 7" and 9.3" monitors
shipped in 24 h
Valutazione: Scrivi per primo una recensione!

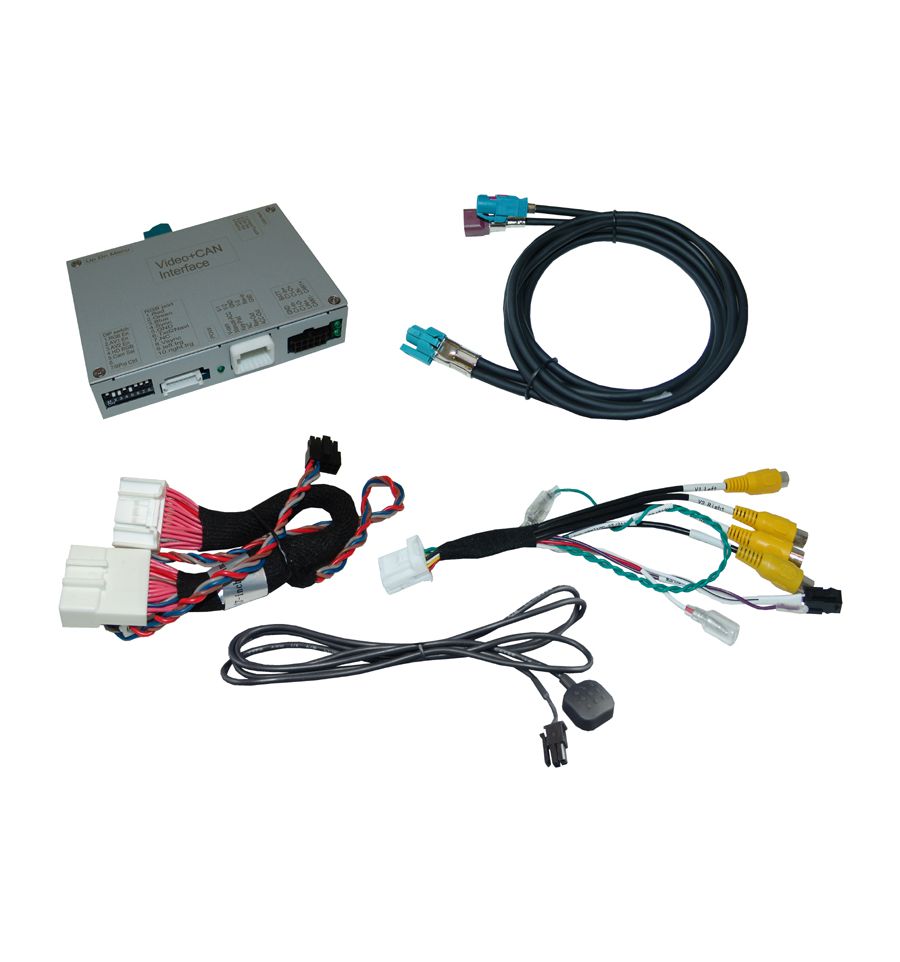

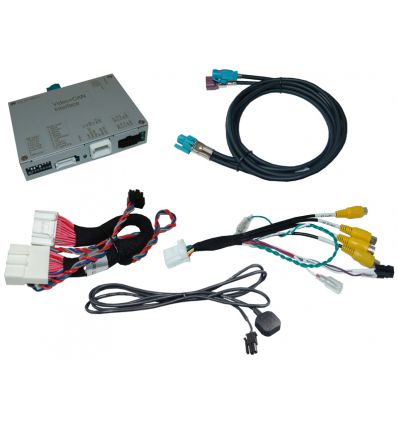

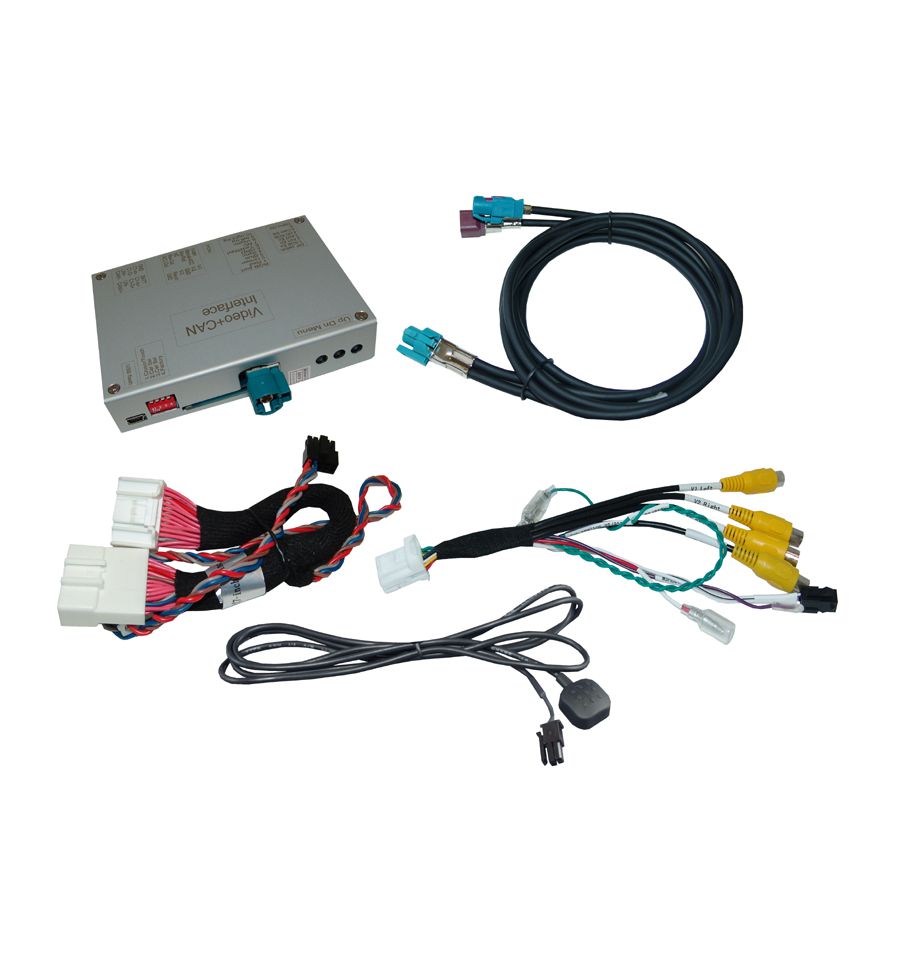

RVC Interface for rear view and front camera for Renault Easy Link 7" and 9.3" monitors
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-insertion for factory infotainment systems
- 1 Rear-view camera CVBS video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Model | System |
| Captur from 2020 | Renault Easy Link con monitor da 7" e 9.3" |
| Clio V from 2020 | |
| Espace from 2020 | |
| Talisman from 2020 | |
| Twingo from 2020 | |
| ZOE from 2020 |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 2.8mA |
| Power | 300mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 105 mm (W x H x D) |
Connectors
- Video-insertion: 4-pin HSD or double 4-pin HSD
- Power and CAN-bus: Plug & play
- Video-input (2x): RCA connector
- Rear-view and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
