New Video interface with rear camera input for Seat MIB2 - MIB3 High 9.2 inch Expand

Video interface with rear camera input for Seat MIB2 - MIB3 High 9.2 inch

Seat Seat

CI-RL4-MIB92-SE

New

Video interface with rear camera input for Seat MIB2 - MIB3 High 9.2 inch

More details

shipped in 24 h

€ 294,26

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

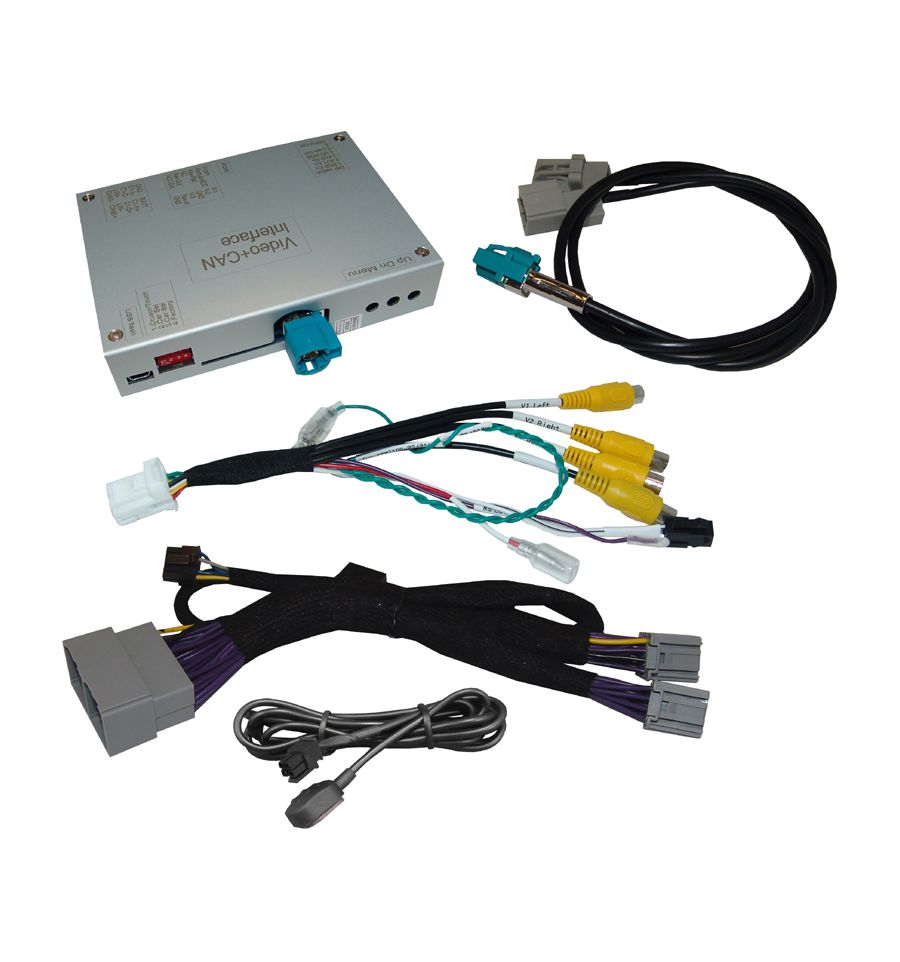

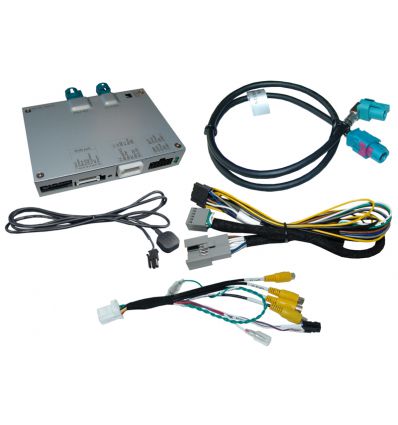

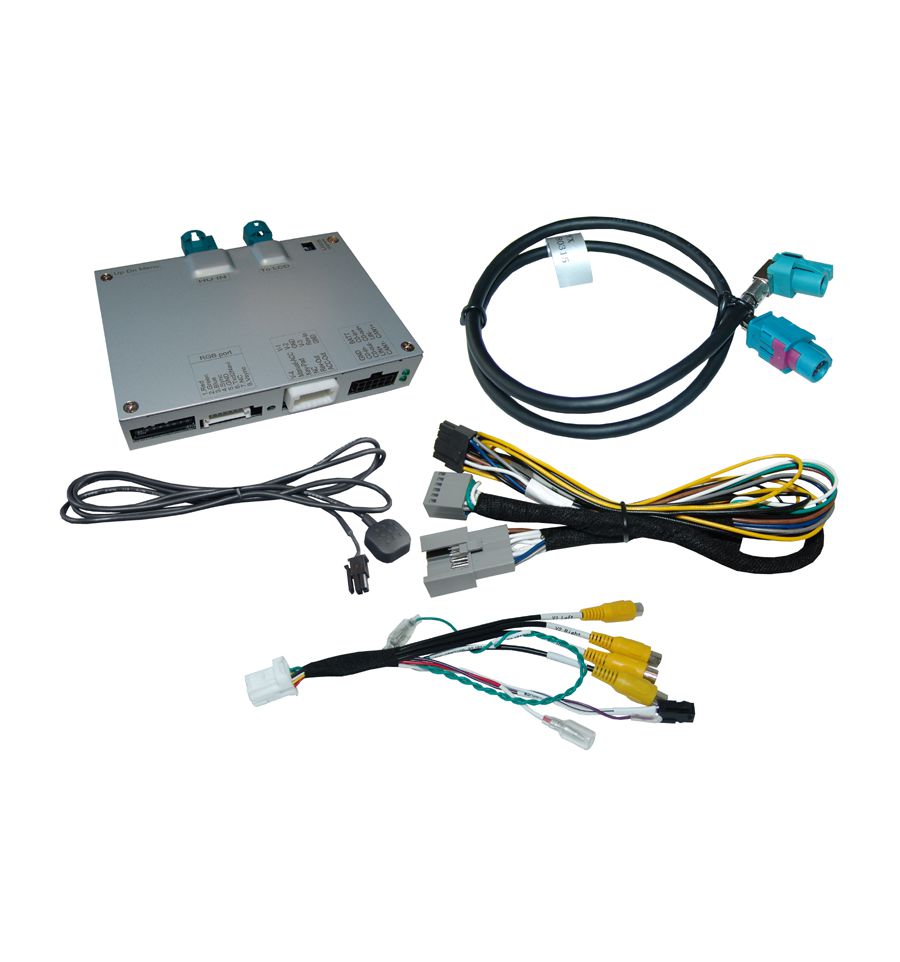

Video interface with rear camera input for Seat MIB2 - MIB3 High 9.2 inch

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer


Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC - PAL compatible




 Compatibility:

ModelRadio / Navigation
  Arona (KJ7) MY2022-

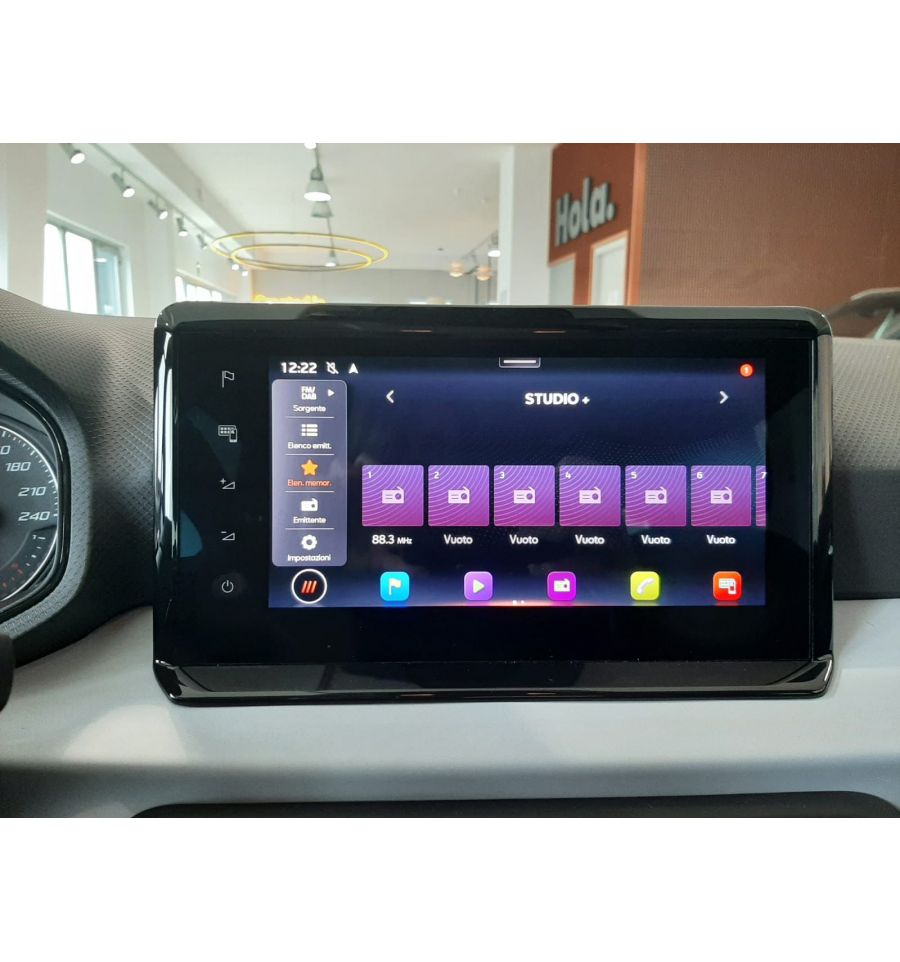

MIB2 - MIB3 High - Media System Plus 9.2" monitor.
  Ateca (KH7) MY2021-
  Ibiza (KJ) MY2022-



Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
In case that 2 AV source shall be connected, a desired audio switching will require additional electronic.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.


The front camera will automatically be switched for 5 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.

If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported.




Specifications:

BATT/ACC range7V – 25V
Stand-by power drain7mA
Power150mA @12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75Ohm impedance
Temperature range-40°C to +85°C
Dimensions116 x 25 x 103 mm (W x H x D)




Connectors

  • Video-insertion: 4pin HSD
  • Power and CAN-bus: open cable ends (Power) and Plug & Play (Quadlock insert)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CategoryRear View Camera Interfaces, Video integration
