VOLKSWAGEN CI-VS3-VN25-VW Rear-view camera license-plate light with guide-lines

Reference CI-VS3-VN25-VW

Condition: New

Vehicle specific license plate light with camera, with switchable guide lines, for replacement of the factory light glass for Caddy3, Golf5 Plus, Jetta3, Multivan T5, Passat 3B, Passat B6 , Polo Cross and Touran

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

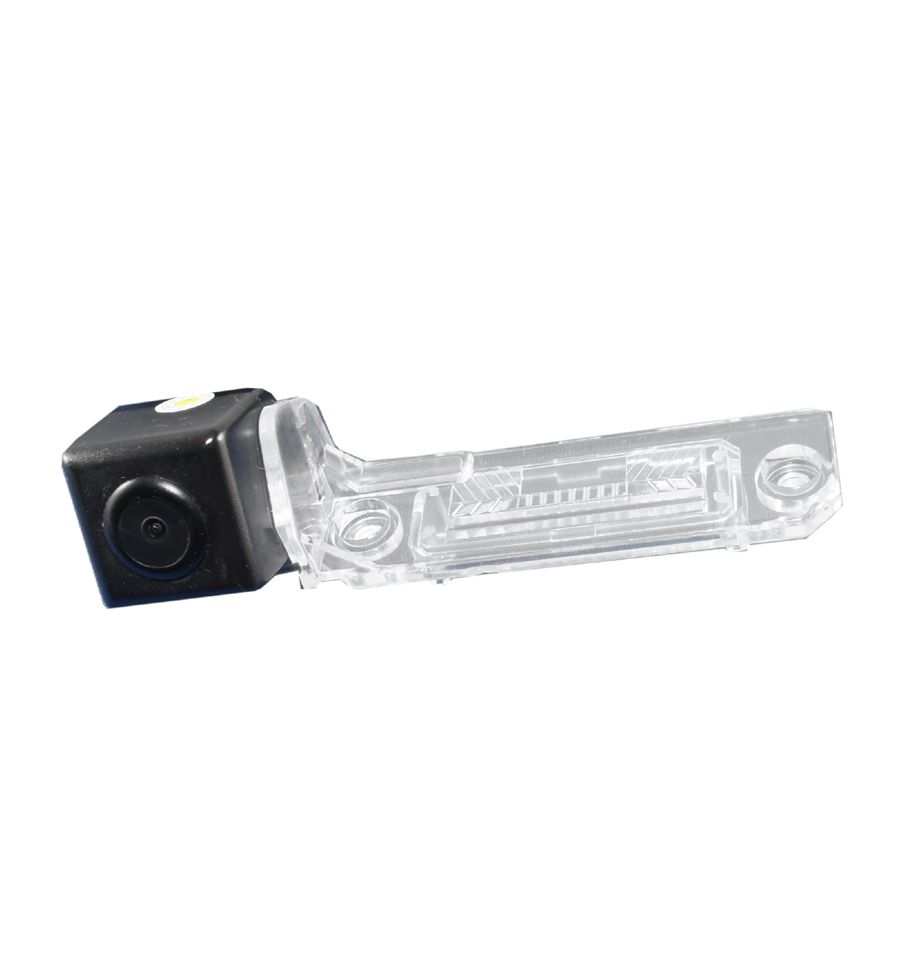

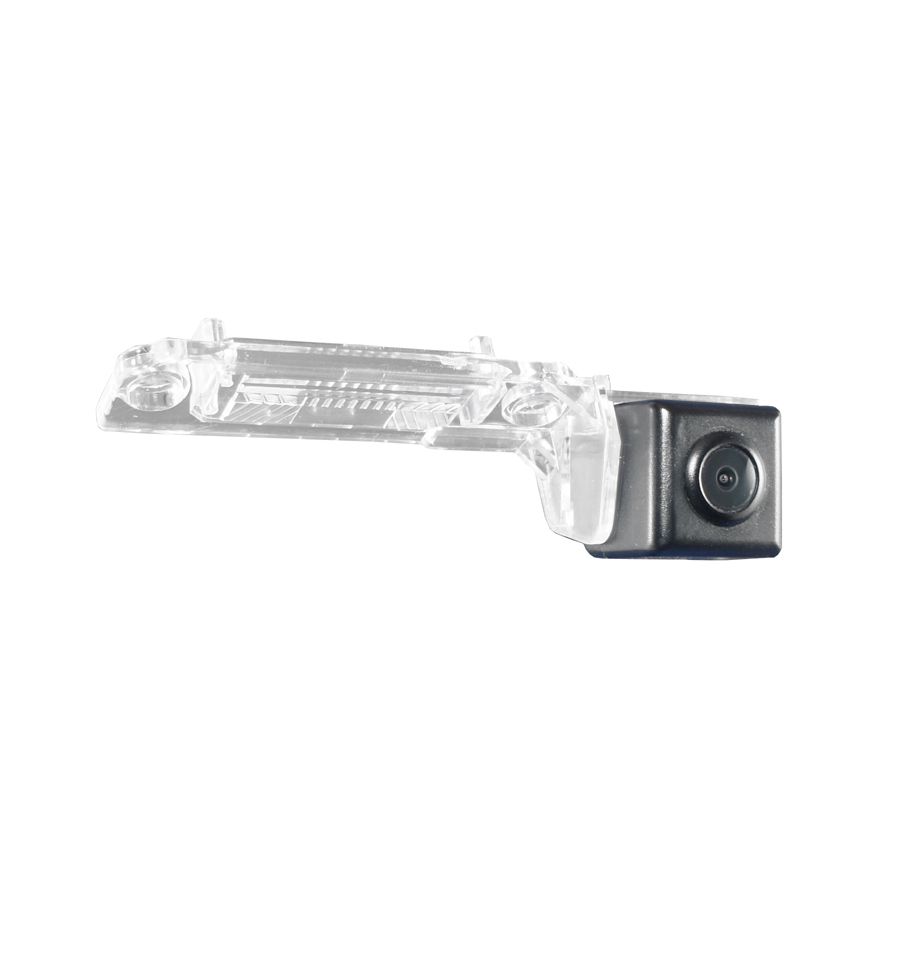

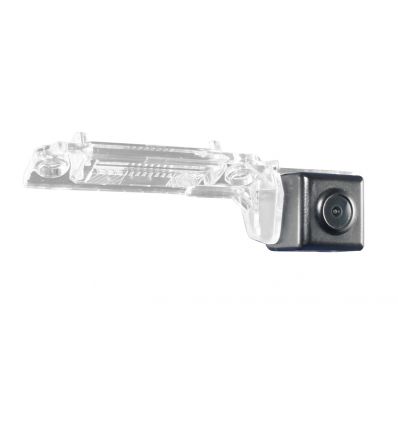

Mini-camera with vehicle specific license plate light glass.
Simple installation due to replacement of the factory license plate light glass.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.

Compatible with:

Volkswagen Caddy3 2004-2008
Volkswagen Golf5 Plus 2005-2007
Volkswagen Jetta3 2003-2010
Volkswagen Multivan T5 2003-2015
Volkswagen Passat 3B 2001-2002
Volkswagen Passat B6 (3C) 2005-2010
Volkswagen Polo Cross 2009
Touran 2003-2010

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

Mini-camera with vehicle-specific number-plate illumination-glass
Water resistance IP69K
Sensor-type 1/3inch CMOS NTSC colour
Resolution 800 TV lines
Sensitivity 0.01Lux F1.2
Angle horizontal 120°, vertical 100°, diagonal 170°
Mirrored image (fixed)
Guide lines, optionally disengageable
Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
Extension cable 4pin 3V, 8m with wire for signal throughput
System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:

Overall L/W/D 100 x 34 x 40 mm
Cover glass L/W/D 72 x 22 x 11 mm
Build-in hole L/W 46 x 16 mm
Hole spacing 59 mm

BATT/ACCrange	6V - 26V
Power	0.05A 12V
Power consumption	0.6W
Weight incl. cable	195g
Operating temperature	-30°C to +70°C

Volkswagen	Caddy, Golf Plus, Golf V (1K), Jetta, Multivan, Passat, Polo 5 6R, Touran
Category	Cameras RVC
