New VW Rear-view camera incl holder exchange rear door opener handle with guide-lines for Volkswagen Expand

VW Rear-view camera incl holder exchange rear door opener handle with guide-lines for Volkswagen

Volkswagen Volkswagen

CI-VSC-E-AU13H-VW

New

VW Rear-view camera incl holder exchange rear door opener handle with guide-lines for Volkswagen

More details

€ 149,92

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

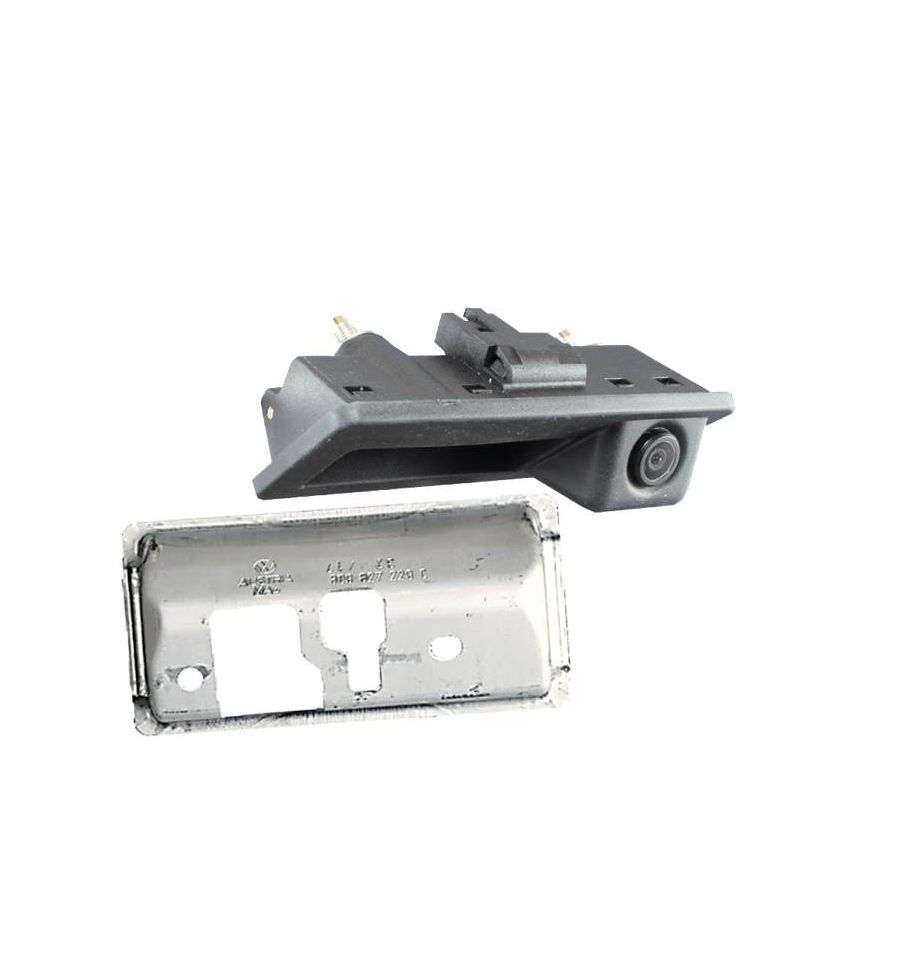

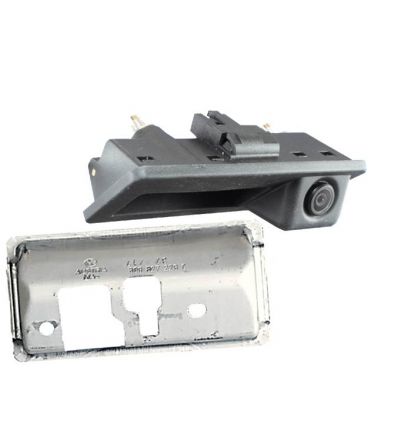

Vehicle-specific exchange rear door opener handle with integrated camera incl. holder and switchable guide-lines.

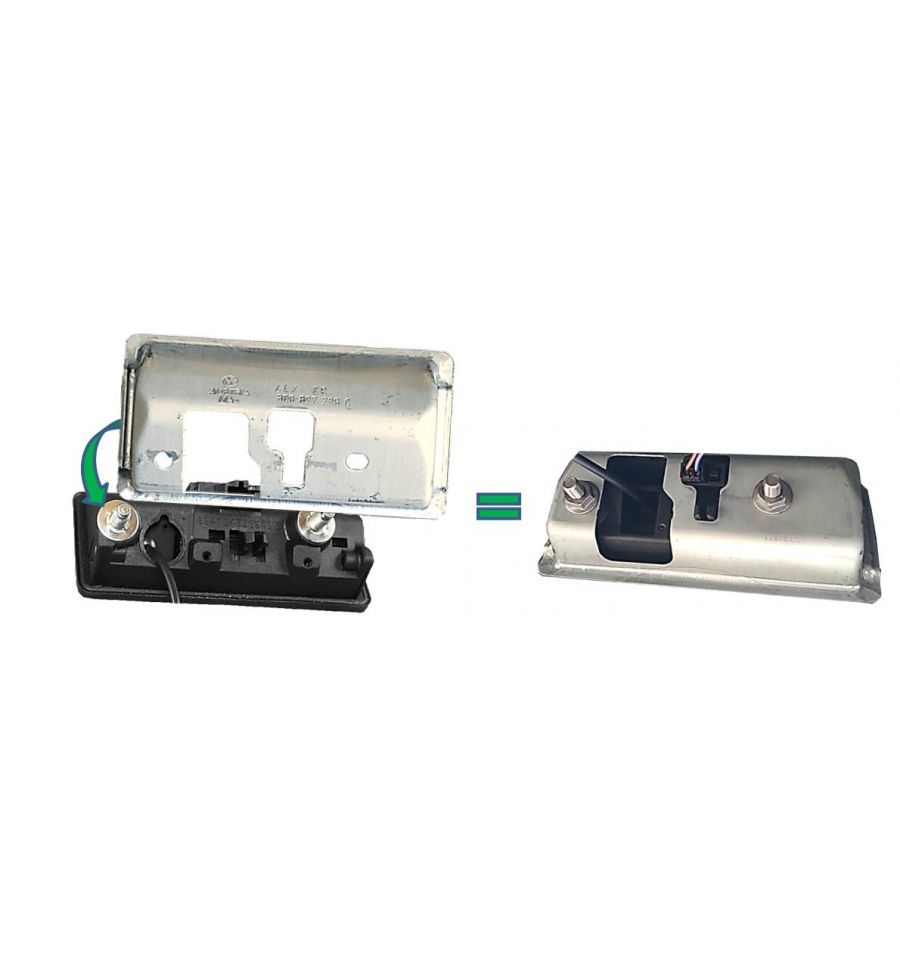

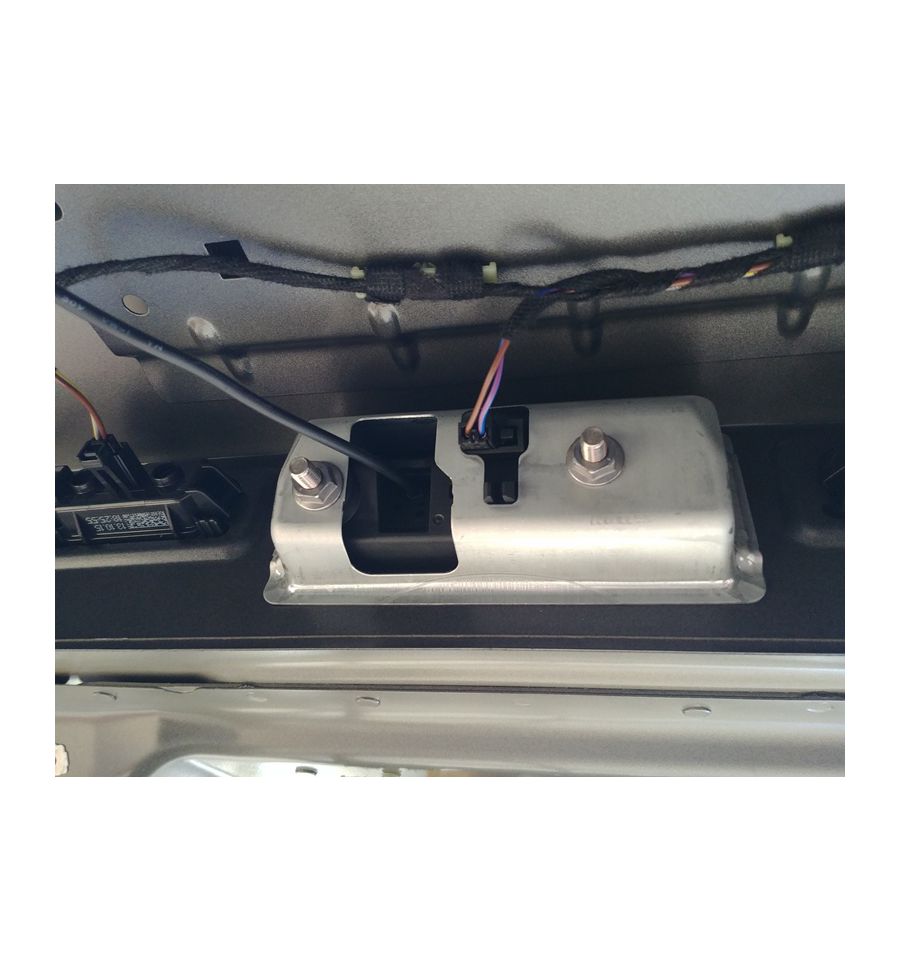

Easy assembling by replacing the factory rear door opener handle.

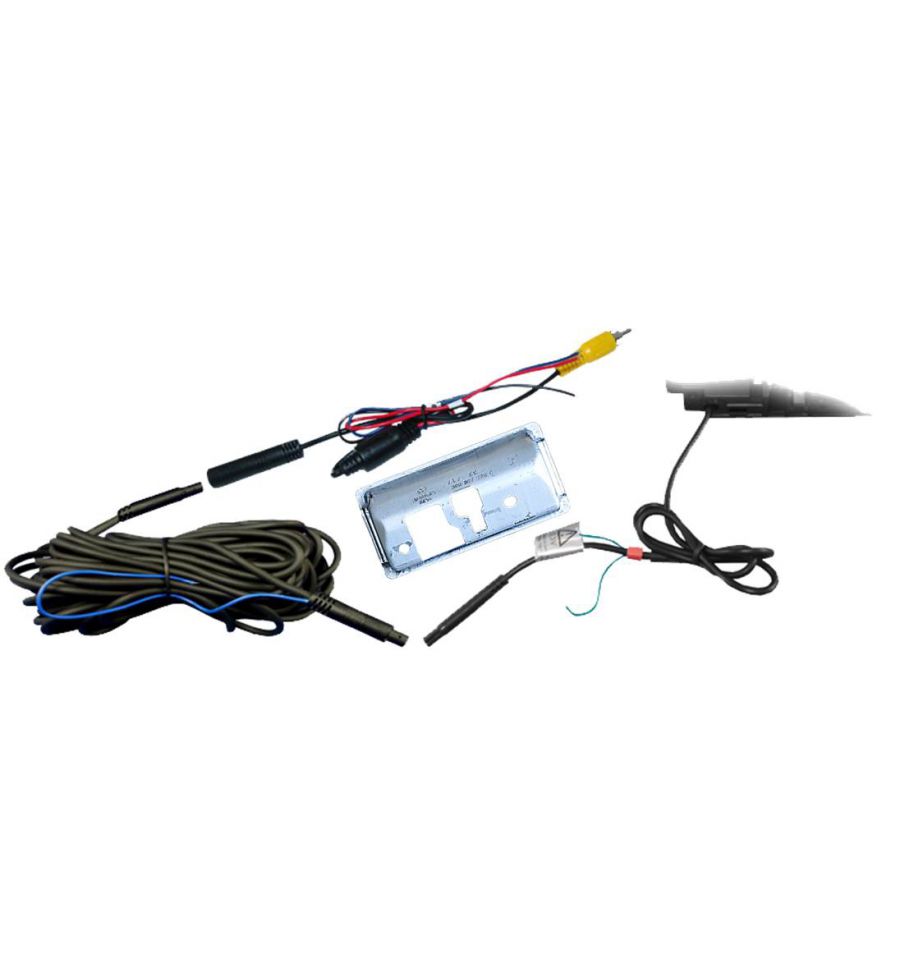

Professional connector cable with enough length and automotive plug connection.
Easy to lay the cable due to a small cable diameter.
Additional wire for signal transfer, e.g. power supply or rear-view camera signal.


Compatible with:
  • Caddy (2K) Facelift 2016-
  • Teramont/Atlas 2018-
  • Tiguan II (AD1) 2016-
  • Tiguan II Allspace (AD1) 2018-
  • Touran II (5T) 2016-

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:
  • Sensor type 1/3inch CMOS PC3089
  • Picture format NTSC
  • Resolution 720 x 480 Pixel
  • Min illumination 0.4 Lux
  • Angle horizontal 130°, vertical 90°, diagonal 170°
  • Mirrored image (fixed)
  • Parking guide lines, optional switchable
  • System cable with throughput, e.g. for reverse signal
  • Protection class IP68
  • Colour of rear door opener handle and camera black
  • Total cable length 10m
  • Video connector RCA male connector
  • System connector camera 4pin BM
  • Diameter camera connector 5mm
Dimensions:
  • Overall L/W/D  111 x 49 x 58 mm
  • Build in hole L/W  101x42 mm


Operating voltage+12V DC (6V~16V)
Current consumption40mA
Power consumption0.5W
Weight incl. cable approx290g
Operating temperature range-20°C to +70°C
VolkswagenCaddy (2K) facelift, Teramont/Atlas, Tiguan II (AD1), Tiguan II Allspace (AD1), Touran II (5T)
CategoryCameras RVC
