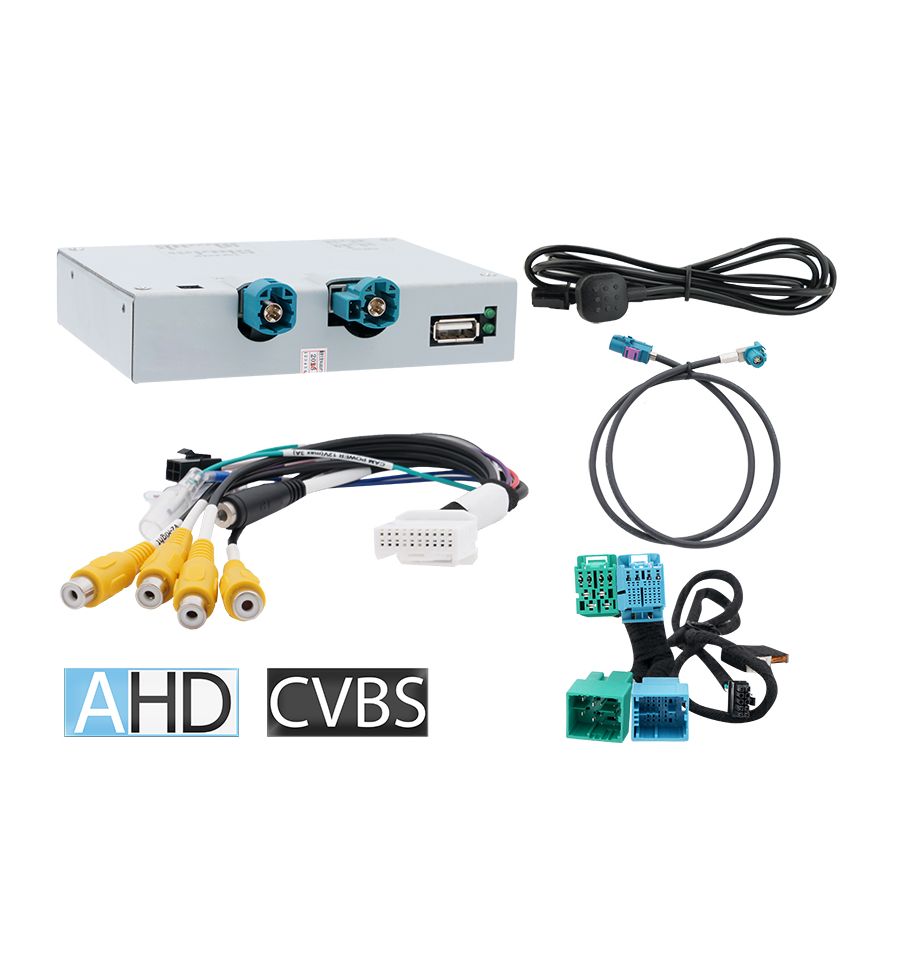

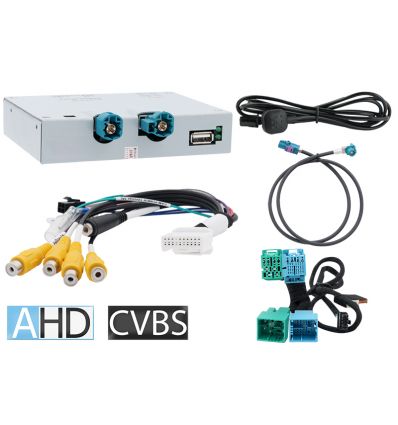

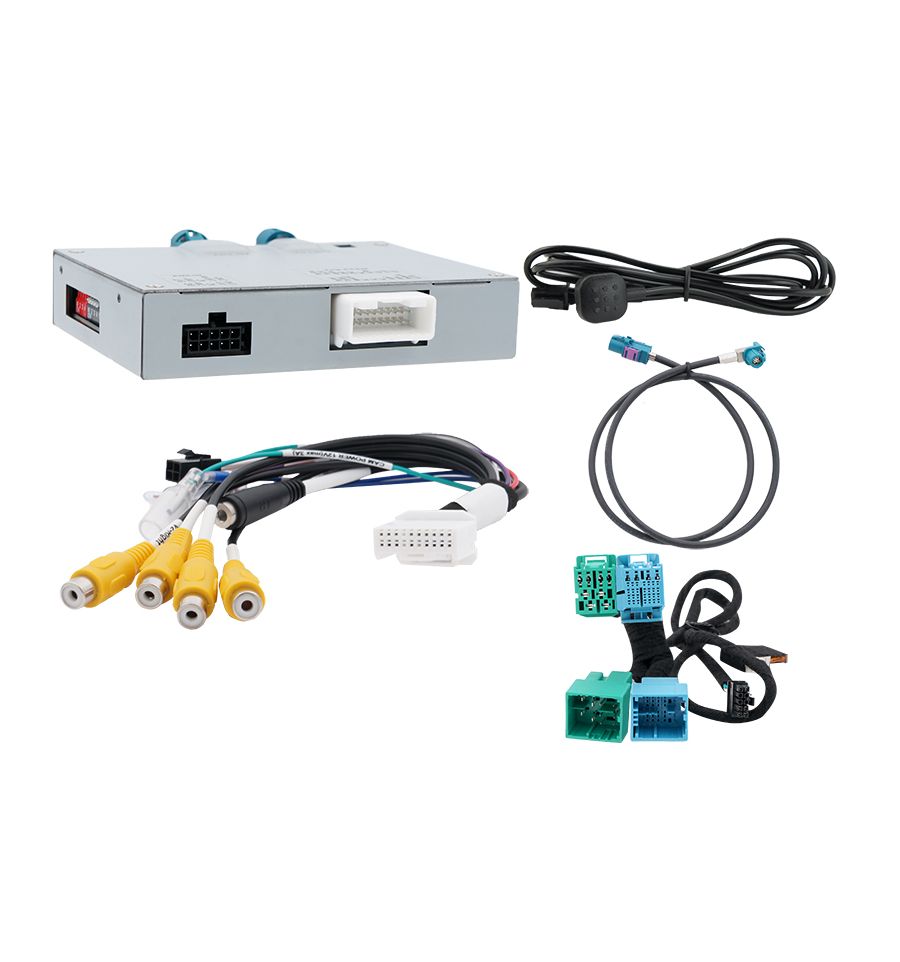

Fiat Uconnect (vers. 5) AHD video interface for 10 or 10.25inch tablet monitor with rear and front camera inputs
CI-HDA-UCON10-FI
New
Fiat Uconnect (vers. 5) AHD/CVBS video interface for 10 or 10.25inch tablet monitor with rear and front camera inputs
Fiat Uconnect (vers. 5) AHD/CVBS video interface for 10 or 10.25inch tablet monitor with rear and front camera inputs
The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features:
- Video-insertion for factory infotainment systems
- 1 AHD/CVBS Rear-view camera video-input
- 1 AHD/CVBS front camera video-input
- 2 AHD/CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
- Video-in-motion (ONLY for connected video-sources)
- Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Model | Navigation |
|---|---|
| 500e since 11/2020 No CAN-bus support. External 12V analogue S-contact/ACC and R-gear signal required. | Uconnect R1 Low Mitsubishi head-unit with separate 7inch tablet monitor |
| 500, 500e since 11/2020, Ducato3 (series 8) since model year 2021, Tipo (356) since model year 2023 | Uconnect R1 EXT or R1 INT Harman head-unit with separate 10inch or 10.25inch ultra-wide tablet monitor |
Limitations:
- The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
- Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.4A@12V |
| Video input | 0.5V˜2V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 25 x 104 mm (W x H x D) |
Connections:
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play
- Video-input (2x): RCA connector
- Rear and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
