Video interface for Fiat Talento Touch-MediaNav with rear camera input
shipped in 24 h
Video interface for Fiat Talento Touch-MediaNav with rear camera input
This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.
The multimedia interface has 2 video inputs, a rear camera input The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the provided switch to change video source
Product features:
- Video-insertion for factory-infotainment monitors
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Rear-view camera CVBS video-input
- Automatic switching to rear-view camera input on engagement of reverse gear
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible
Compatibility:
| Model | Radio / Navigation |

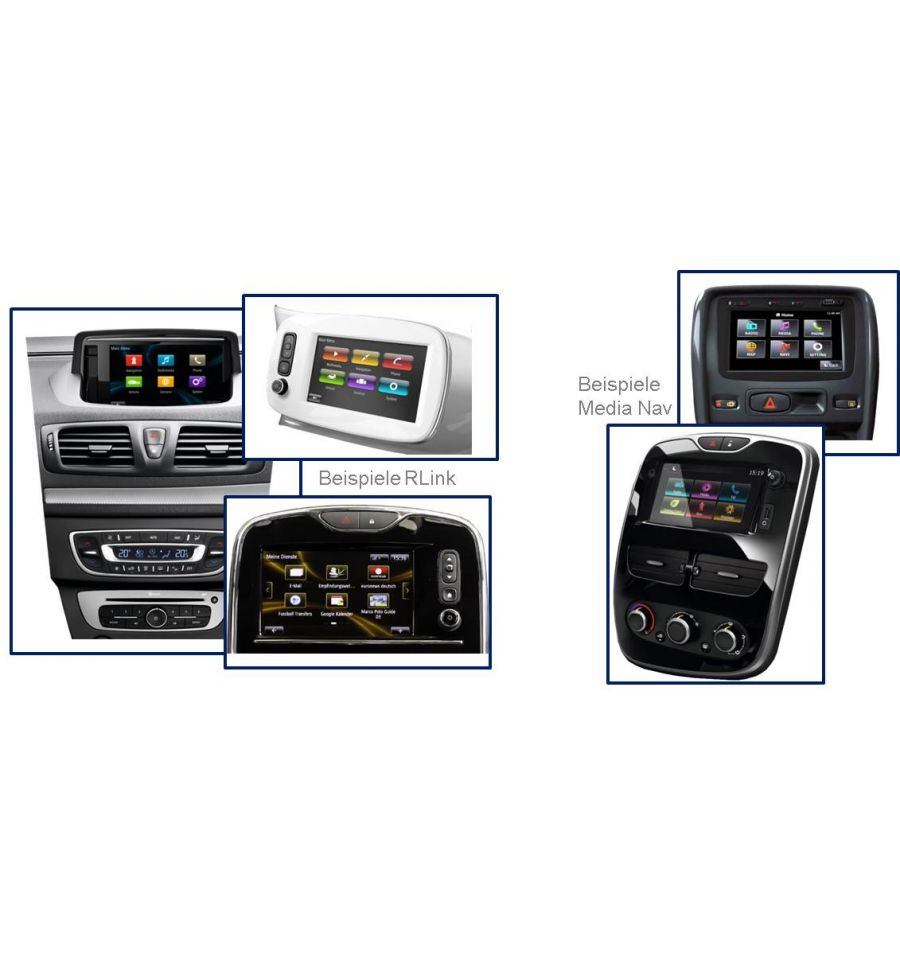

| Talento 2016 > | MediaNav |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For audio insertion factory-audio-AUX-input or a FM-modulator is required. |
| Factory rear-view camera | Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <25mA |
| Power | 200mA |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113 x 22 x 96mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 45mm (W x H x D) |

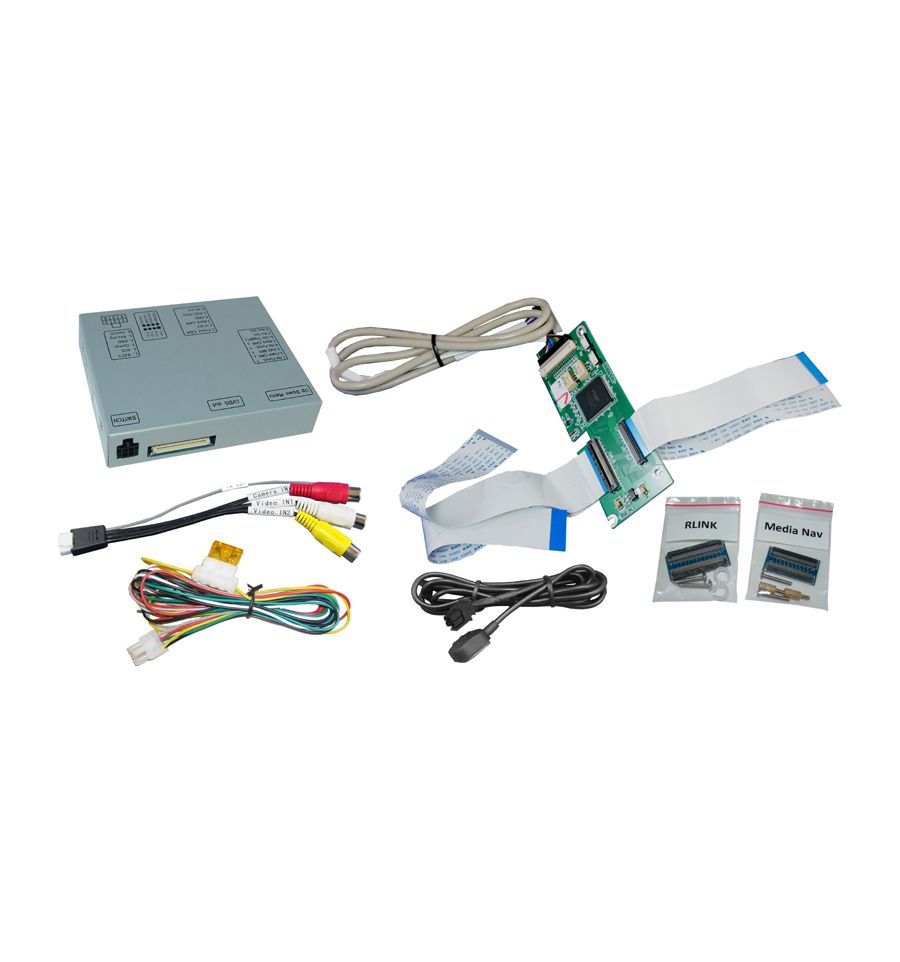

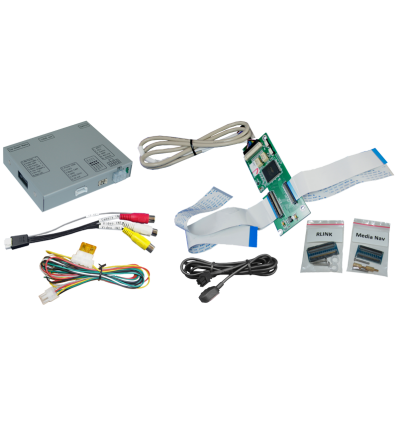

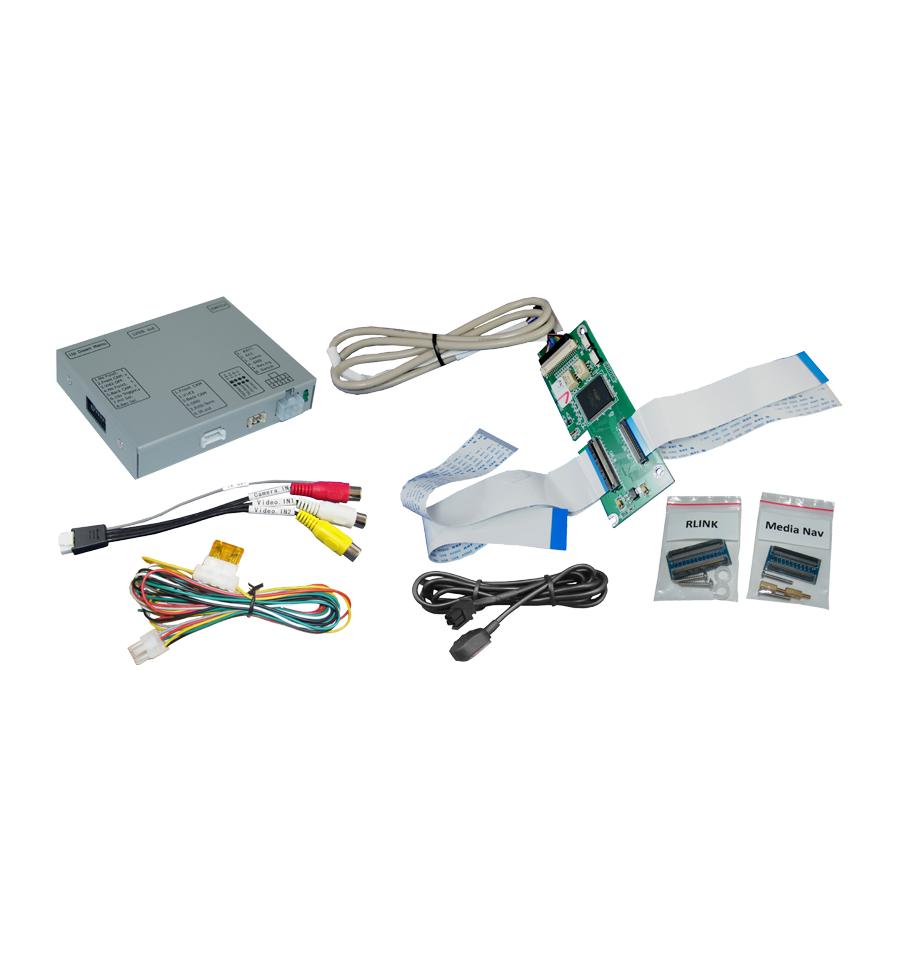

Connections:
- Video-insertion: ribbon-cable
- Power: open cable ends
- Video-input (2x): female RCA connector
- Rear-view camera-input: female RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Fiat | Talento |
| Category | Rear View Camera Interfaces, Video integration |
