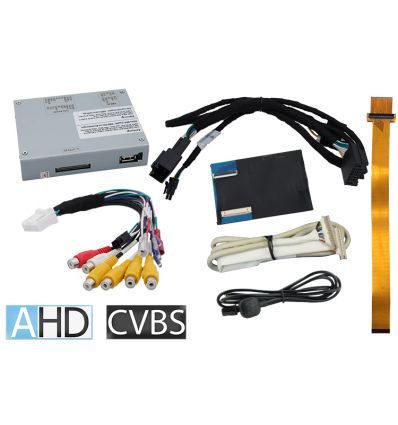

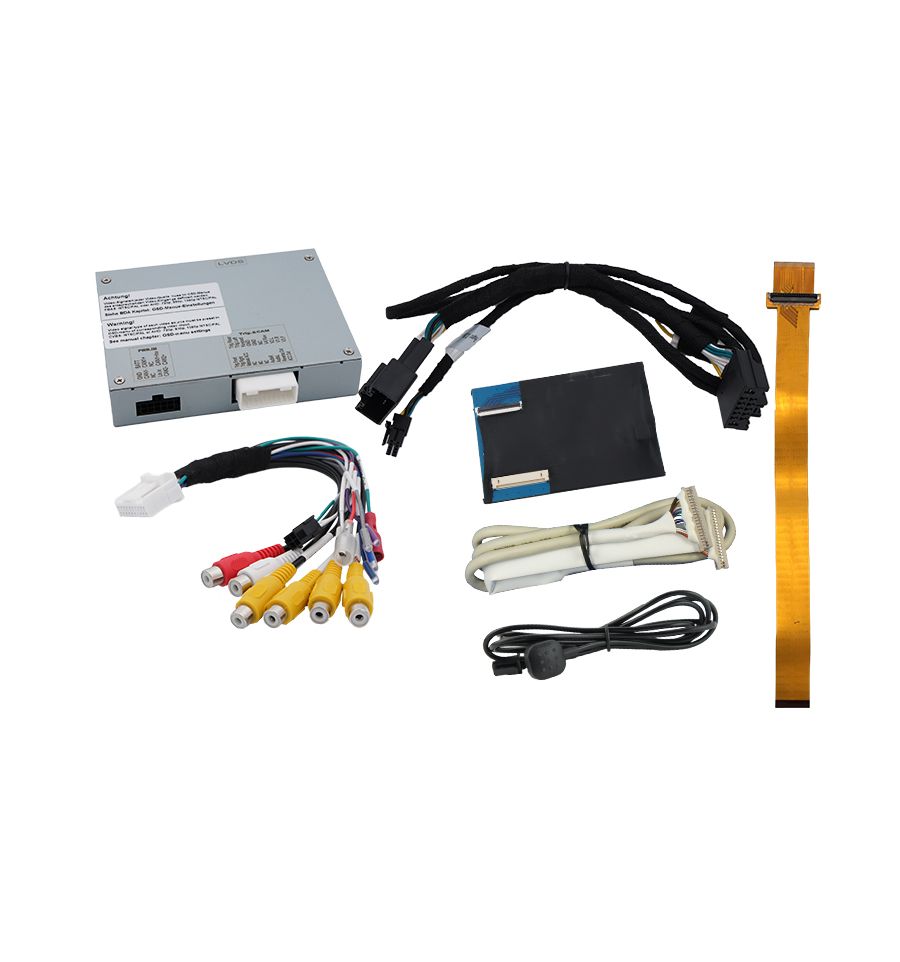

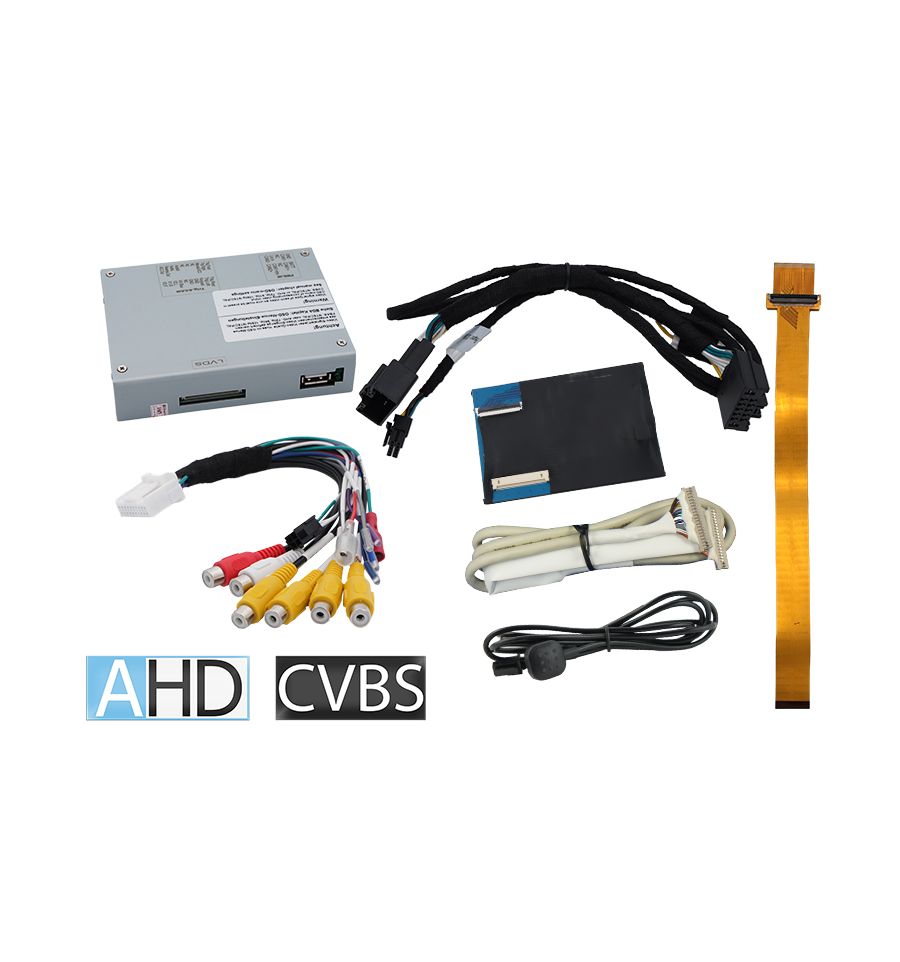

Fiat PSA AIO with 10.25inch touch monitor AHD/CVBS video interface with rear and front camera input
Fiat PSA AIO with 10.25inch touch monitor AHD/CVBS video interface with rear and front camera input
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-insertion for factory infotainment systems
- 1 Rear-view camera AHD/CVBS video-input
- 1 AHD/CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Modello | Radio / Navigazione |

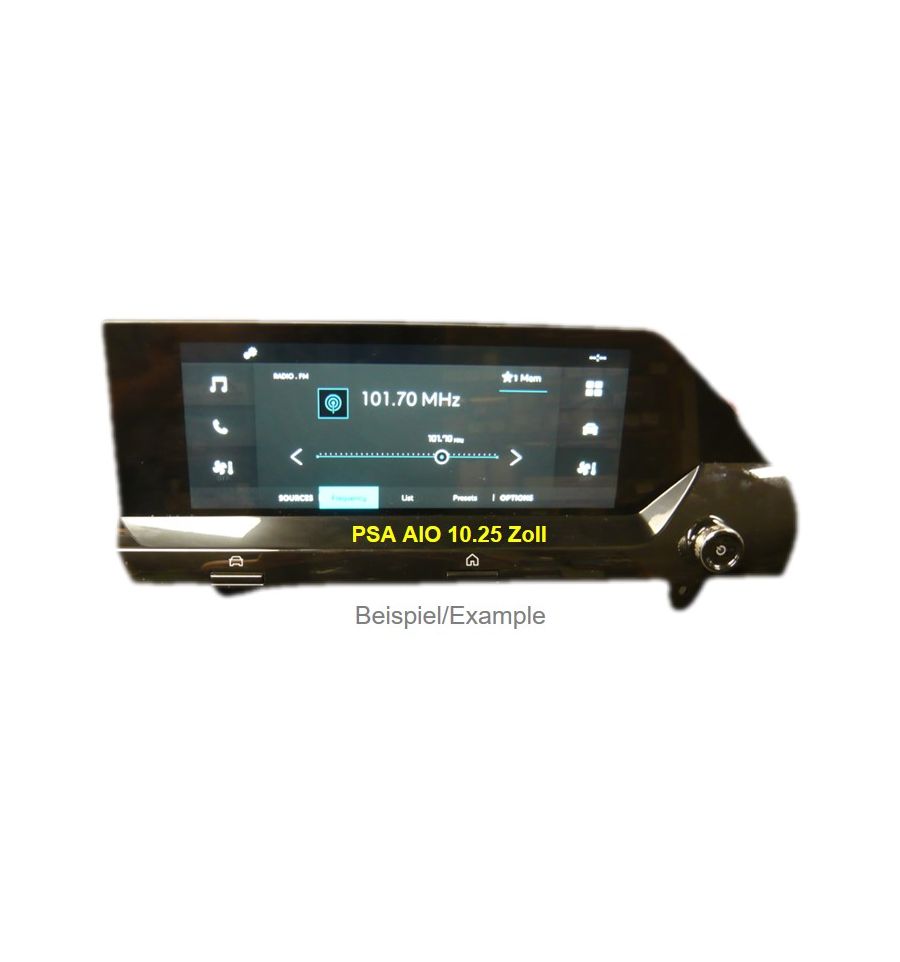

| Doblo3 facelift MY2024- | PSA AIO radio/nav by Bosch 10.25inch ALL-IN-ONE head-unit
|
| Scudo3 facelift MY2024- |
Limitations:
| CAN-bus compatibility | CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter. |
| Video only | Interface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. FM-Modulator) must be used. For HDMI source, the audio is output via an analogue audio output (3.5mm jack socket). |
| Inserted video picture | To ensure a better picture quality, the inserted video picture is displayed in a reduced format on the monitor, i.e. it does not cover the entire monitor size. |
| Factory rear-view camera | Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required. |
| After market front camera | Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad. |
| Guide lines and PDC | If the vehicle CAN bus is not fully compatible with the interface or if an analogue connection is used, the movable guide lines for the rear-view camera and the optical PDC display cannot be used. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 2.8mA |
| Power | 300mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 105 mm (W x H x D) |
Connectors
- Video-insertion: 4-pin HSD or double 4-pin HSD
- Power and CAN-bus
- Video-input (2x): RCA connector
- Rear-view and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
