Audi MMI3G Bluetooth Streaming interface with AUX-in (MOST)

CI-JBTAUX-3G module is controlled by factory mounted multimedia system Audi MMI3G. This device uses 6-disc CD changer interface, extends MMI network of ability to connect Line Input and streaming audio from mobile devices by Bluetooh interface. This device support basic functions to control playback (PLAY,PAUSE,NEXT,PREV,FF,REW) and can display a title, album and artist name of current playing song.

Main features:

  • Bluetooth streaming support
  • Analog AUX-IN audio input
  • Full integration to MMI3G optic fiber bus MOST
  • Support directly from AUDI MMI3G (not MMI3G+)
  • Possibility software update
  • Possibility to select track from MMI control panel
  • Track informations (TAG) displayed on MMI screen
  • Works on CD-changer platform
  • Plug & Play installation

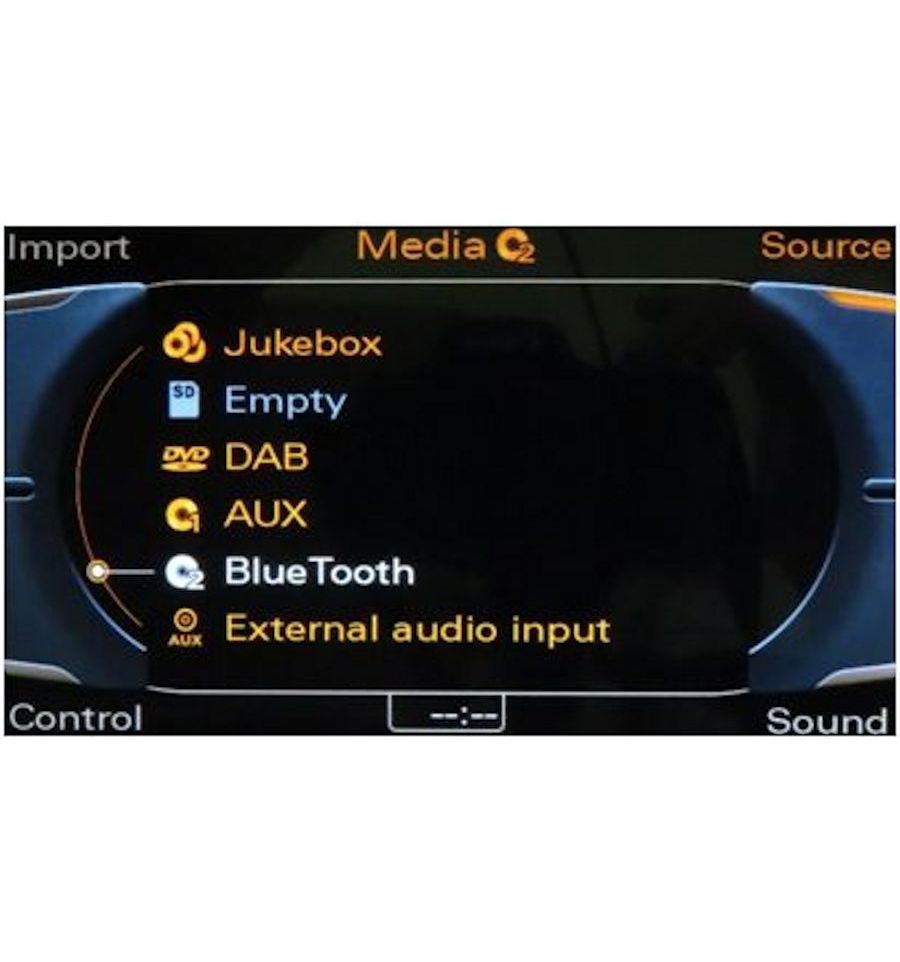

New MEDIA DISC1-AUX and DISC2-Bluetooth menu:

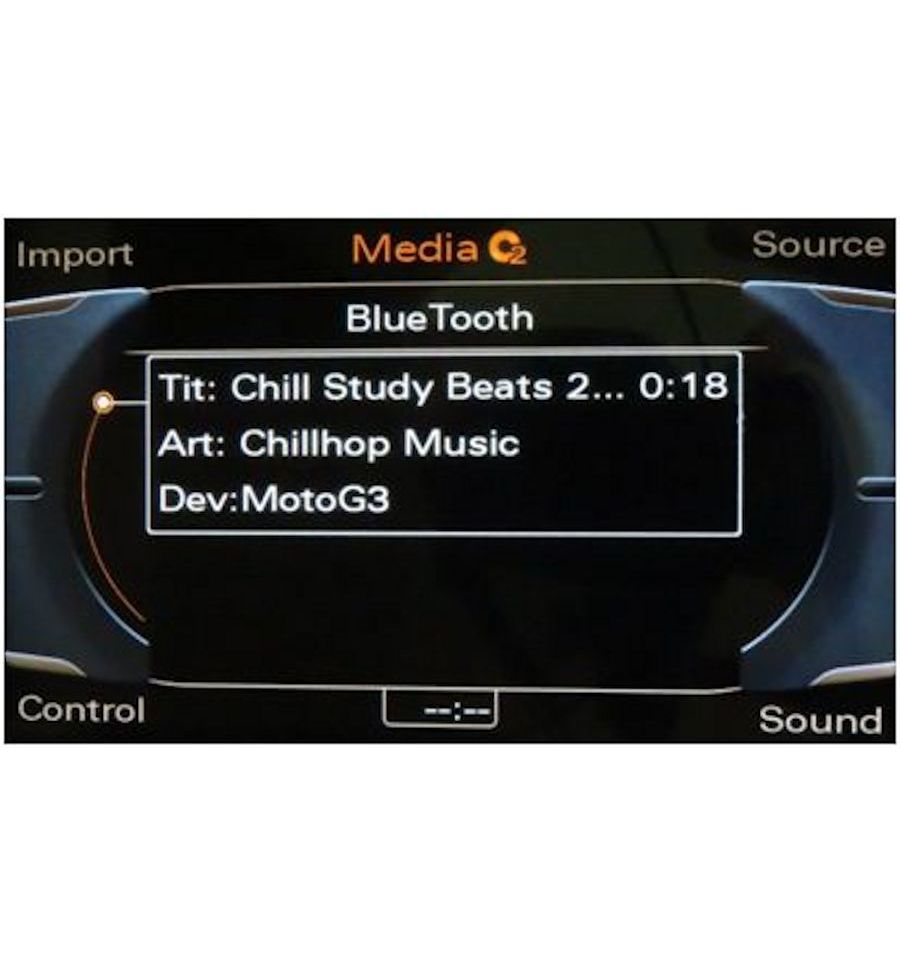

Menu MEDIA Bluetooth with tag ID info:

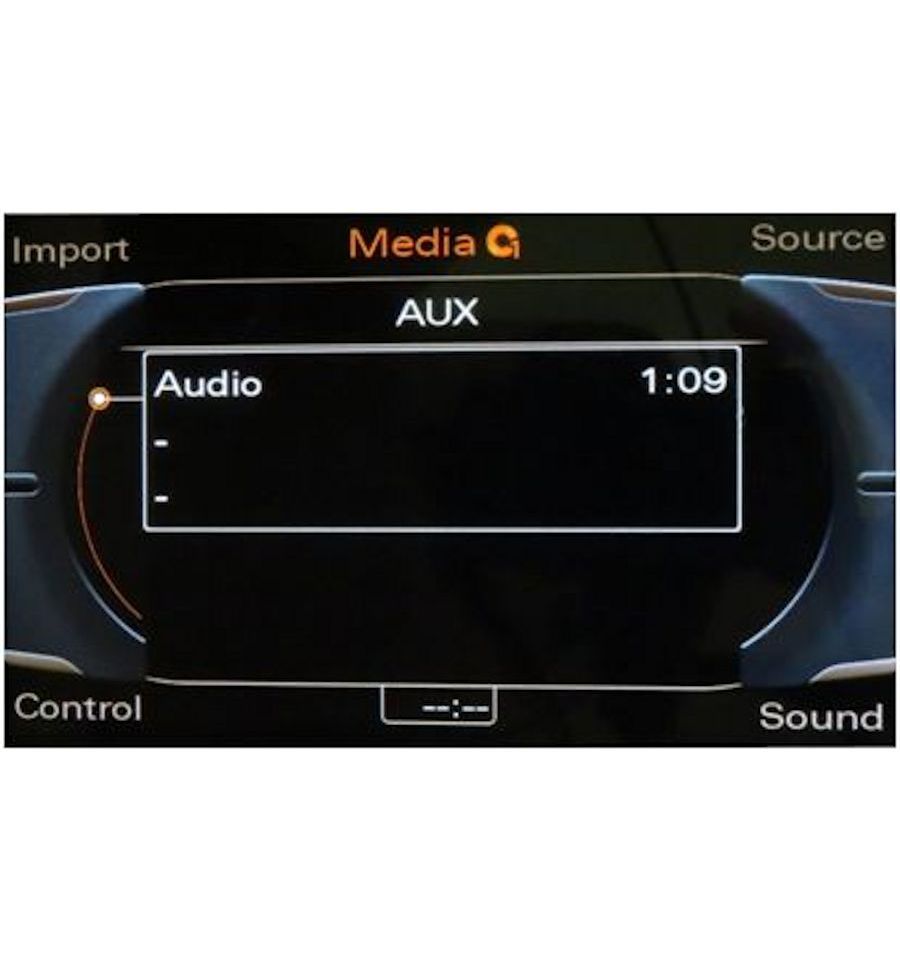

Menu MEDIA AUX-IN:

Wiring diagram:

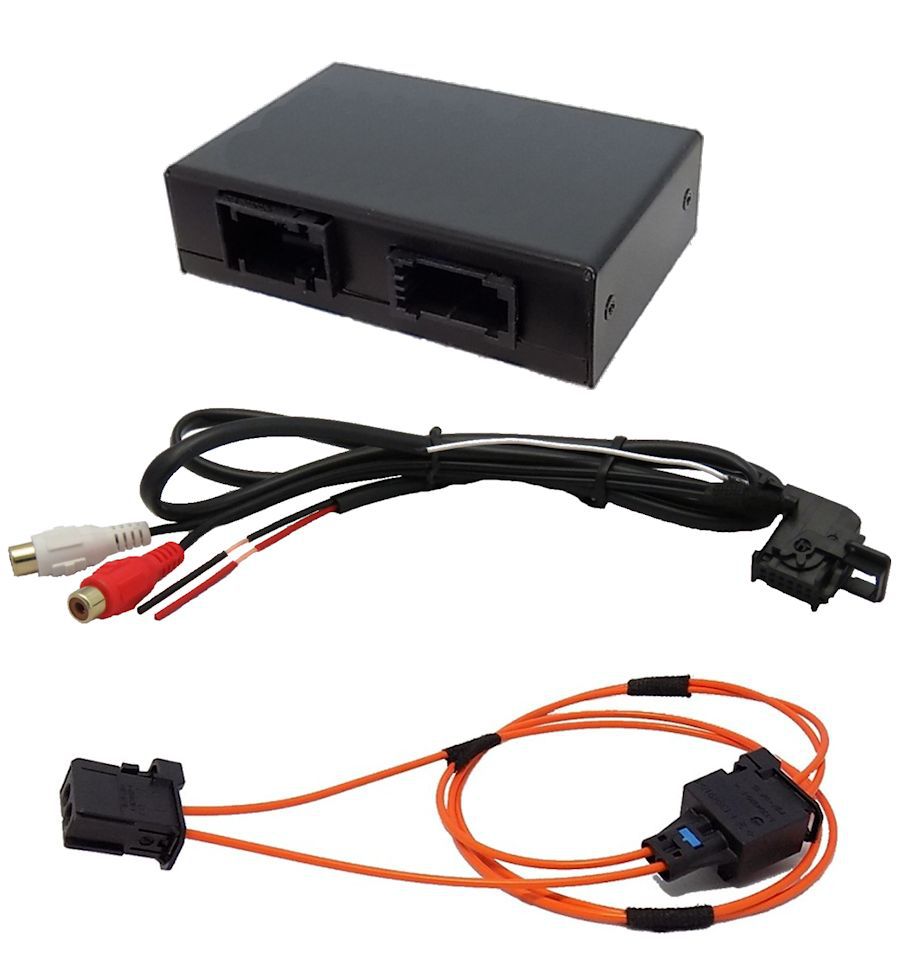

Content of the kit:
  • CI-JBTAUX-3G module
  • Plug & Play Harness

Limitazioni:
  • Can not be installed if a CD Changer is already present, or the CD changer must be removed to install the CI-JBTAUX-3G interface.
  • Some devices does not support the transmission of the ID tags.
  • Not compatible with MMI3G+
AudiA4 8K, A5 / S5, A6 4F, A6 4G, A8 4E, Q5 8R, Q7 4L
CategoryAUX integration, Bluetooth integration
