Camera interface for Audi MMI 3G basic / high, MMI 3G+ basic / high systems, with HSD LVDS 4pin plug. For a connection of a rear-view camera and a front-camera.
Camera Interface for Audi with MMI Navigation (Plus), MMI 3G basic / high, MMI3G+ basic / high systems with HSD LVDS 4pin plug.
This interface allows you to connect a rear-view camera and a front camera to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the user needs and switched back to previous video after the parking maneuver is finished.
Product features:
- Own on-screen display and setup
- Interactive lane lines
- 1 rear-view camera input
- 1 front camera input
- 2 trigger outputs (+12V max. 1 A), separately adjustable switching events
- Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
- Automatic switching to front camera on parking maneuver, automatic return at 20 km/h
- Manual switching to rear-view camera
- Manual return from rear-view and front camera (cancellation of automatic switching)
- Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
- USB update-port for software-updates by consumer
Compatibility:
| Model | Radio/Navigation |
| A4 (8K) 05/2009 - 08/2015 | MMI Navigation (Plus) 7" or 8" MMI3G High and Basic, MMI3G+ (no RMC units) |
| A5 (8T) 11/2008 - 06/2016 | |
| A6 (4F) 08/2008 - 03/2011 | |
| A6 (4G) 04/2011 - 09/2014 | |
| A7 (4G) 07/2010 - 05/2014 | |
| A8 (4E) 09/2008 - 03/2010 | |
| A8 (4H) from 03/2010 | |
| Q5 (8R) 11/2008 - 2017 | |
| Q7 (4L) 05/2009 - 03/2015 |
Limitations:
| Factory OPS | The indicators of an optical park system (OPS) can't be displayed if an after-market rear-view camera is connected and reverse gear is engaged. Acoustic signals are still present. |
Specifications:
| Operation voltage | 10.5V – 14.8V |
| Stand-by power drain | <0.1mA |
| Operation power drain | 190mA |
| Power consumption | 2.6W |
| Temperature range | -20°C to +80°C |
| Video box dimensions | 141 x 30 x 100 mm (L×W×D) |
Connections:
- Video insertion: 4pin HSD
- Power: Plug & play (Quadlock)
- CAN: Cable with open ends
- Rear-view camera input: RCA
- Front-camera input: RCA

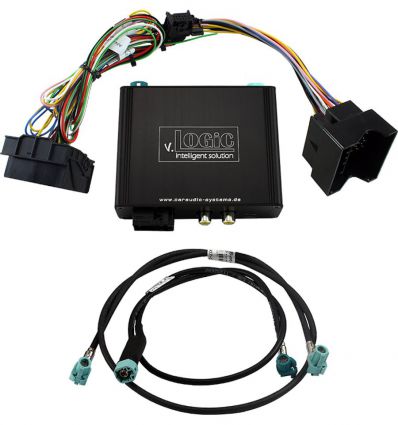

Delivery content:
- Interface box V5C-M653
- Harness V5C-AU03
- HSD cable CAB-HSD-DD075-O
- HSD cable CAB-HSD-ML060-OZU
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Audi | A4 8K, Q7 4L, Q5 8R, A8 4H, A8 4E, A7, A6 4G, A6 4F, A5 / S5 |
| Category | Rear View Camera Interfaces |
