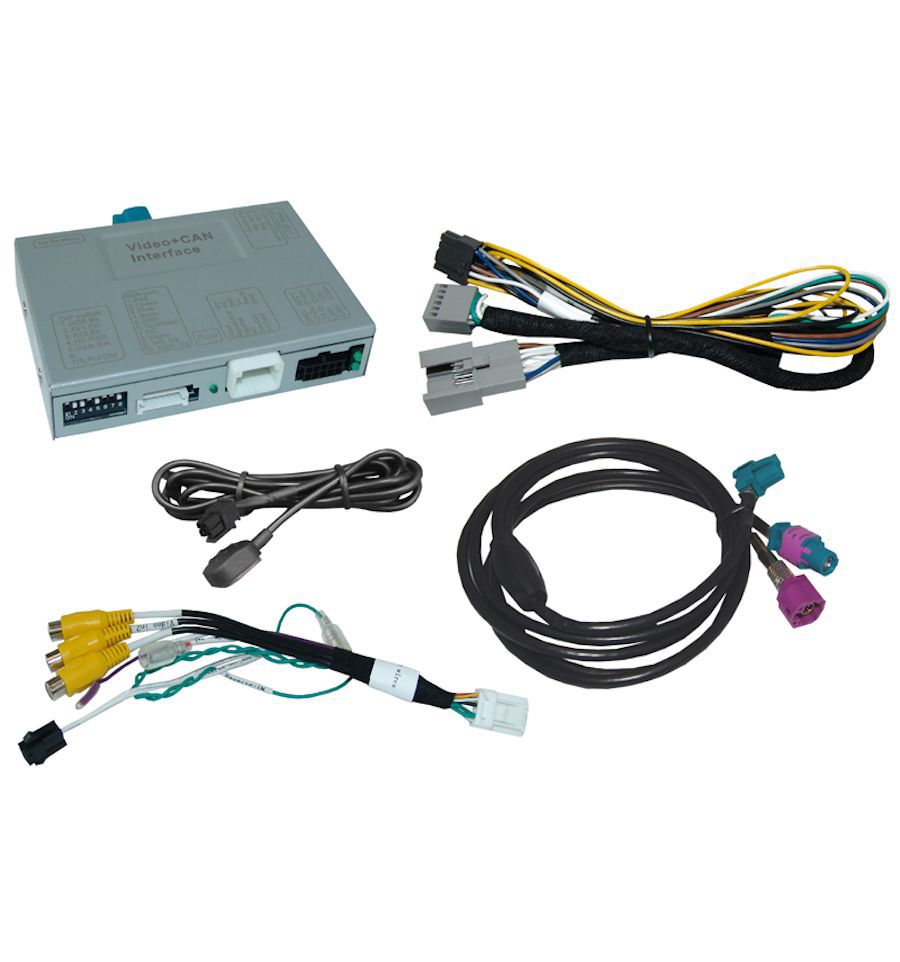

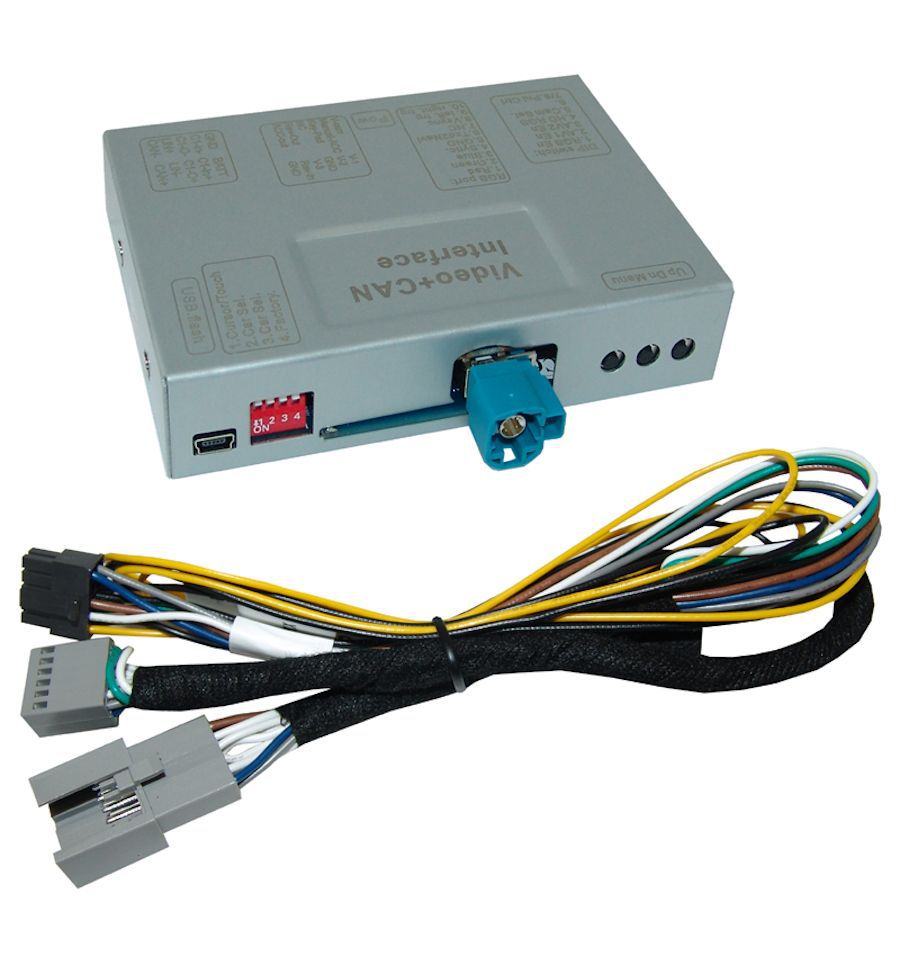

Video interface for Audi TT with MMI Navigation Plus - MIB II Main-Unit Expand

Video interface for Audi TT with MMI Navigation Plus - MIB II Main-Unit

Audi Audi

CI-RL3-MIB-TT-AU

New

Video Interface with front and rear view camera inputs for Audi TT with MIB MMI Navigation Plus - MIB II Main-Unit.

More details

shipped in 24 h

€ 399,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video Interface with front and rear view camera inputs for Audi TT with MIB MMI Navigation Plus - MIB II Main-Unit.

This interface allows you to integrate a rear view camera to your car factory fitted screen. Once connected it gives two additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.


Product features:

  • Video-insertion for factory-infotainment systems
  • Rear camera CVBS inputs.
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible only


Compatibility:

ModelRadio / Navigation
  R8 (4S) from 05/2015
MMI Navigation Plus - MIB II Main-Unit
with Monitor in instruments Tacho
  TT (8S) from 07/2014



Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:

BATT/ACC range7V – 25V
Stand.by power drain12mA
Power210mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box119 x 24 x 114 mm (W x H x D)


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

AudiR8, TT 8S
CategoryRear View Camera Interfaces, Video integration
