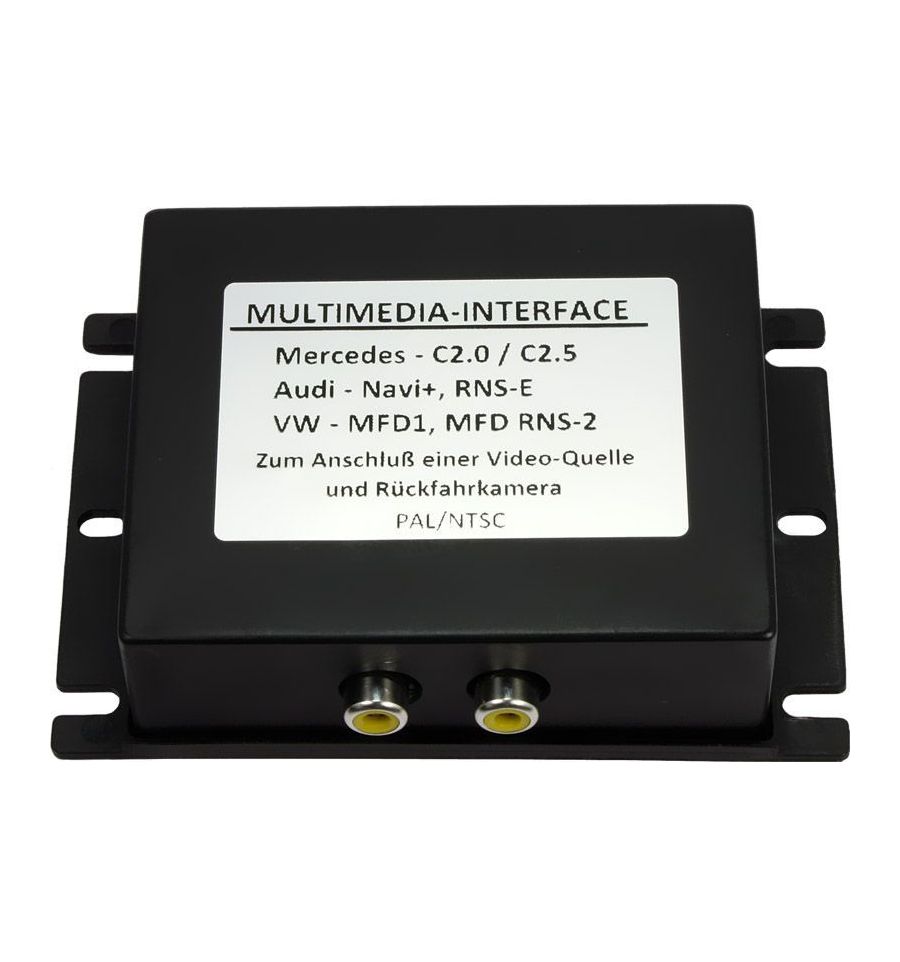

c.LOGiC Audio/Video Interface for Audi RNS-E with rear view camera input. Expand

c.LOGiC Audio/Video Interface for Audi RNS-E with rear view camera input.

1 Review(s)
Audi Audi

CI-C1-RNSE

New

c.LOGiC lite multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input and trigger signals. Only compatible with NTSC-cameras.

More details

shipped in 24 h

€ 146,72

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

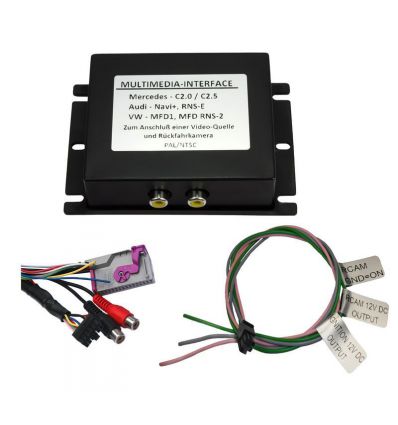

The c.LOGiC multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible.



Product features:

  • Full plug and play multimedia interface
  • 1 AV-input with separate IR-control channels
  • Controls of after-market devices, e.g.DVB-T tuner, DVD-player, DVD-changer, ...
  • After-market rear-view camera input
  • Automatic switching to rear-view camera input (optional coding necessary to switch from OEM-modes)
  • Rear-view camera power (+12V max. 1A)
  • Rear-seat-entertainment AV-output
  • power on remote out trigger signal (+12V ma.x 1A) to switch on connected devices

 Compatibility:

ModelSystem
A3 (8L, 8P, 8P Sport)RNS-E Navi Plus (16:9)
A4 (Cabrio 8H, B7/8E, B6/8E)
A6 (4B)
TT (8J)
R8 (Typ42)



Limitations:

Factory TV  tunerMust NOT be installed.
After-market rear-view cameraOnly compatible with NTSC-cameras.
Automatic switching to camera from OEM mode only works after coding the head-unit torear-view camera per diagnosis computer (Only possible on RNS-E with minimum software 550 and till year 2010).

Specifications (Interface-box):

Operation voltage10.5 - 14.8V
Stand-by power drain<1mA
Operation power drain240mA
Power consumption3W
Temperature range-30°C to +80°C
Weight75g
Measurements106 x 30 x 71 mm (W x H x D)

Connections (Interface-box):

FRONTREAR
2 female RCA connector (Video In, R-Cam)male 4pin Molex connector
male 12pin Molex connector


Remember that in some Countries it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

AudiA3 8L, A3 8P, A4 8E, A6 4B, R8, TT 8J
CategoryAUX integration, Video integration
