New Video interface for Audi with MIB 1 and 2 MMI Plus / Touch and MMI Radio Expand

Video interface for Audi with MIB 1 and 2 MMI Plus / Touch and MMI Radio

Audi Audi

CI-RL4-MIB-AU

New

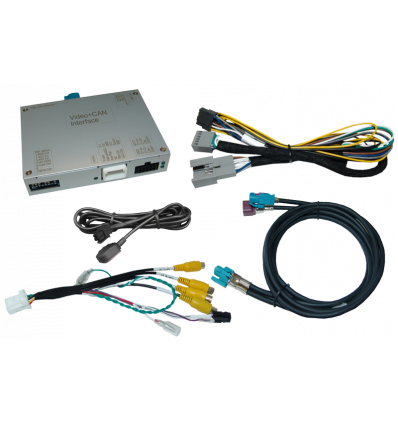

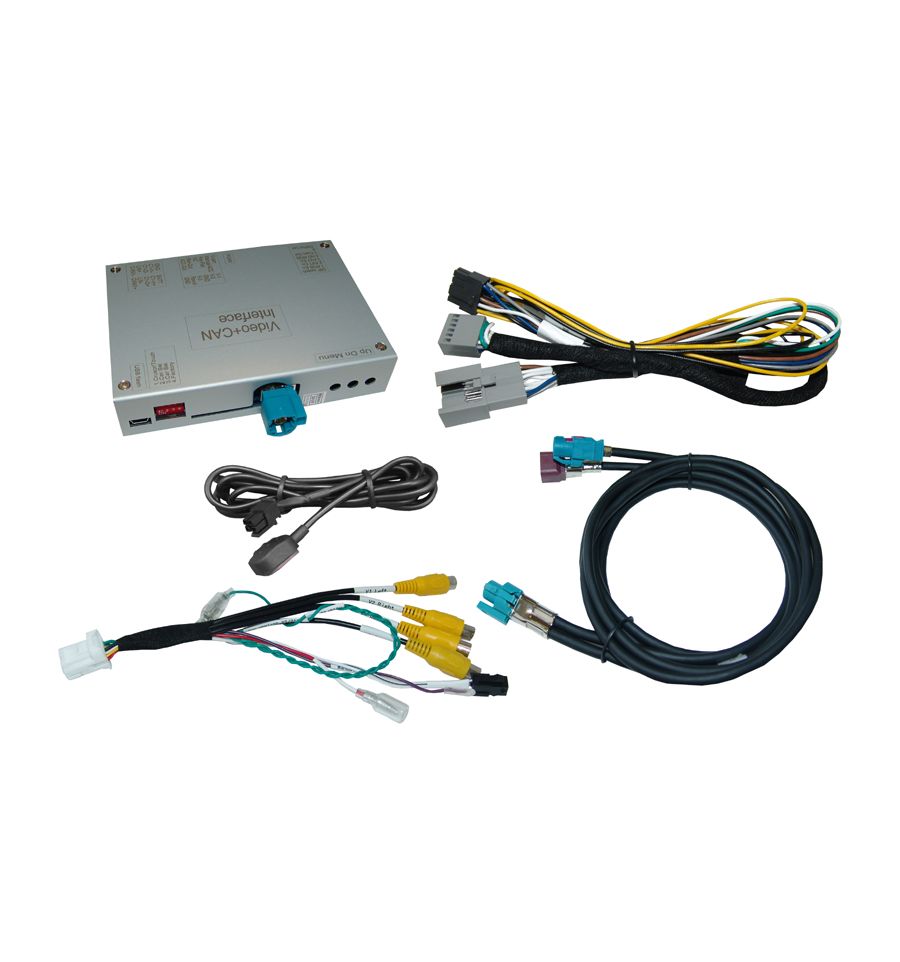

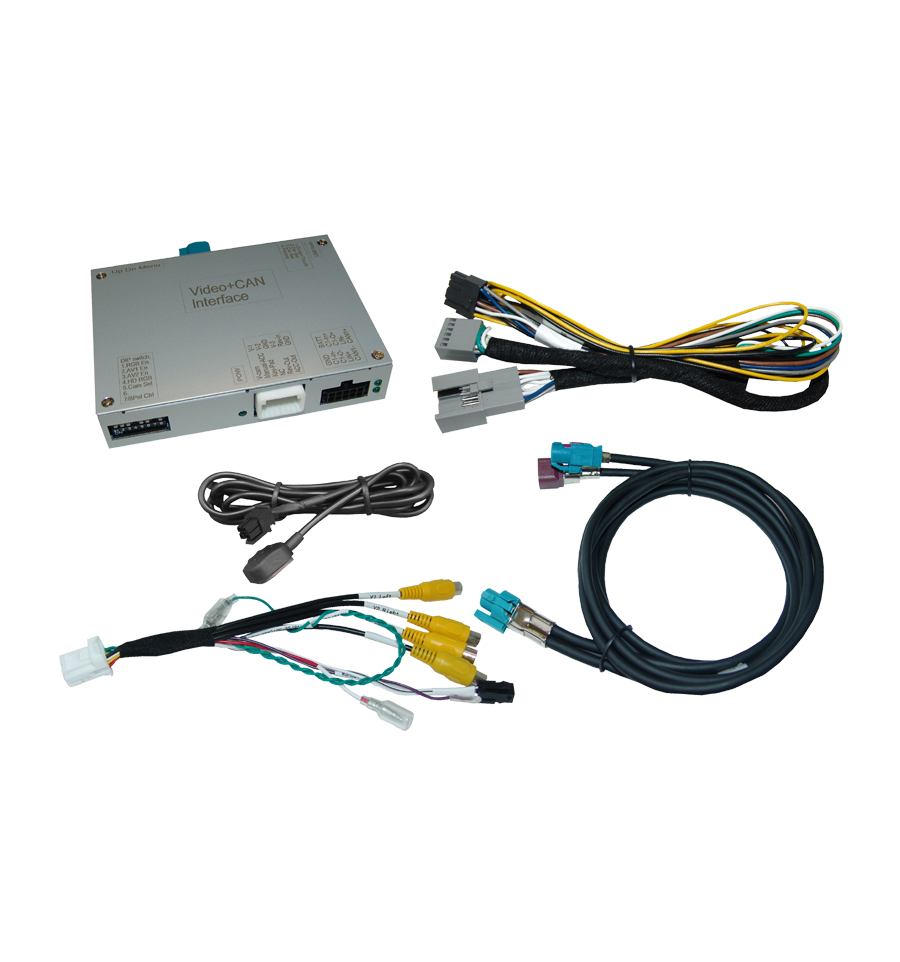

Video Interface with rear-view camera and 2 video-sources for Audi MIB high/standard, MIB II high/standard - (5.8", 6.5", 7", 7.2", 8" or 8.3" monitor)

More details

shipped in 24 h

€ 277,87

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

r.LiNK interface compatible VAG MIB standard/high

The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.

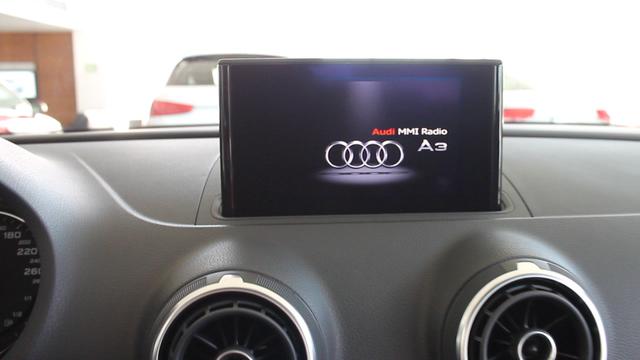

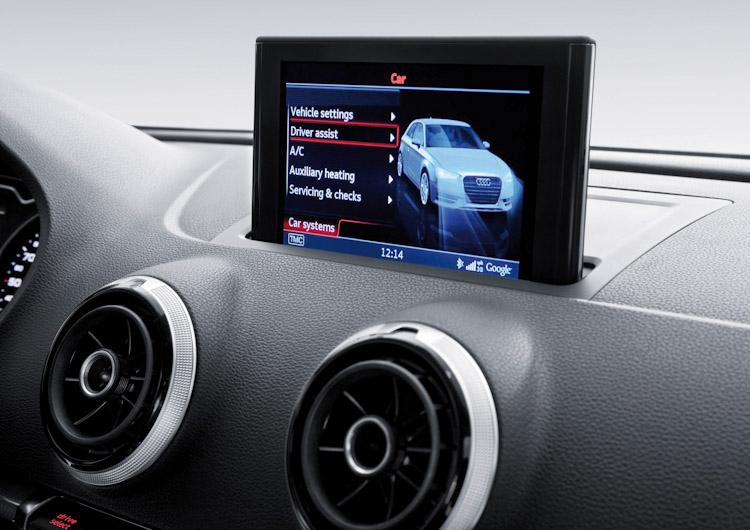

Audi A3 8V MMI Plus  Audi A3 8V MMI Radio


Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10/15/20 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC and PAL compatible




 Compatibility: VAG vehicles with MIB high/standard, MIB II high/standard - (5.8", 7", 8" or 8.3" monitor).



ModelRadio / Navigation
  A3 (8V) from 05/2012
MMI Navigation Plus with MMI Touch 7", 8" or 8.3"
MIB/MIB II Main-Unit

  A4 (8W) from 08/2015
  A5 (F5) from 07/2016 - 04/2019
  A6 (4G) from 09/2014 - 05/2018
  A7 (4G) from 05/2014 - 01/2018
  Q2 (GA) from 09/2016
  Q5 from 2017
  Q7 (4M) from 03/2015-08/2019
  A3 (8V) from 05/2012
MMI Navigation 7"
MIB Std Nav/MIB Std Plus
or
MMI Radio Plus 5.8" or 7"
MIB Entry Plus/MIB Std
  A4 (8W) from 08/2015
  A5 (F5) from 07/2016 - 04/2019
  Q2 (GA) from 09/2016
  Q5 from 2017
  Q7 (4M) from 03/2015-08/2019



Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.

Only compatible with NTSC.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

With connecting the interface, the former factory PDC graphics won't apply anymore. Acoustic signals will still be present.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box154 x 22 x 92 mm (W x H x D)




Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • front-view camera-input: RCA connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

AudiA3 8V, Q7 4M, Q5 8R, Q5, Q2, A7, A6 4G, A5 / S5, A4 B9
CategoryVideo integration
