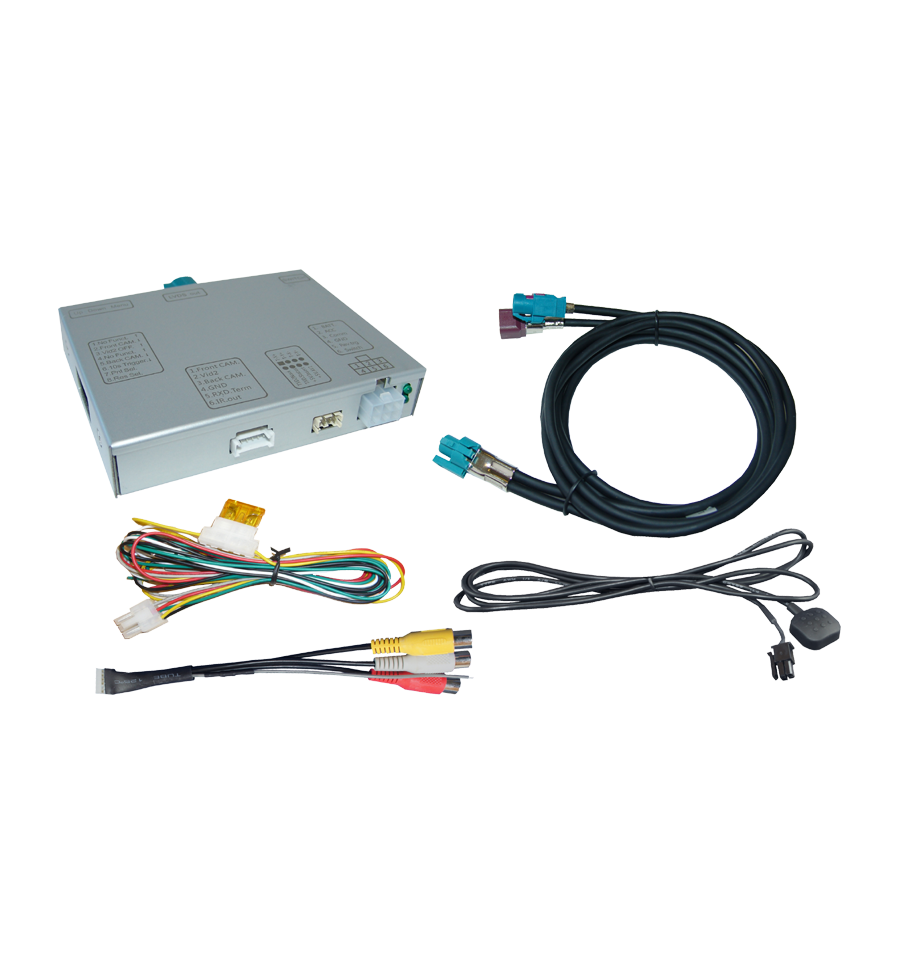

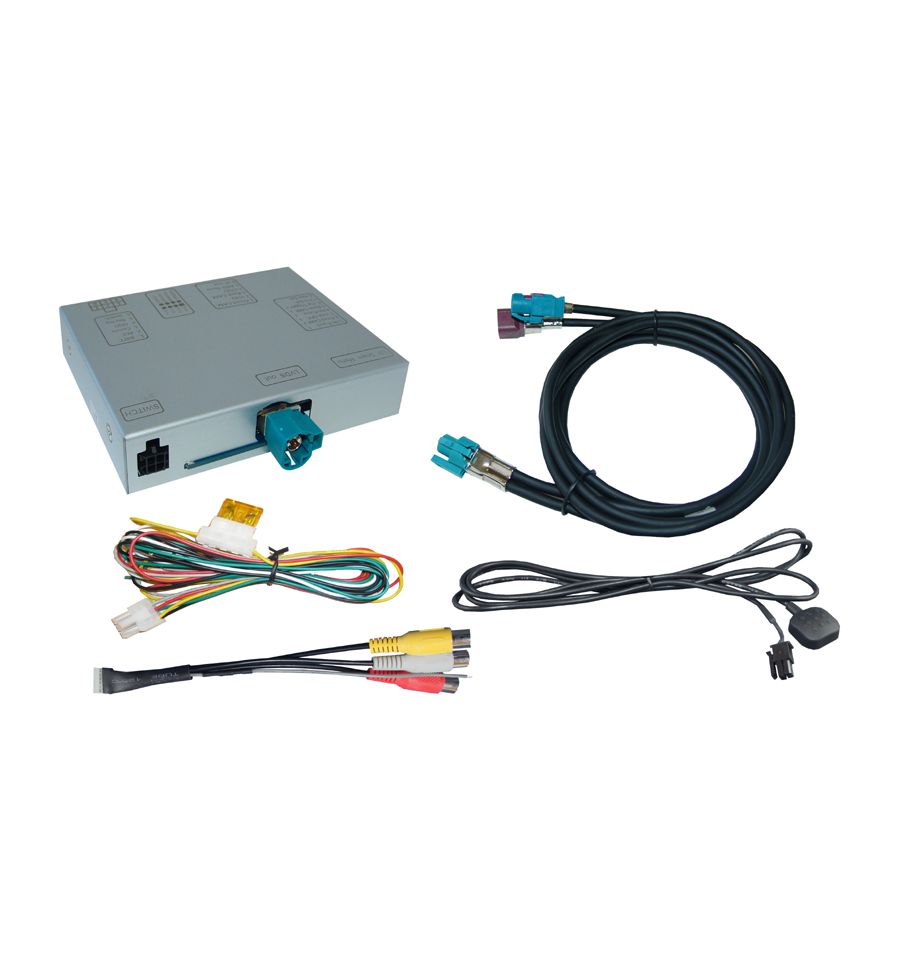

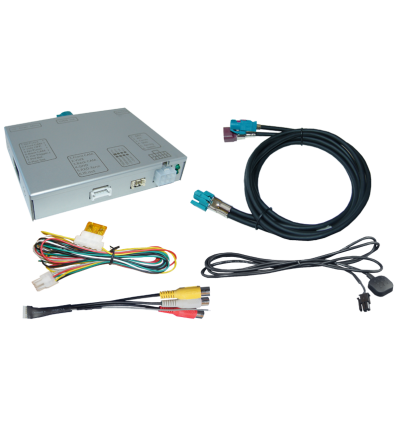

New Interface front- and rear-view camera for Audi A1 A4 A5 A6 A7 A8 Q3 Q5 Q7 with MMI 3G 3G+ Expand

Interface front- and rear-view camera for Audi A1 A4 A5 A6 A7 A8 Q3 Q5 Q7 with MMI 3G 3G+

Audi Audi

CI-RL1-MMI3G-AU

New

Video inserter for front- and rear-view camera and another video-source.
Compatible with Audi vehicles with MMI 3G/3G+ Basic / High or other units with 4-pin HSD LVDS connector.

More details

€ 245,08

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video inserter compatible with Audi vehicles with MMI 3G/3G+ basic/high or with monitor with 4pin HSD LVDS connector. For connection of a front-, rear-view camera and another video source.

Product features

  • Video-inserter for factory-infotainment monitors
  • Back and front camera CVBS video-input
  • CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Manual switching to front camera by external keypad or MMI button
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs PAL / NTSC compatible



Compatibility
Compatible with Audi vehicles with MMI 3G/3G+ basic/high systems or with 4pin HSD LVDS connector


ModelRadio/Navigation
A1 (8X)  05/2010 - 10/2018
MMI Navigation (Plus) 7" or 8"
MMI3G High and Basic
MMI3G+
A4 (8K) 05/2009 - 08/2015
A5 (8T) 11/2008 - 06/2016
A6 (4F) 08/2008 - 03/2011
A6 (4G) 04/2011 - 09/2014
A7 (4G) 07/2010 - 05/2014
A8 (4E) 09/2008 - 03/2010
A8 (4H)  03/2010 - 10/2017
Q3 (8U) 10/2011-07/2018
Q5 (8R) 11/2008 - 2017
Q7 (4L) 05/2009 - 03/2015
A1 (8X) from 05/2010MMI Radio/MMI Radio Plus/MMI Navigation 6.5"
RMC/RMC_Cnct_Plus/ RMC_Cnct_Nav
A6 (4F) 08/2008 - 03/2011
A6 (4G) 04/2011 - 05/2018
A7 (4G) 07/2010 -01/2018
Q3 (8U) 10/2011-07/2018
Q7 (4L) 05/2009 - 03/2015

Limitations

Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Factory OPSThe indicators of an optical park system (OPS) can't be displayed if an after-market rear-view camera is connected and reverse gear is engaged. Acoustic signals are still present.
Factory rear-view cameraAutomatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications(interface-box)

Operation voltage7V – 25V
Stand-by power drain<10mA
Video input0.7V - 1V
Video input formatsPAL / NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box113×22×92 mm (W×H×D)
Dimensions CAN-box73×22×30 mm (W×H×D)





Connections (Interface-box)

  • Video-insertion: 4-pin HSD
  • Power
  • Video-input: female RCA connector
  • Rear-view camera-input: female RCA connector
  • Front camera-input: female RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

AudiA1, Q7 4L, Q5 8R, Q3, A8 4H, A8 4E, A7, A6 4G, A6 4F, A5 / S5, A4 8K
CategoryRear View Camera Interfaces, Video integration
