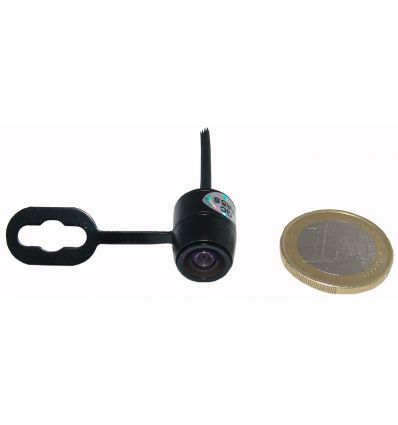

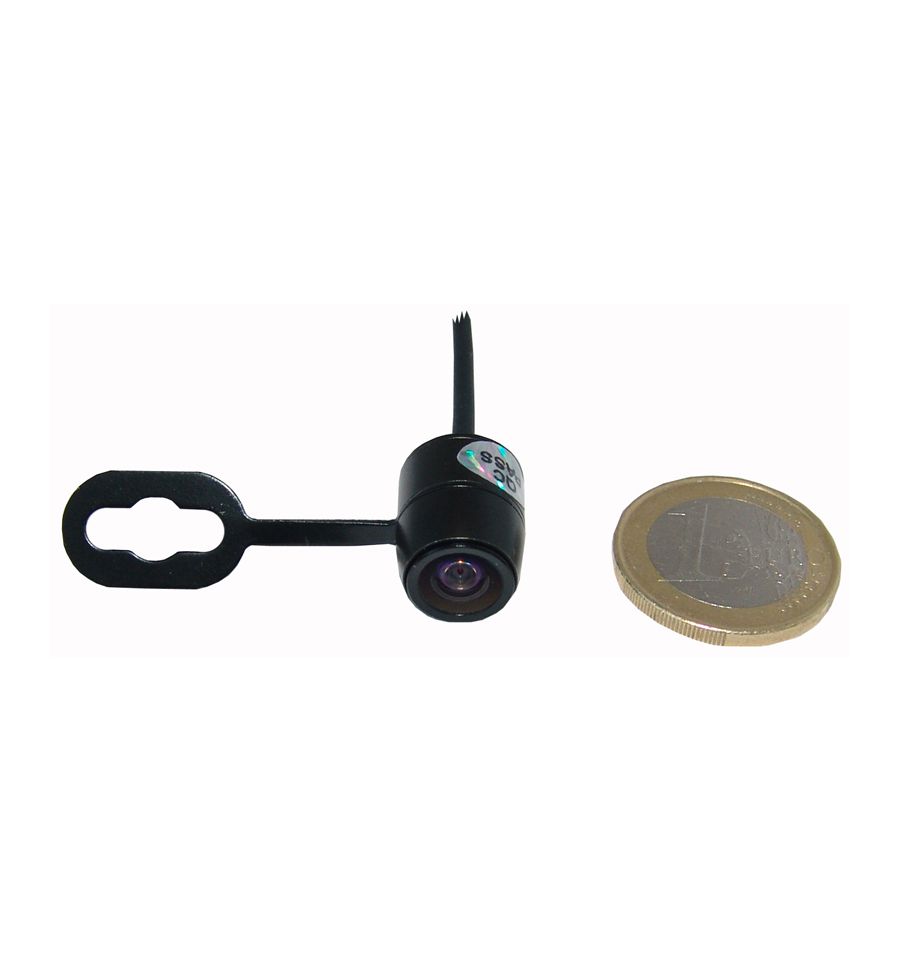

Mini-butterfly camera with switchable image mirror function

1/4 inch NTSC CCD camera with switchable image mirror function, viewing horizontal angle 144°. Universal butterfly mounting.



Features:

• Buttefly mount camera
• Sensor type 1/4 Colour Sony CCD
• Image system NTSC
• Resolution (pixels) H×V  510×492
• 2.6mm lens, F2.0
• 0.5 Lux
• TV-Lines 420
• Angle: horizontal 144°, vertical 110°, diagonal 180°
• Mirrored image (optional)
• IP 68
• Mini Jack connector
• Supply voltage 12V ± 10%
• Power consumption 1W
• Range of working temperature: -30°C to +70°C
• Range of storage temperature: -40°C to +80°C
• Weight 50g

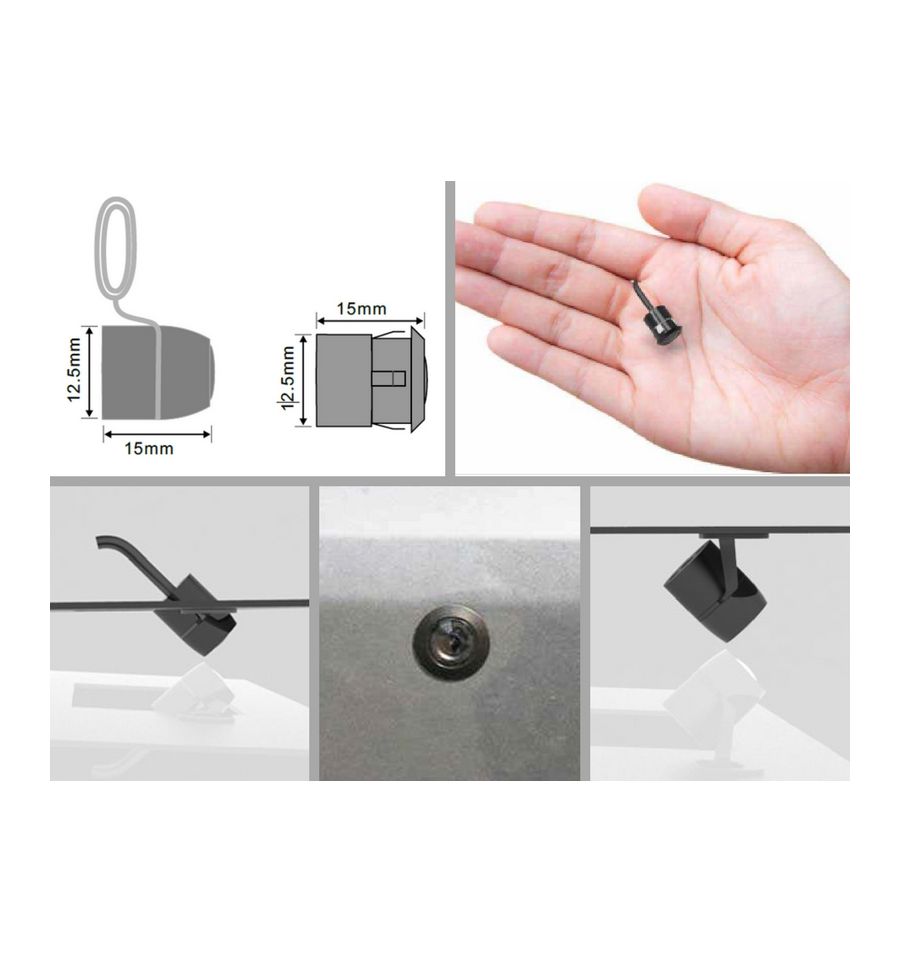

Dimensions:

• Camera (L×Ø)  19×19 mm
