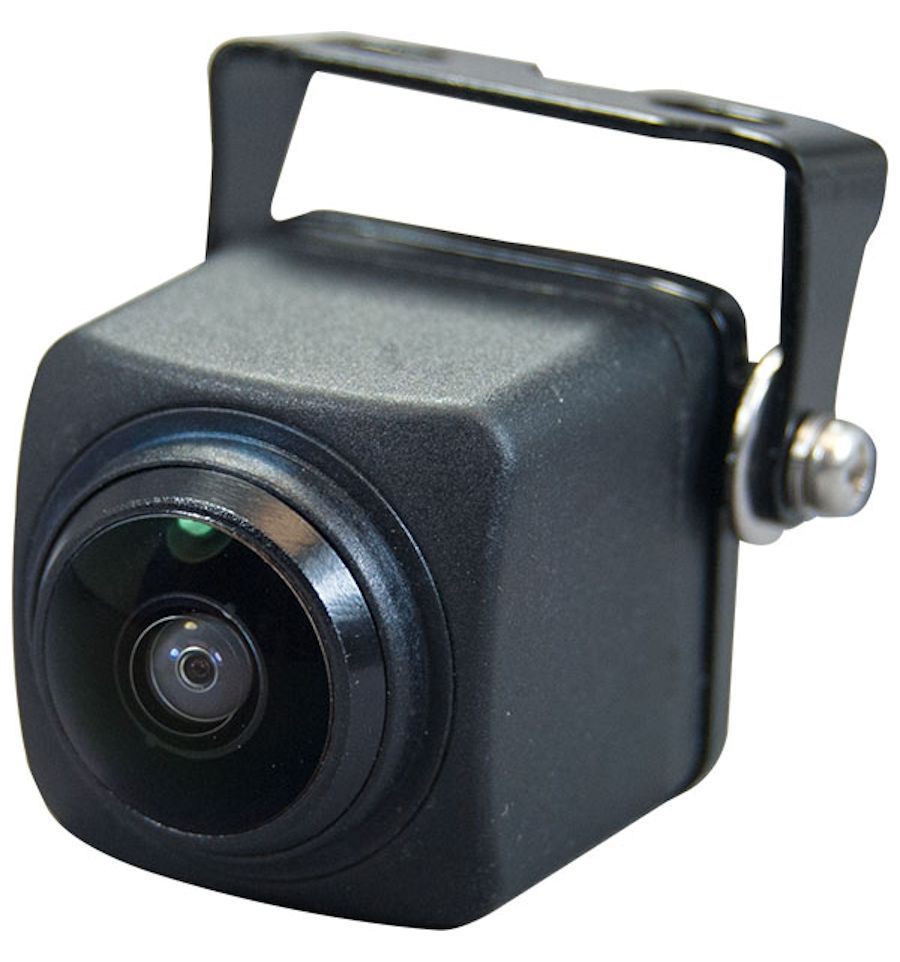

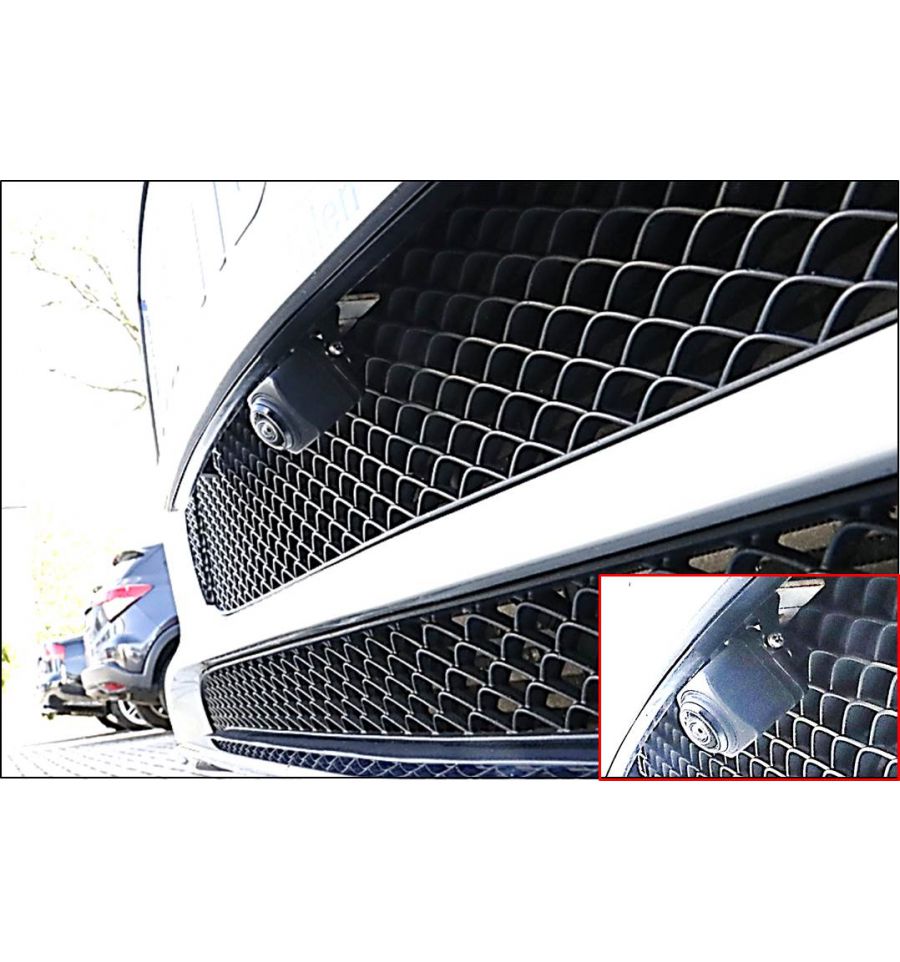

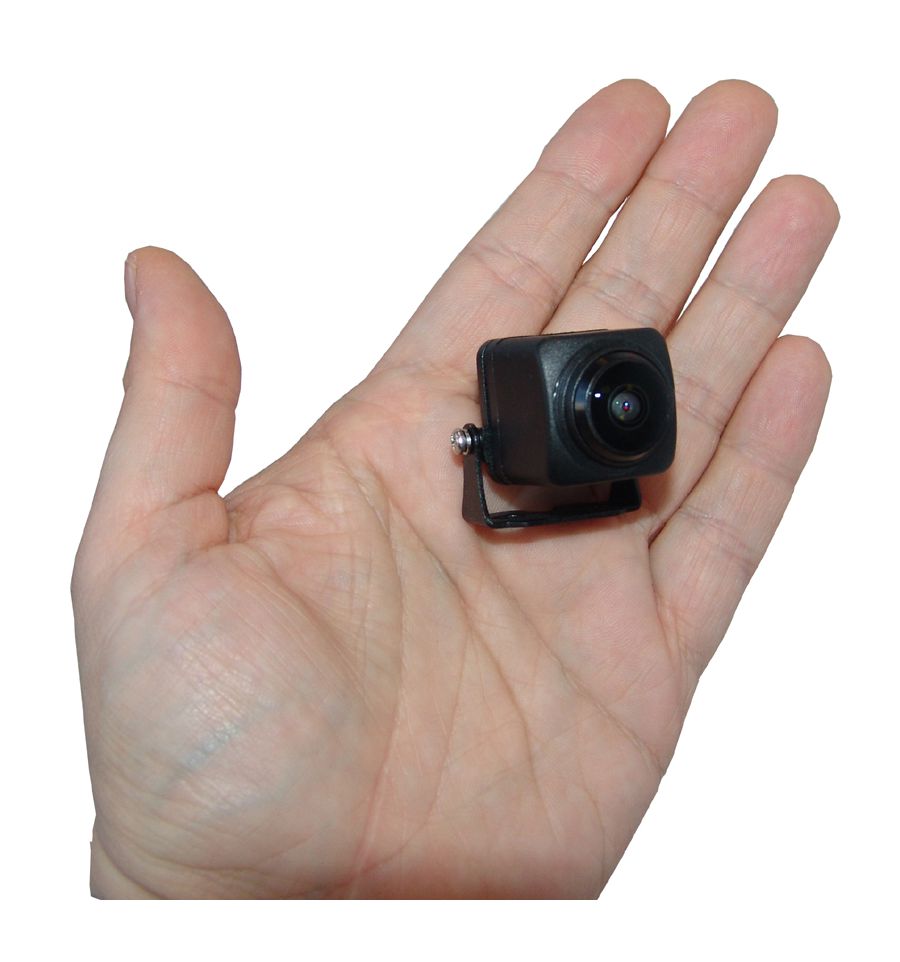

Mini mount-under front camera with fish-eye view with 205° diagonal angle
CI-CAM-E-309F
New
Mini mount-under NTSC front camera with 1/4 inch CMOS fish-eye view with 205° diagonal angle and 185° horizontal angle. Unmirrored, with black housing.
Valutazione: Scrivi per primo una recensione!
1/4 inch NTSC CMOS mini mount under front camera with 185° horizontal angle, 205° diagonal angle, and black housing. Unmirrored.
Note: with the supplied holder, the camera can not be mounted on top.
Features:
Note: with the supplied holder, the camera can not be mounted on top.
Features:
- Mini mount-under front camera
- Sensor type 1/4inch CMOS
- Picture format NTSC colour
- Resolution 720 x 480 pixel
- Min illumination 0.5 Lux

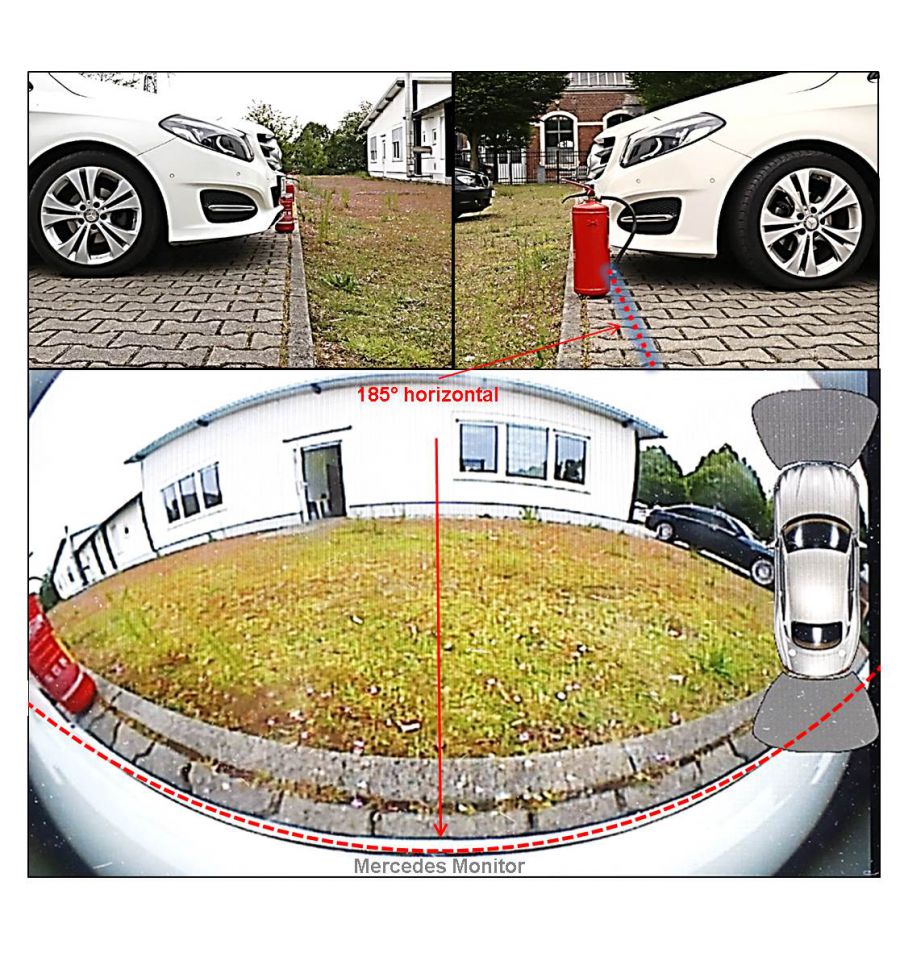

- Angle horizontal 185°, vertical 80°, diagonal 205°
- Unmirrored picture (fixed)
- System cable with throughput, e.g. for reverse signal
- Protection class IP69K
- Suitable for permanent operation
- Holder and camera colour black

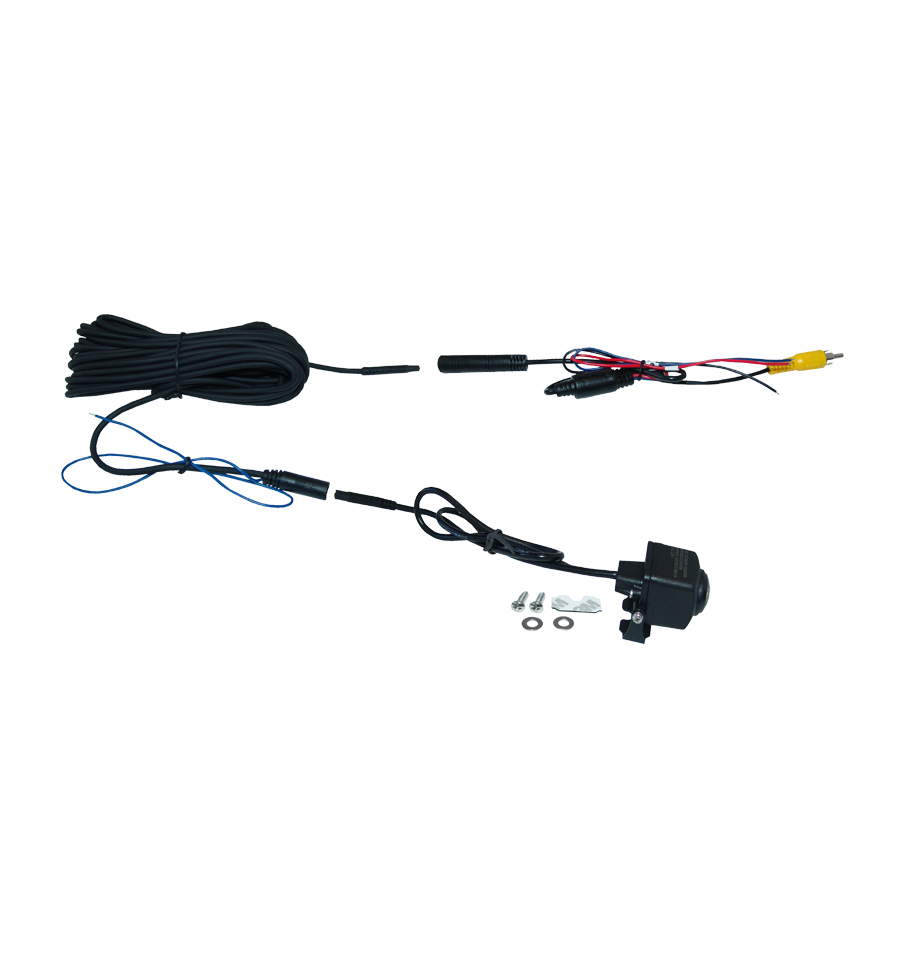

- Total cable length about 8.80m
- Video-connector RCA male connector
- System connector camera 4pin BM
- Diameter camera connector 5mm
| Operating voltage | +12V DC (9~16V) |
| Current consumption | 100mA |
| Weight incl. cable about | 218g |
| Operating temperature range | -40°C to +85°C |
| Dimensions camera only | 40 x 23 x 23mm (W x H x H) |
| Dimensions camera with holder | 40 x 33 x 30mm (W x H x H) |
| Category | Cameras RVC |
