New MINI NBT2 (EVO) Video interface with Rear and front camera inputs Expand

MINI NBT2 (EVO) Video interface with Rear and front camera inputs

Mini Mini

CI-VL7-NBT2-MI

New

Video interface with Rear and front camera inputs for NBT2 609 Professional MINI vehicles F 8.8inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.

More details

shipped in 24 h

€ 327,05

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface with Rear and front camera inputs for NBT2 609 Professional MINI vehicles F 8.8inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.



This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.




Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS input for a rear-view camera
  • 1 CVBS input for a front camera
  • 1 CVBS video-input for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after disengaging reverse gear for 10 seconds
  • Activatable dynamic parking guide lines for rear-view camera (not available on all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

Compatibility:

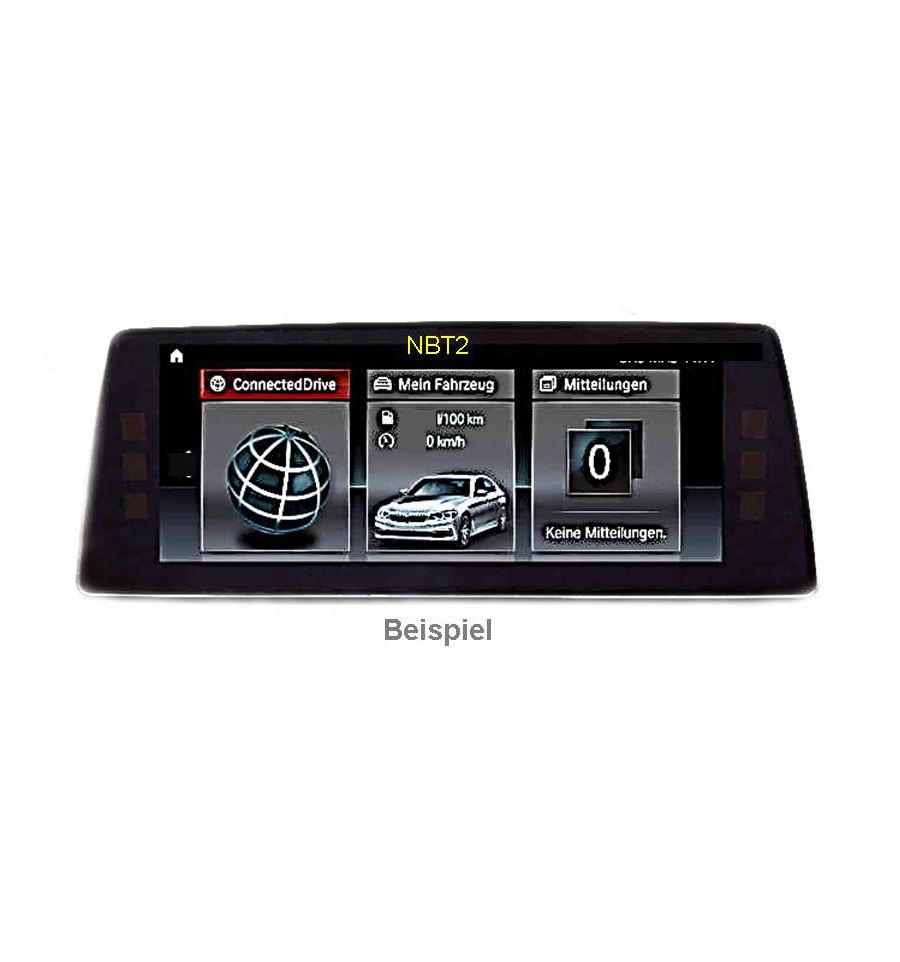

Compatible to MINI vehicles F series with NBT2 and 8.8inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.

ModelNavigation
  MINI from 2016/2017NBT2 609 Professional MINI vehicles F 8.8inch monitor with HSD+2 LVDS plug





Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.





Specifications:



BATT/ACC range7V ~ 25V
Stand.by power drain1mA
Power290mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions CAN-box130 x 88 x 25 mm (W x H x D)

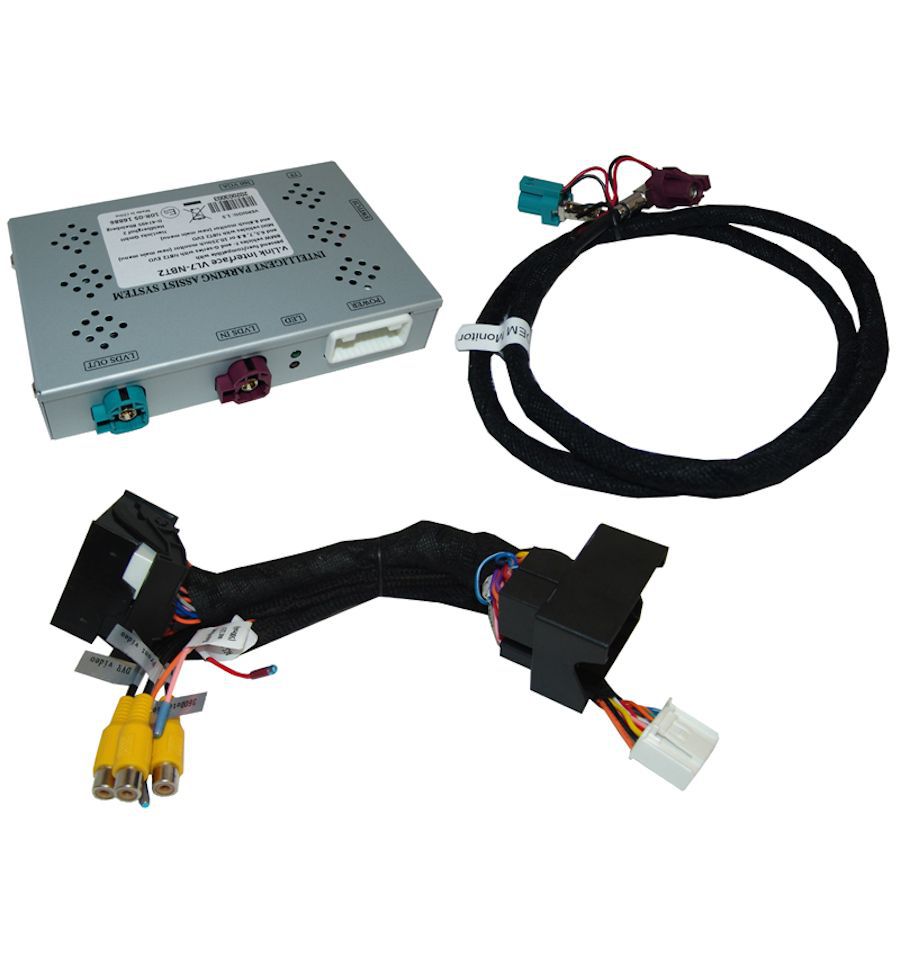

Connectors

  • Video-insertion: 4+2pin HSD+2
  • Power and CAN-bus: Plug & play (Quadlock insert)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CategoryRear View Camera Interfaces, Video integration
