MINI Professional navigation CCC camera interface

Camera Interface for Professional navigation CCC with 6.5inch monitor with 10pin LVDS-connector.

This interface allows you to connect a rear-view camera and a front camera to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the user needs and switched back to previous video after the parking maneuver is finished.

Product features:

• Plug & play camera interface
• Own on-screen display and setup
• 1 rear-view camera input
• 1 front camera input
• 2 trigger outputs (+12V max. 1 A), separately adjustable switching events
• Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
• Automatic switching to front camera on parking maneuver, automatic return at 20 km/h
• Manual switching to rear-view camera (only for vehicles with PDC button)
• Manual return from rear-view and front camera (cancellation of automatic switching)
• Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
• Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
• USB update-port for software-updates by consumer

Compatibility:

Compatible to MINI vehicles with Professional navigation CCC and 6.5inch monitor with 10pin BMW LVDS connector.

Specifications:

Connections:

• Video insertion: 10pin
• Power and CAN: Plug & play (Quadlock)
• Rear-view camera input: RCA
• Front-camera input: RCA

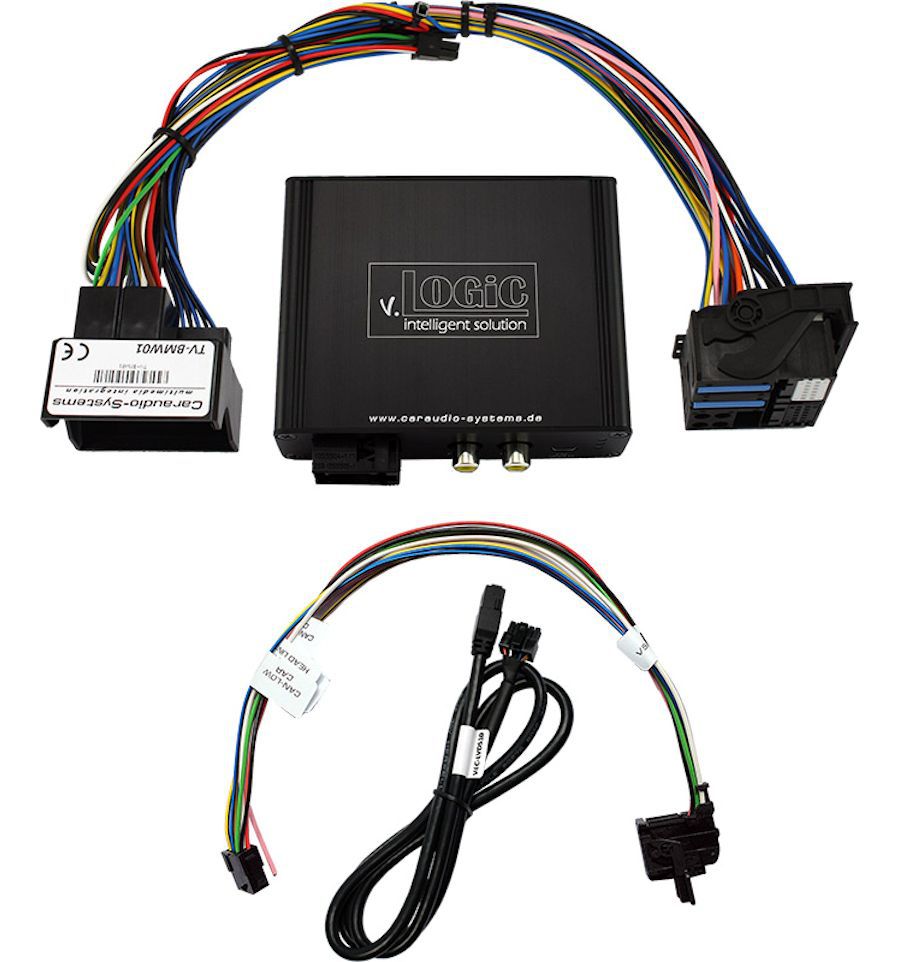

Delivery content:

• Interface box V5C-M631
• Harness TV-BMW01
• Harness V5C-UNI01
• LVDS cable V4C-LVDS10

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
