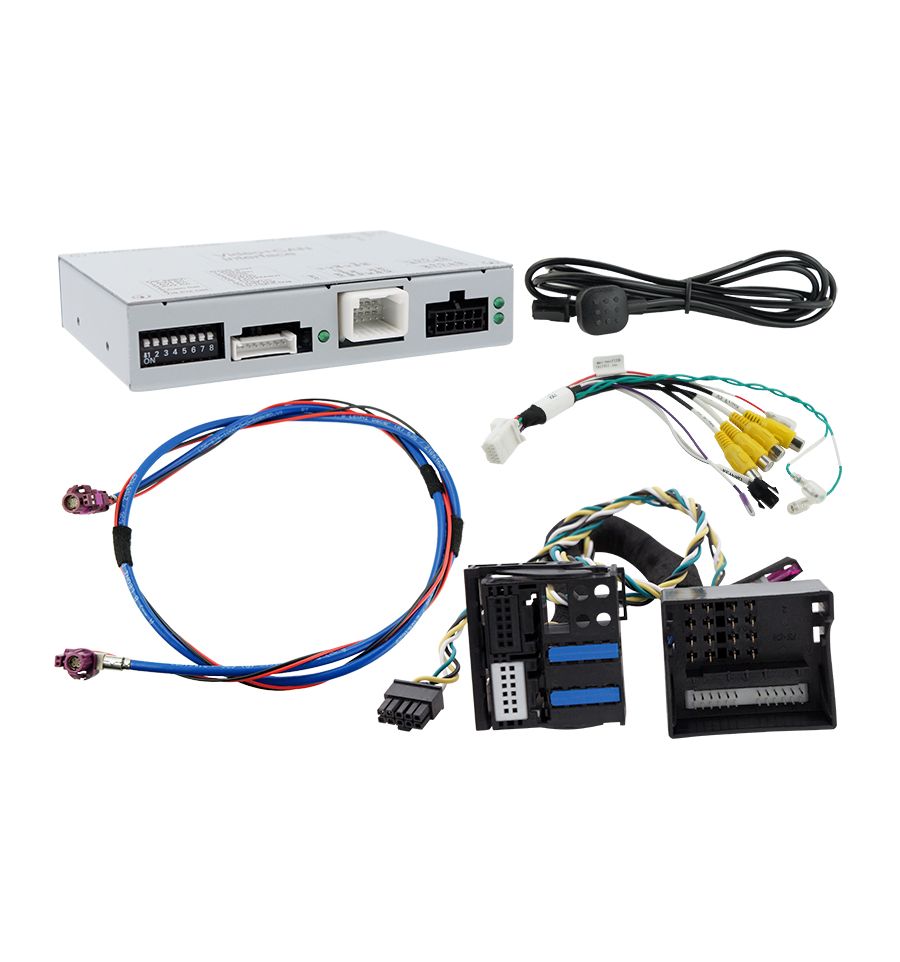

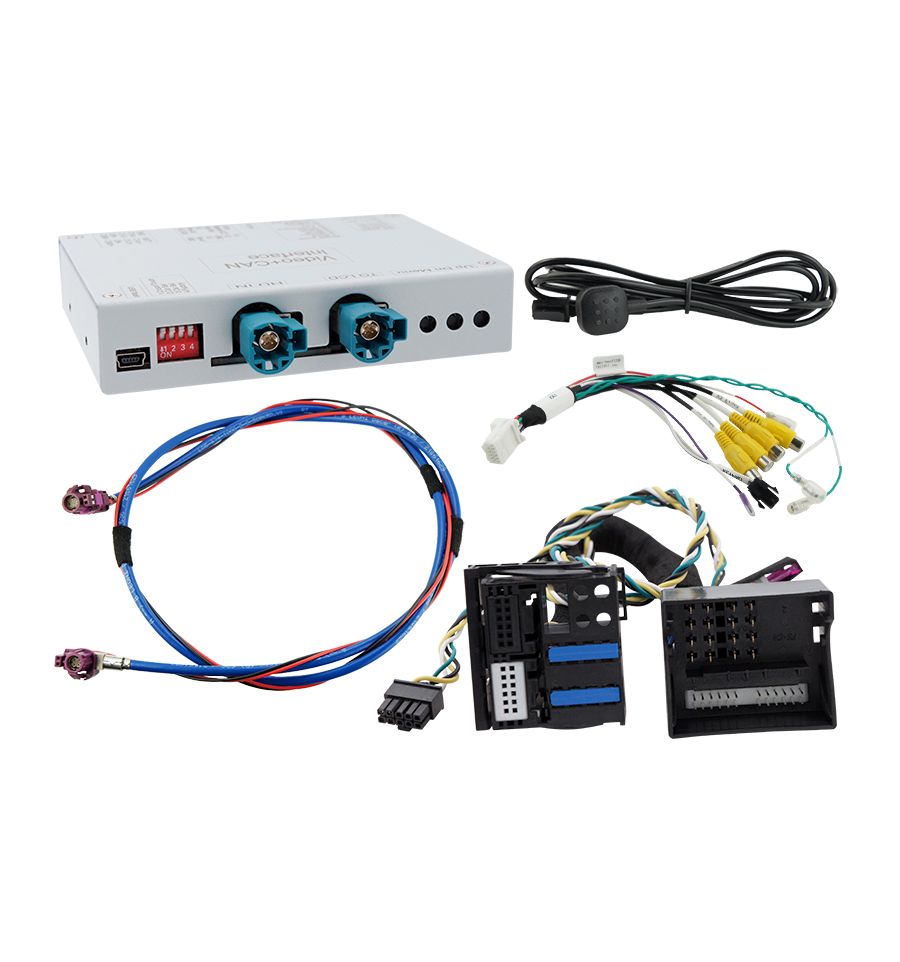

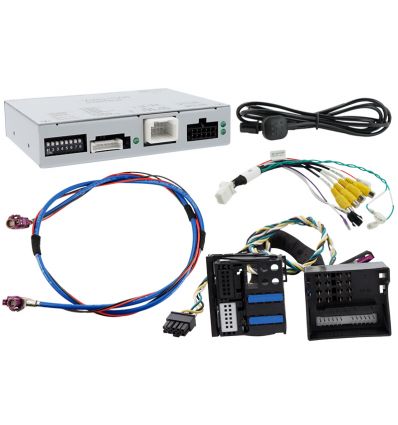

Video interface with Rear and front camera inputs for NBT2 (EVO) MINI vehicles with NBT2 and 6.5 and 8.8inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.
Video interface with Rear and front camera inputs for NBT2 (EVO) MINI vehicles with NBT2 and 6.5 and 8.8inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS input for a rear-view camera
- 1 CVBS input for a front camera
- 2 CVBS video-inputS for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after disengaging reverse gear for 10 seconds
- Activatable dynamic parking guide lines for rear-view camera (not available on all vehicles/CAN)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Compatibility:
| Model | Navigation |
| MINI from 2016/2017 | 6FPA Visual Boost NBT2, S6UMA Mini Navigation or 609 Professional Navigation NBT2 Evo. With 6.5inch or 8.8inch monitor (new main menu) |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. |
| After market front camera | Front camera will automatically be switched for 10 seconds after disengaging the reverse gear. Manual switching to Front cameras is also possible. |
| Driving path lines | Displayed dynamic guide-lines on after-market rear-view camera picture are not available in all vehicles. |
| PDC display | Optical display of PDC in combination with after-market rear-view camera does not work in all vehicles. |
| Video-input signal | NTSC video sources compatible only. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 1mA |
| Power | 290mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions CAN-box | 130 x 88 x 25 mm (W x H x D) |
Connectors
- Video-insertion: 4+2pin HSD+2
- Power and CAN-bus: Plug & play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
