Video interface for Opel Radio R.4.0 IntelliLink with separate black-box head-unit

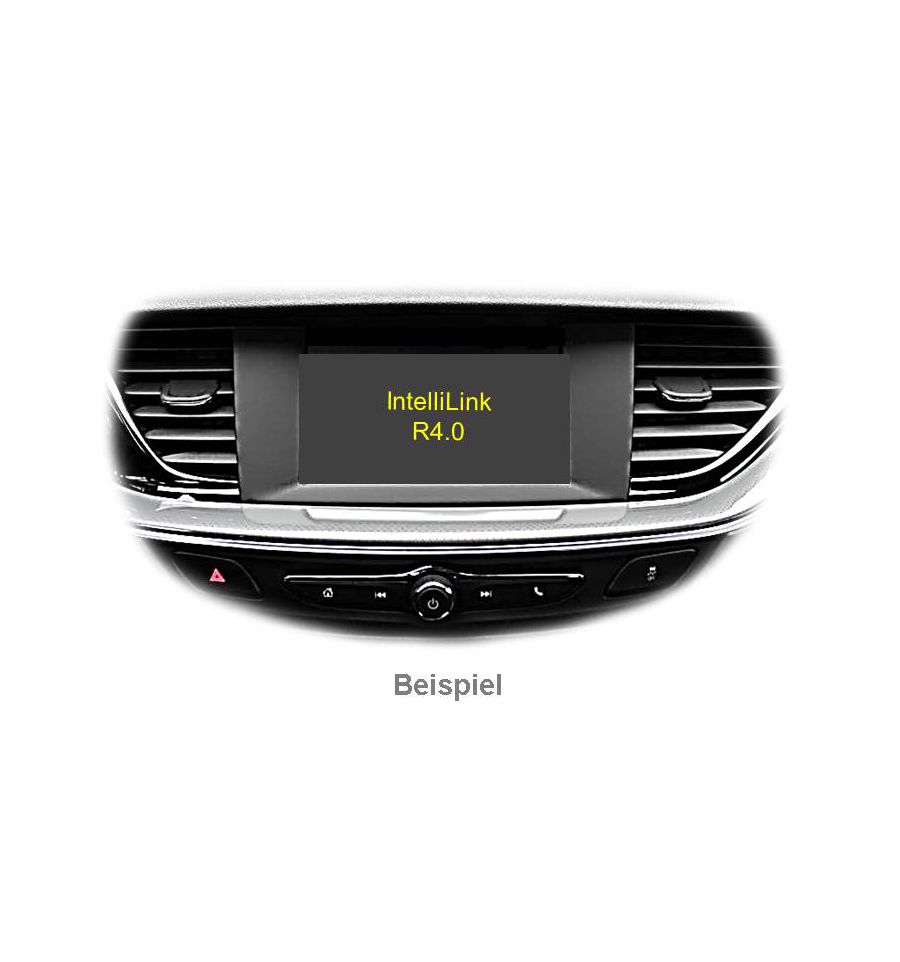

The r.LiNK interface allows to connect a rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel vehicles and Chevrolet Camaro with Radio R4.0 IntelliLink (only 7inch monitor with separate radio box).

Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible



Compatibility:

ModelRadio / Navigation
Astra K (Sports Tourer and 5-door) 2016 >R4.0 IntelliLink
7inch monitor with seperate radio-box
Insigna B 2017 >
Karl



 Specifications:

Operating voltage12V DC (7~25V)
Standby current5mA
Current consumption140mA@12V
Video input0.7~1V
Video input formatsPAL/NTSC
Operating temperature-40°C to +85°C
Dimensions video-box115 x 25 x 104mm (W x H x D)

Limitations:

  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

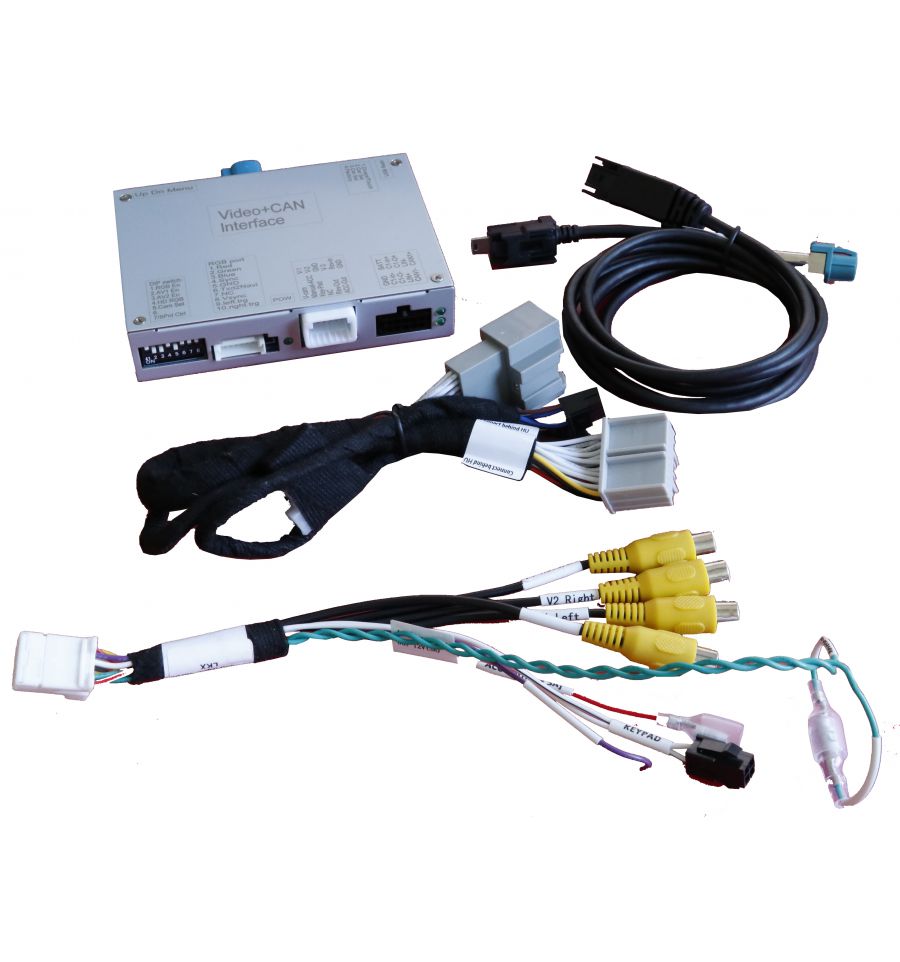

Connections:

  • Video-insertion: mini USB
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): female RCA connector
  • Rear-view camera-input: female RCA connector
  • Front camera-input: RCA female connector


 Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

OpelASTRA, INSIGNIA, KARL
CategoryRear View Camera Interfaces, Video integration
