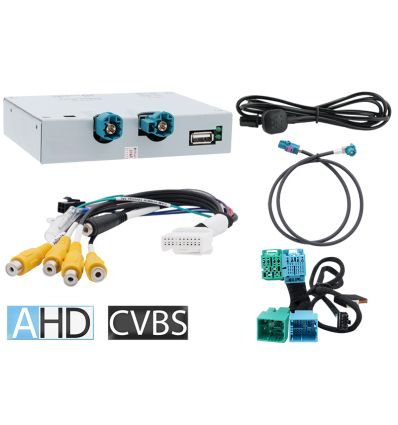

Opel Multimedia Navi Pro - R1 EXT AHD/CVBS video interface with rear and front camera inputs

Opel Multimedia Navi Pro - R1 EXT  AHD/CVBS  video interface for 10inch tablet monitor with rear and front camera inputs

The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.

Product features:

• Video-insertion for factory infotainment systems
• 1 AHD/CVBS Rear-view camera video-input
• 1 AHD/CVBS front camera video-input
• 2 AHD/CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
  960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
• Automatic switching to rear-view camera input on engagement of reverse gear
• Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds

• Video-in-motion (ONLY for connected video-sources)
• Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
• Compatible with factory rear-view camera
• AV-inputs PAL/NTSC compatible

Compatibility:

Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications:

Connections:

• Video-insertion: 4-pin HSD
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA connector
• Rear and front camera-input: RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
