VOLKSWAGEN MFD1 (4:3) Audio - Video and reverse camera input interface

Reference CI-C1-MFD1-VW

Condition: New

Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input and trigger signals.

Car electronic experts since 1990

The CI-C1-MFD1 multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible.

Product features:

Full plug and play multimedia interface
1 AV-input with separate IR-control channels
Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
After-market rear-view camera input
Automatic switching to rear-view camera input (on older MFD1 only from c.LOGiC mode)
Rear-view camera power (+12V max. 1A)
Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices

Compatibility:

Compatible with Volkswagen vehicles with MFD1 (4:3) navigation system.

Model	Radio / Navigation
Beetle	MFD1 (4:3)
Bora
Golf IV
Lupo
Polo IV
Sharan
Jetta
Passat
Transporter T4

Limitations:

Factory TV tuner	Must NOT be installed
After-market rear-view camera	Automatic switching on RNS-D and on older MFD1 to camera only works from usbLOGiC mode. On newer MFD1 automatic switching works also from OEM modes.

Specifications (interface-box)

Operation voltage	10.5 – 14.8V
Stand-by power drain	<1mA
Operation power drain	240mA
Power consumption	3W
Temperature range	-30°C to +80°C
Weight	95g
Measurements	106 x 30 x 71 mm (W x H x D)

Connections (Interface-box)

FRONT	REAR
2 female RCA connector (Video In, R-Cam)	male 4pin Molex connector
	male 12pin Molex connector

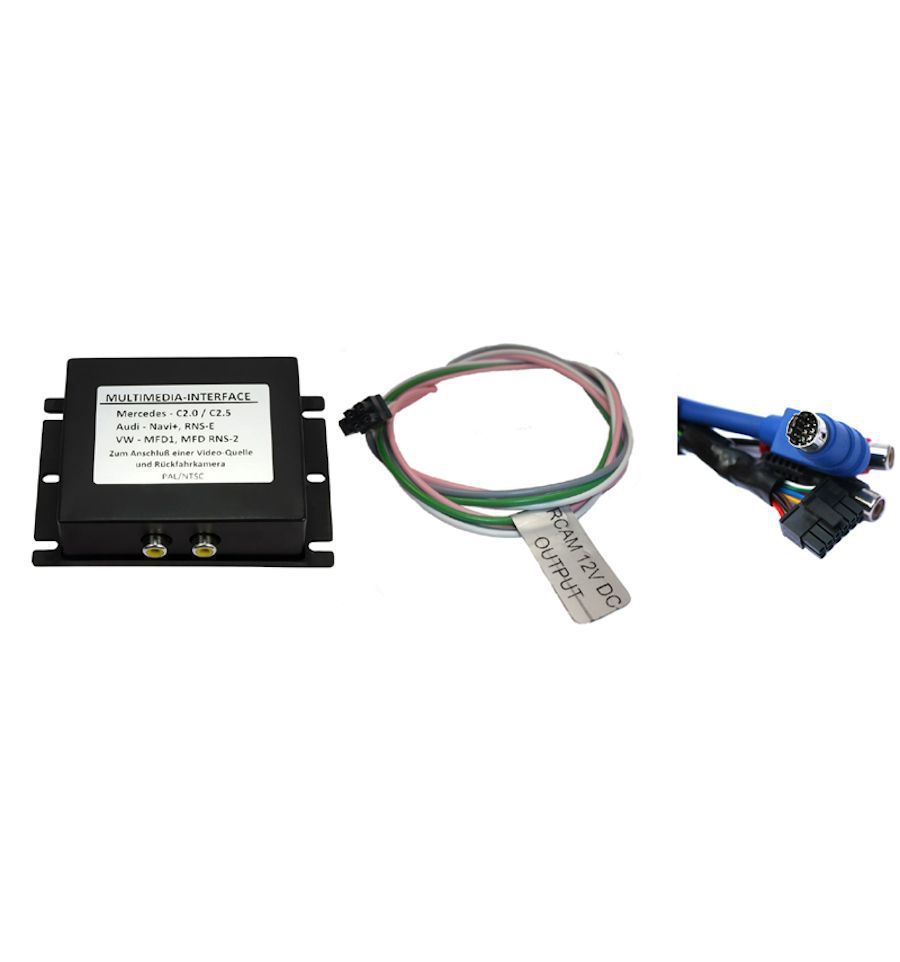

Delivery contents:

Interface-box
Plug & play Harness

Volkswagen	Beetle, Transporter T4, Sharan, Polo 4 rest. 9N3, Polo 4 9N, Polo 3 rest. 6N2, Passat, Lupo, Jetta, Golf IV (1J), Bora
Category	Rear View Camera Interfaces, Video integration
