Video interface for Volkswagen MIB2 GP

Volkswagen Volkswagen



Video interface for Volkswagen MIB2 GP - Composition Color 6.5inch all in one head-unit

More details

shipped in 24 h

€ 261,48

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for Volkswagen MIB2 Entry - Composition Color 6.5inch all in one head-unit

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer

Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible



ModelRadio / Navigation
 Golf7 from 2018

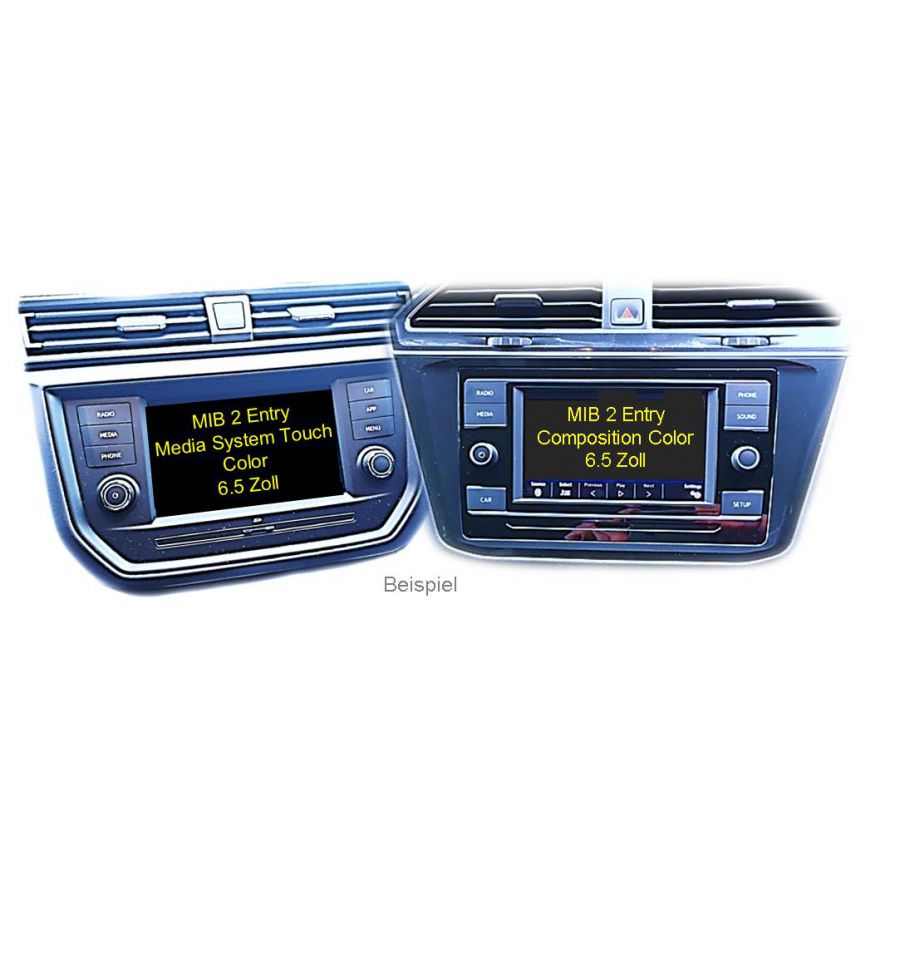

MIB2 GP - Composition Color 6.5inch all in one head-unit
 Golf7 Sportsvan 2018 - 2020
 Polo6 (AW1) from 2018
 T-Roc (A11) from 2018
 Tiguan (AD1) from 2018
 Touran (5T) from 2018
 T-Cross (C1) 04/2019



The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
In case that 2 AV source shall be connected, a desired audio switching will require additional electronic.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.


BATT/ACC range7V – 25V
Stand-by power drain2mA
Power150mA @12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75Ohm impedance
Temperature range-40°C to +85°C
Dimensions118 x 25 x 104 mm (W x H x D)

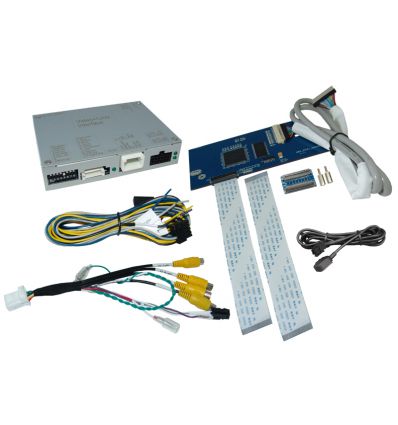

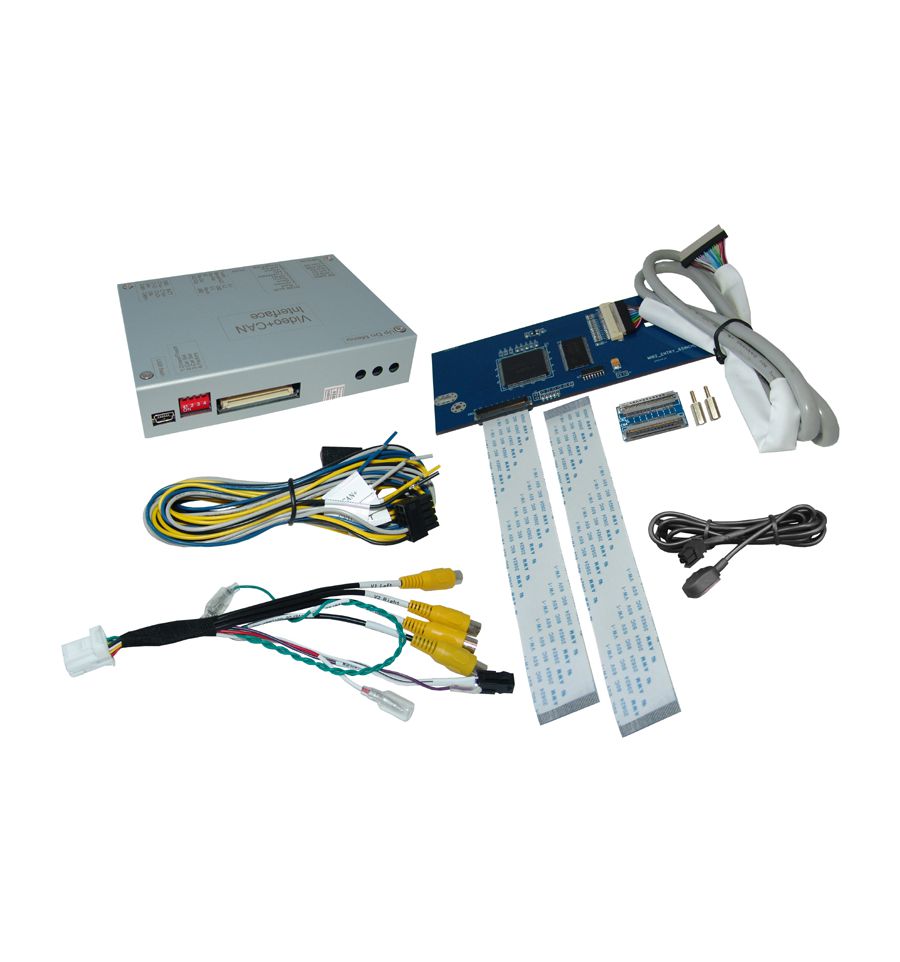

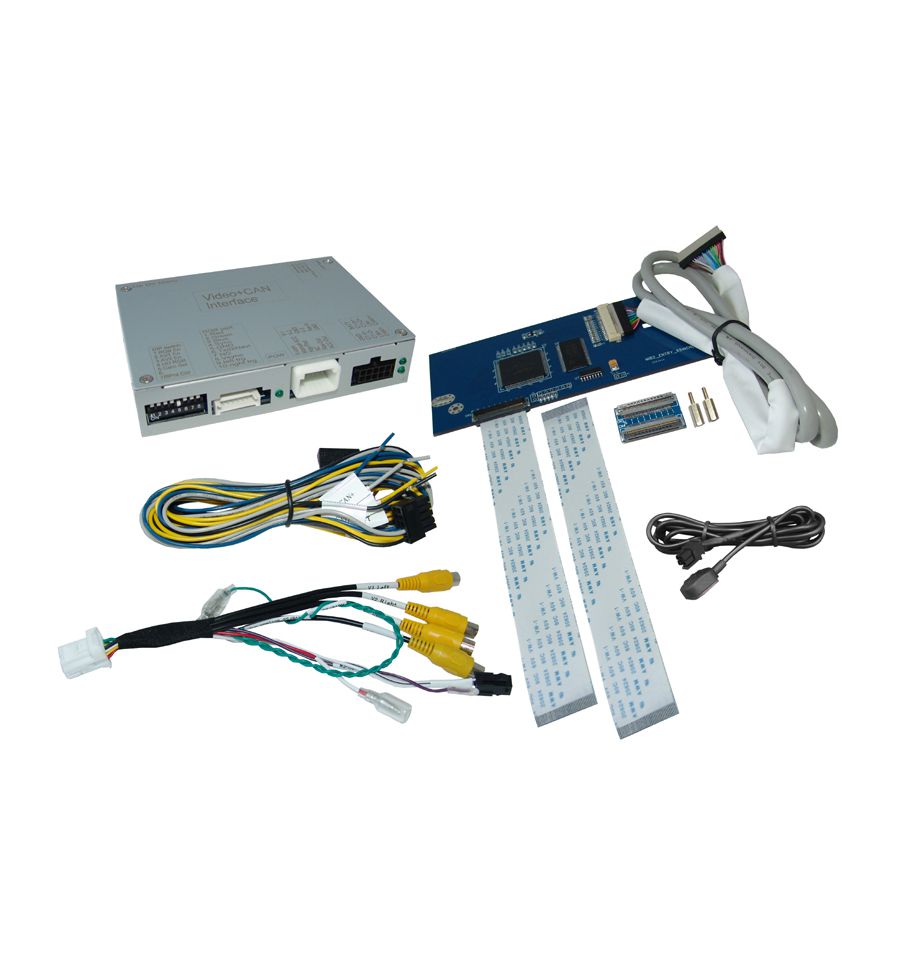

  • Video-insertion: ribbon cable
  • Power and CAN-bus: open cable ends
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

VolkswagenGolf 7 (5G), Tiguan, Touran
CategoryRear View Camera Interfaces, Video integration
