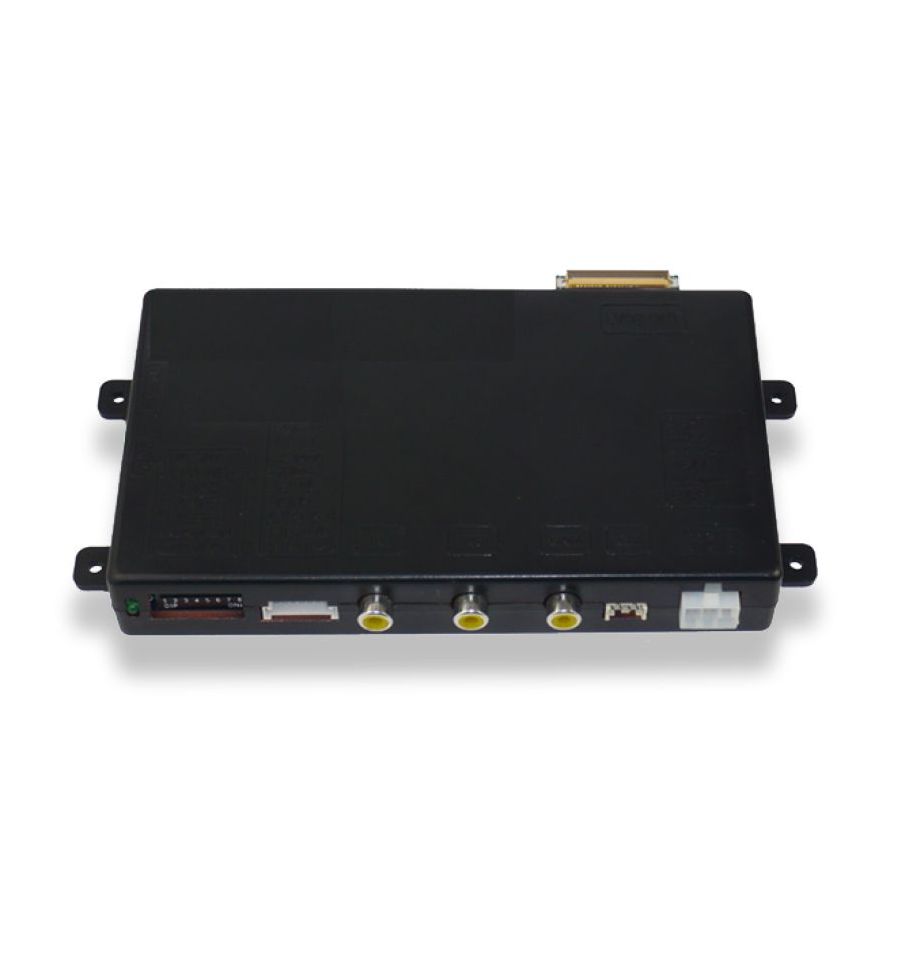

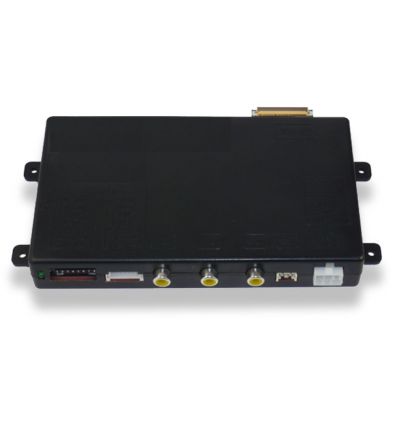

Video interface for Volkswagen RNS510


This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the  button on the steering wheel,or the provided switch to change video source (depending by the systems)




Product features:

  • Video-insertion
  • 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Built-in audio-switch (no audio-insertion)
  • Rear-view camera video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible




 Compatibility: RNS510



Limitations:

  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • The interface have to be installed in the monitor panel (the monitor needs to be opened!).



Specifications:

BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.3A@12V
Power consumption2.4W
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Weight195g
Dimensions182 x 24 x 100 mm (B x H x T)

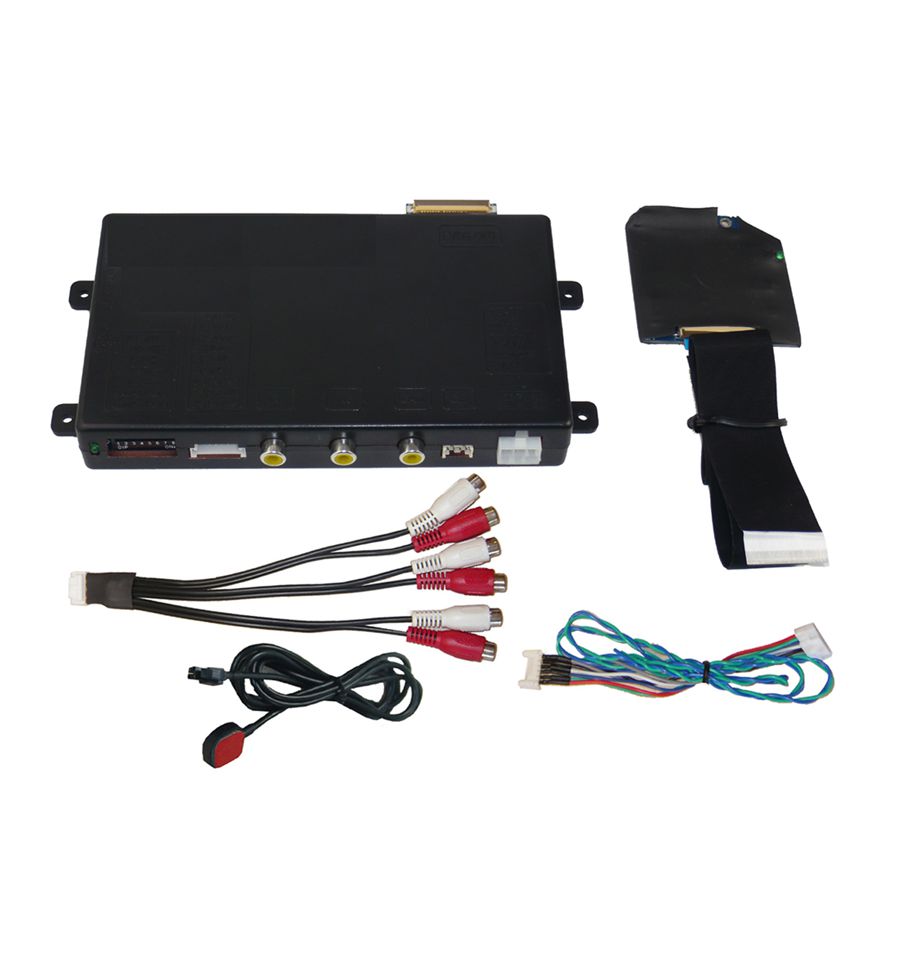

Connections:



FRONTREARLEFT SIDE
Male 8pin connector
(RGB)
flat cable connector (video)Male 4pin connector
(keypad)
Male 6pin Molex connector
(power)
Male 8pin connector (audio)
3 female RCA-ports
(Video IN 1 & 2, RVC)

Male 8pin connector
(no function)




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

VolkswagenAmarok, Passat, Polo 5 6R, Scirocco, Sharan, Tiguan, Touareg, Touran, Transporter T4, Transporter T5, Multivan, LT, Jetta, Bora, Caddy, California, CC, Crafter, Eos, Golf Plus, Golf V (1K), Golf VI (5K)
