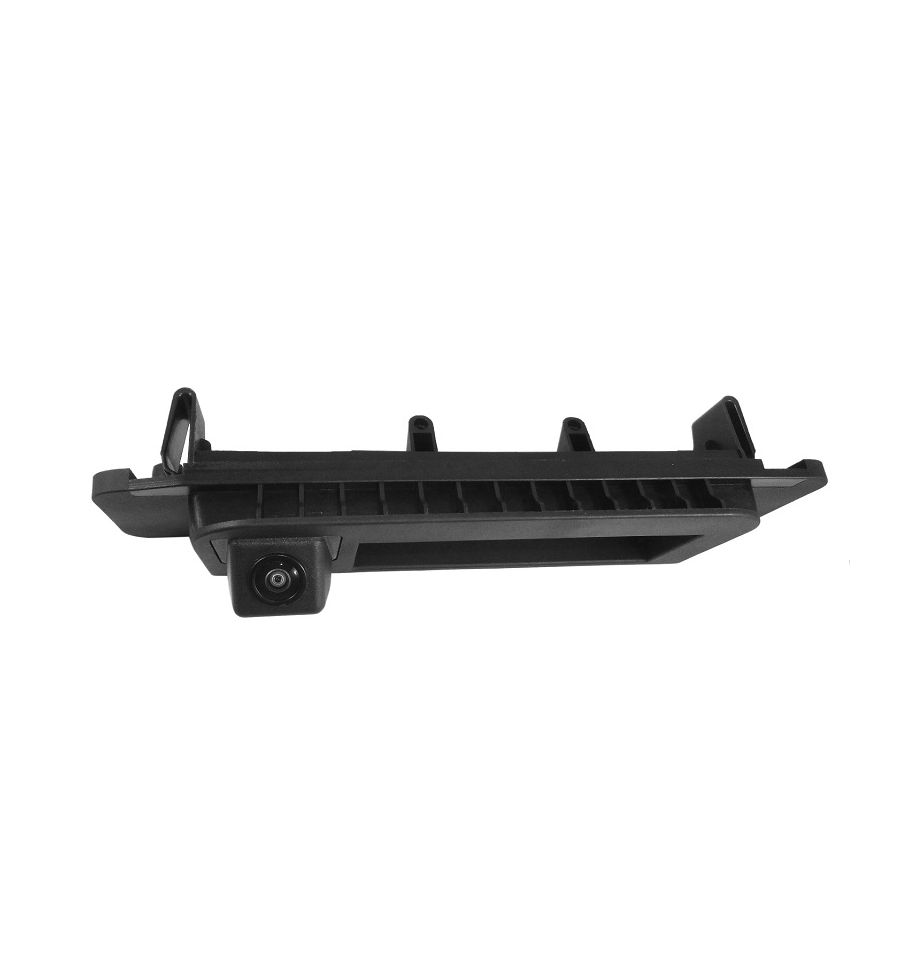

Mercedes Rear-view camera exchange rear door opener handle with guide-lines for Mercedes CI-VSC-E-ME16

Mini-camera with vehicle-specific exchange rear door opener handle with integrated camera and switchable guide-lines.

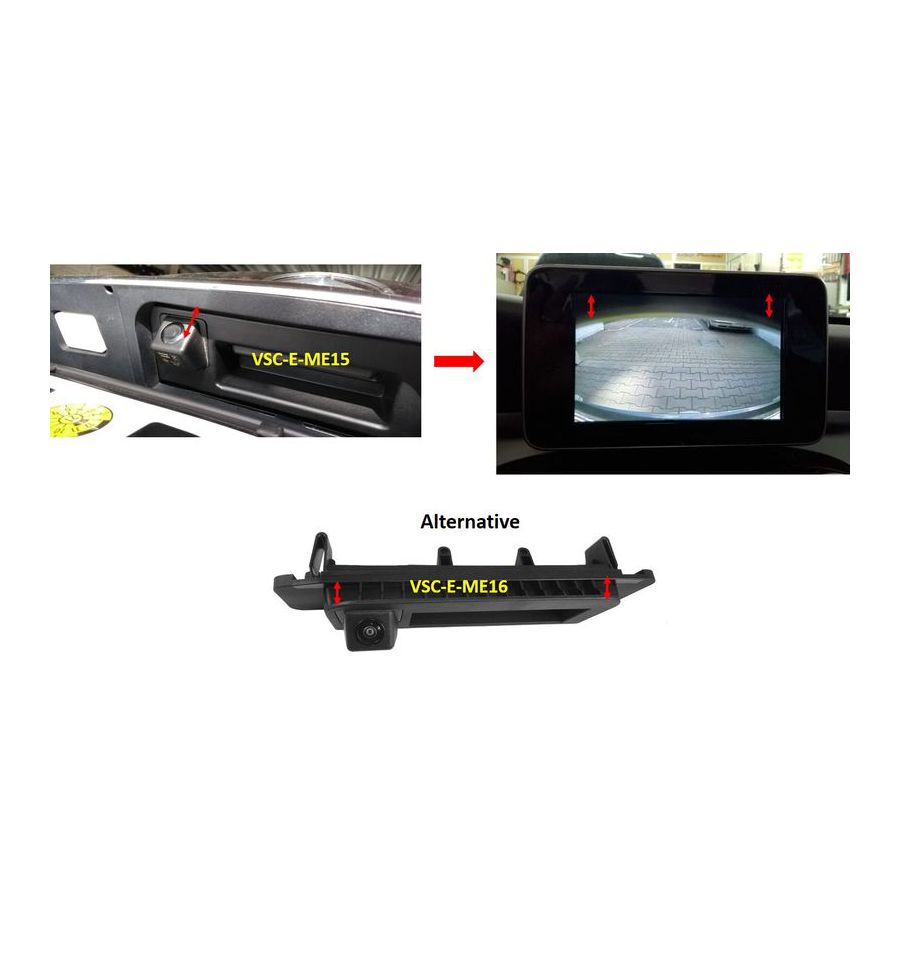

Easy assembling by replacing the factory rear door opener handle.
Professional connector cable with enough length and automotive plug connection.
Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, e.g. power supply or rear-view camera signal.

Compatible with:

• Mercedes classe C (W205)

• CLA (C117)
• E-class (W213/S213)
• S-class (W222)
• SLK (R172)
• SLC (R172)

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Properties:

• 1/3inch CMOS NTSC sensor (PC3089)
• Resolution 720 x 480 pixel (700 TV-lines)
• 0.1 Lux min illumination
• F1.2 aperture
• Angle diagonal 170°, horizontal 130°, vertical 90°
• Mirroring (fixed)
• Parking guide lines, optional disengageable
• Protection class IP68
• Black rear door opener handle and camera

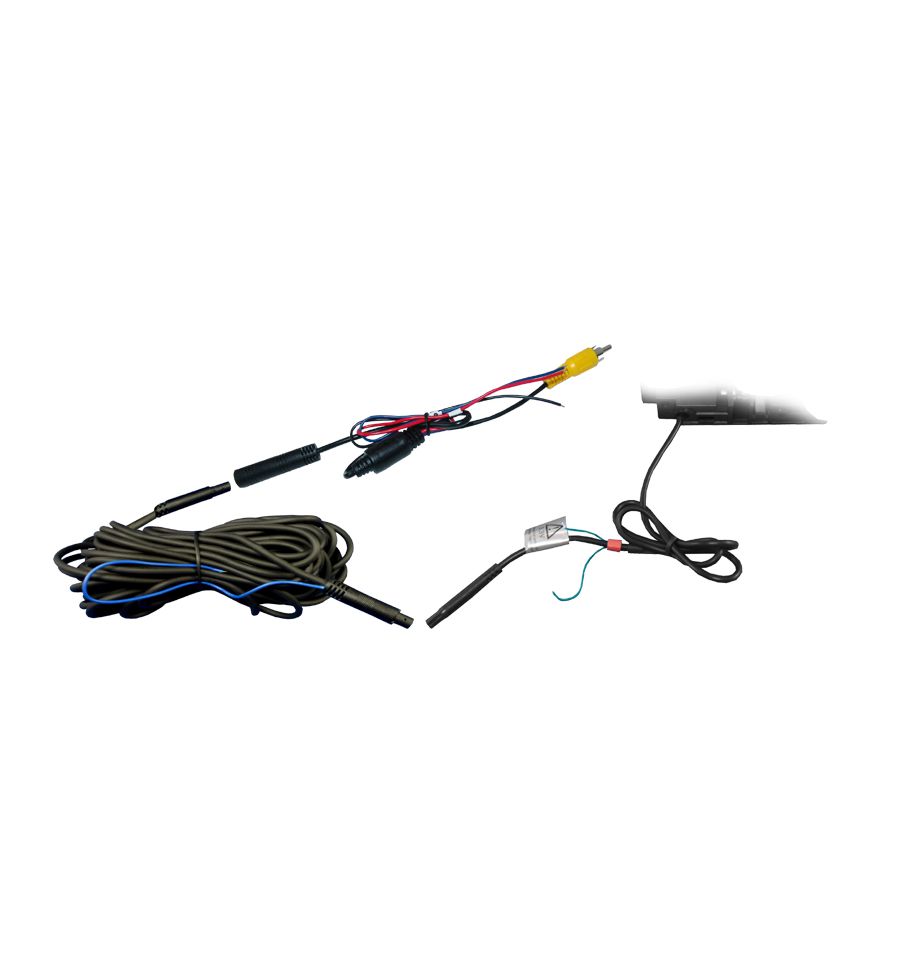

• 1.8m Camera-cable with 4-Pin-BM system-female connector (diameter 5mm)
• 8m Extension cable (4-Pin-BM) with wire for signal throughput
• System-connector system cable 4-Pin-BM with RCA connector and fuse

Dimensions:

• Overall: 196 x 57 x 65mm (W x H x T)
• Build-in hole: 150 x 43mm (W x H)
• Hole spacing: 170 mm
