MERCEDES C,E-class Rear-view camera exchange rear door opener handle with switchable guide-lines
CI-VSC-E-ME14
New

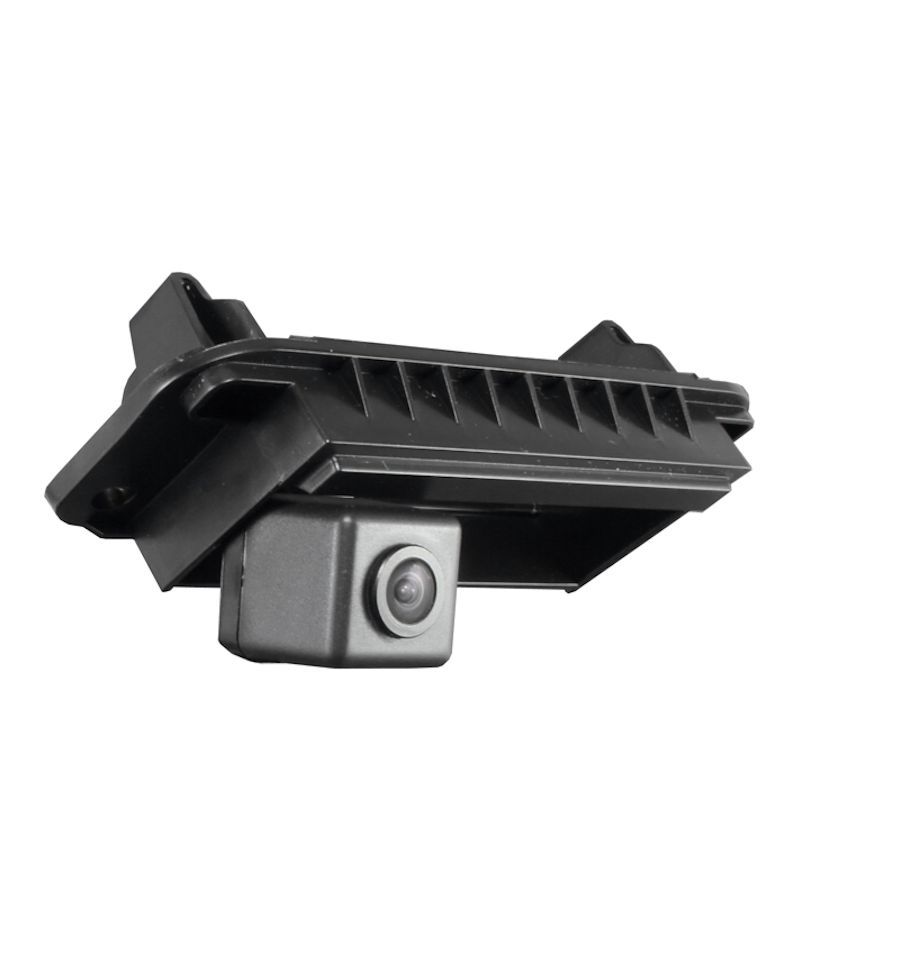

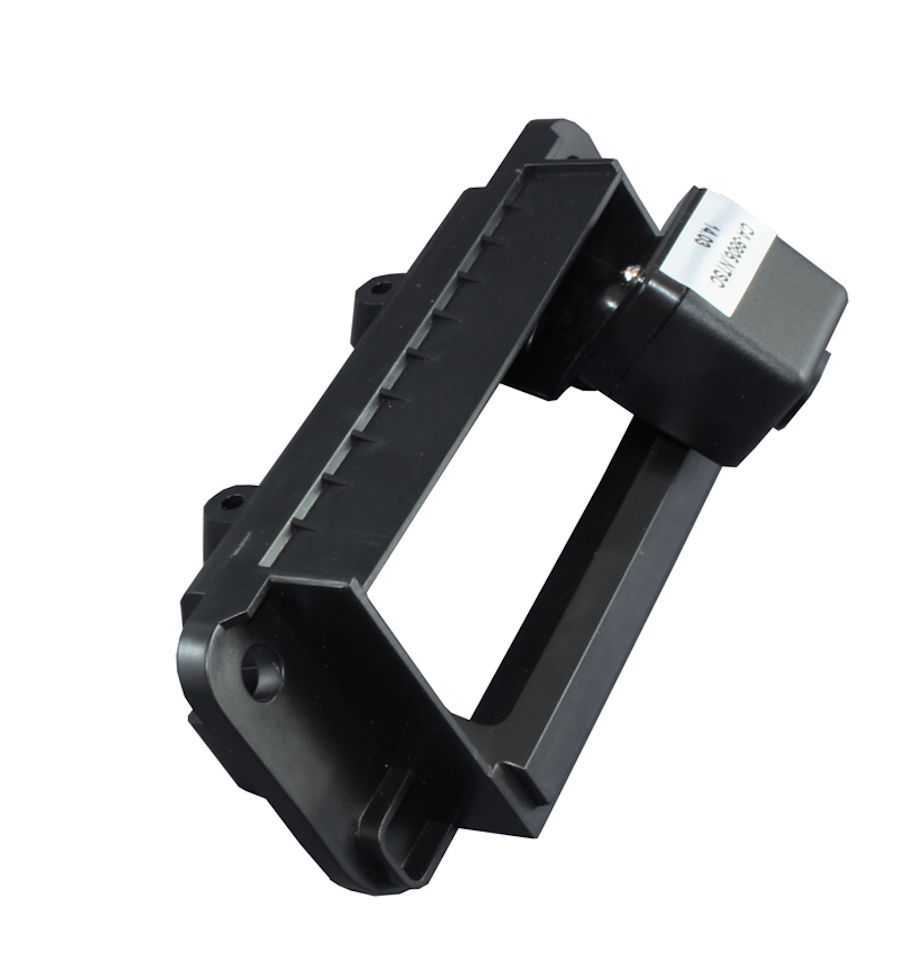

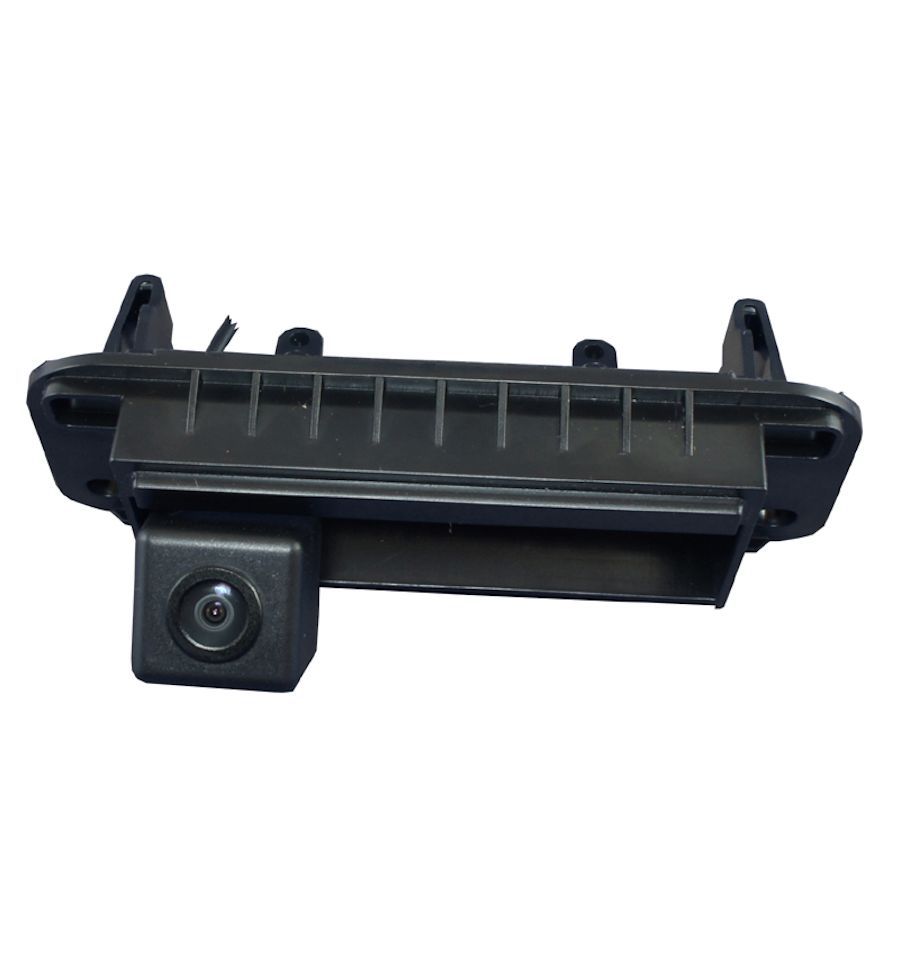

Vehicle specific replaceable tailgate handlebar with integrated rear view camera and switchable guide-lines
Valutazione: Scrivi per primo una recensione!
Mini-camera with vehicle specific tailgate handle.
Simple installation due to replacement with the factory tailgate-doorknob. Professional set of system cables in adequate length and with automotive connectors. Due to connectors with a small diameter the cable can easily be laid. An additional cable core for signal transfer e.g. power supply or reversing signals. Guidelines can be disabled.
Compatible with:
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
Dimensions:
Simple installation due to replacement with the factory tailgate-doorknob. Professional set of system cables in adequate length and with automotive connectors. Due to connectors with a small diameter the cable can easily be laid. An additional cable core for signal transfer e.g. power supply or reversing signals. Guidelines can be disabled.
Compatible with:
- Mercedes Benz C-class (W204/S204)
- Mercedes Benz E-class (S212)
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
- 1/3inch CMOS NTSC sensor (PC3089)
- Resolution 720 x 480 pixel (700 TV-lines)
- 0.1 Lux min illumination
- F1.2 aperture
- Angle diagonal 170°, horizontal 130°, vertical 90°
- Mirroring (fixed)
- Parking guide lines, optional disengageable
- Protection class IP68
- Black rear door opener handle and camera

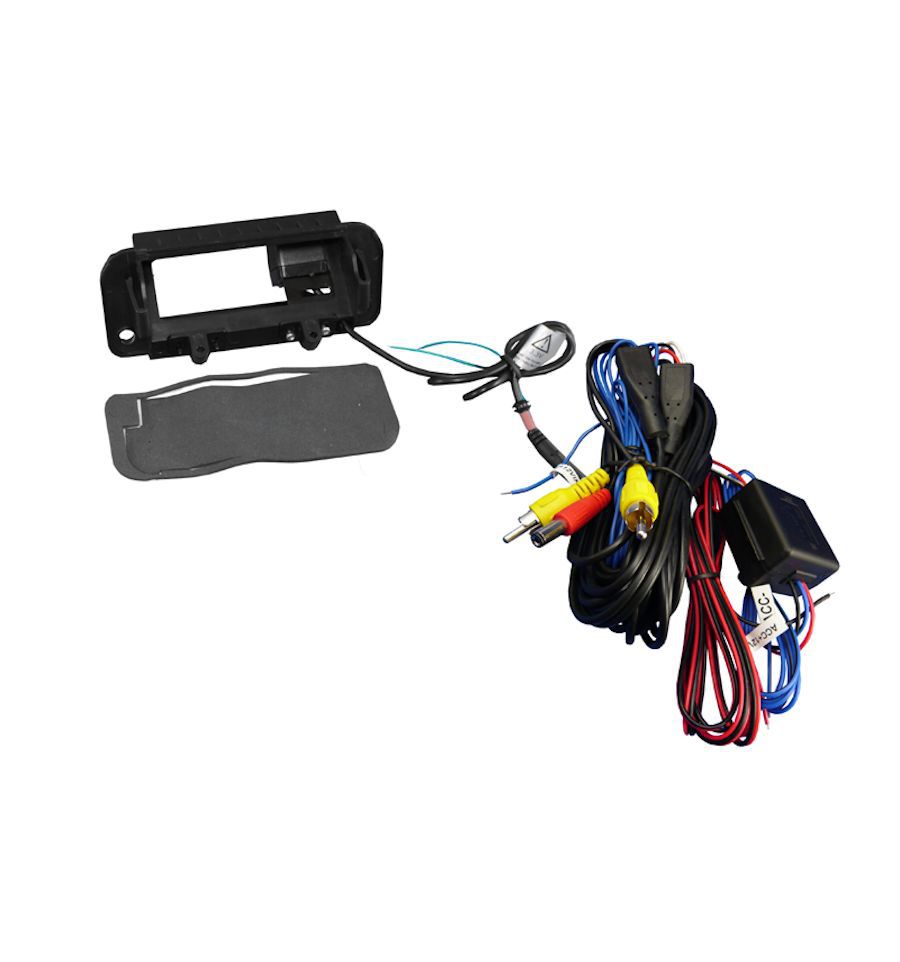

- 1.8m Camera-cable with 4-Pin-BM system-female connector (diameter 5mm)
- 8m Extension cable (4-Pin-BM) with wire for signal throughput
- System-connector system cable 4-Pin-BM with RCA connector and fuse
Dimensions:
- Overall: 215 x 53 x 65mm (W x H x D)
- Build in hole: 131 x 42mm (W x H)
| Operating voltage | 12V DC (6V~16V) |
| Current consumption | 40mA |
| Power consumption | 0.5W |
| Operating temperature range | -20°C to +70°C |
| Operating temperature range | -40°C to +85°C |
| Weight incl. cable approx. | 260g |
| Mercedes | C Class W204, E Class W212 |
| Category | Cameras RVC |
