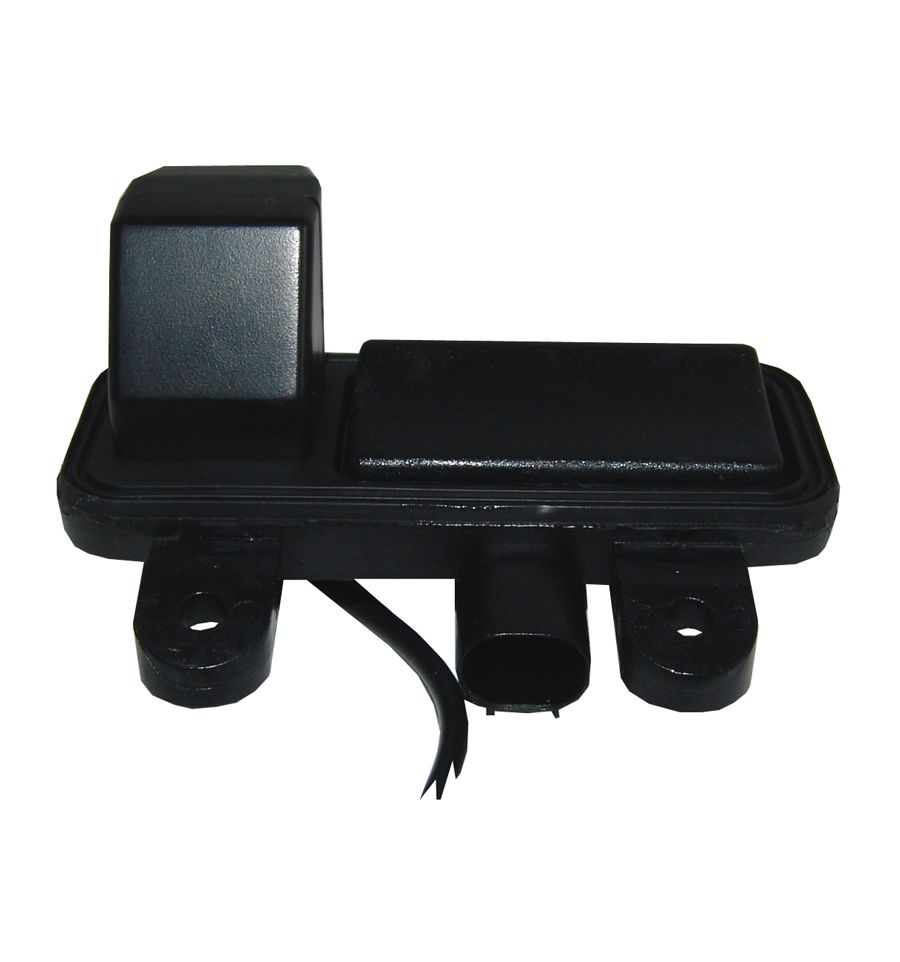

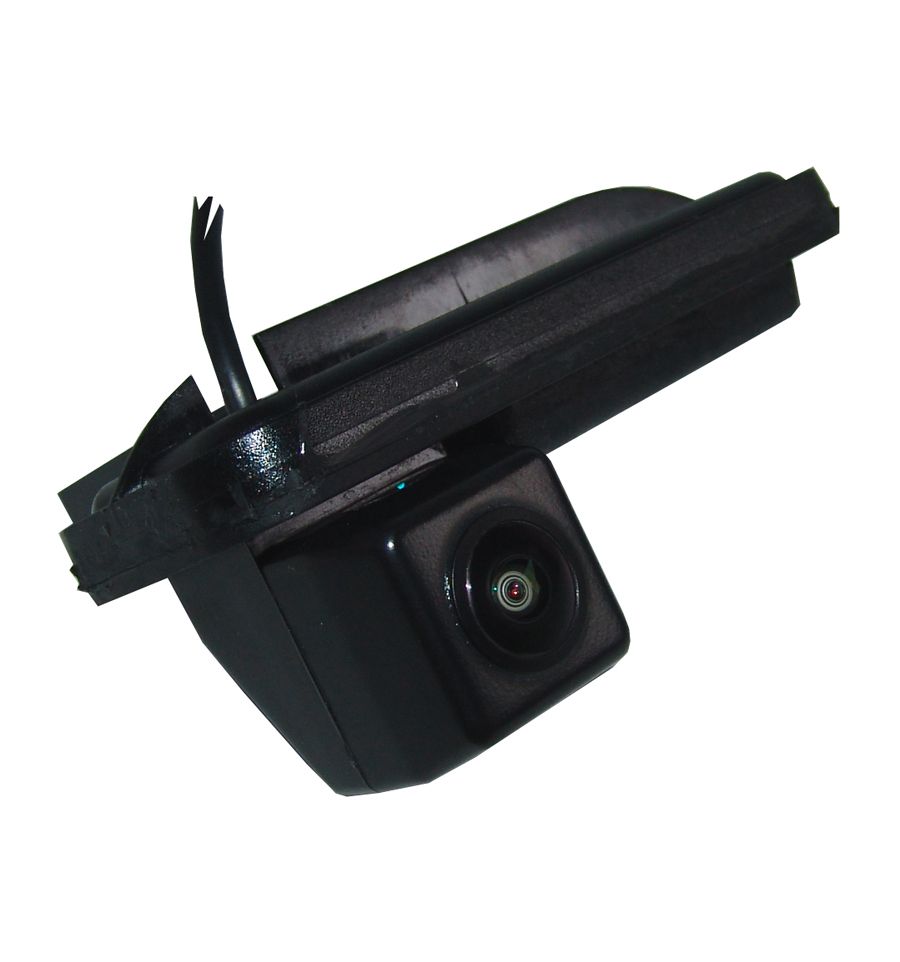

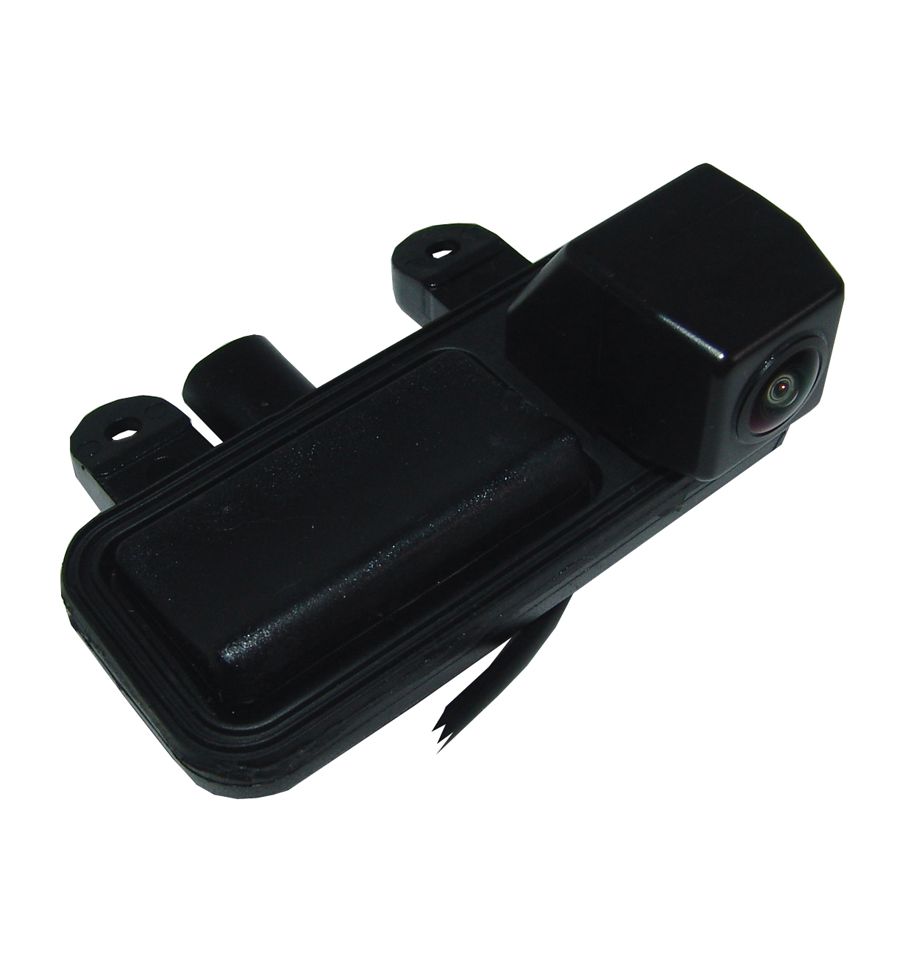

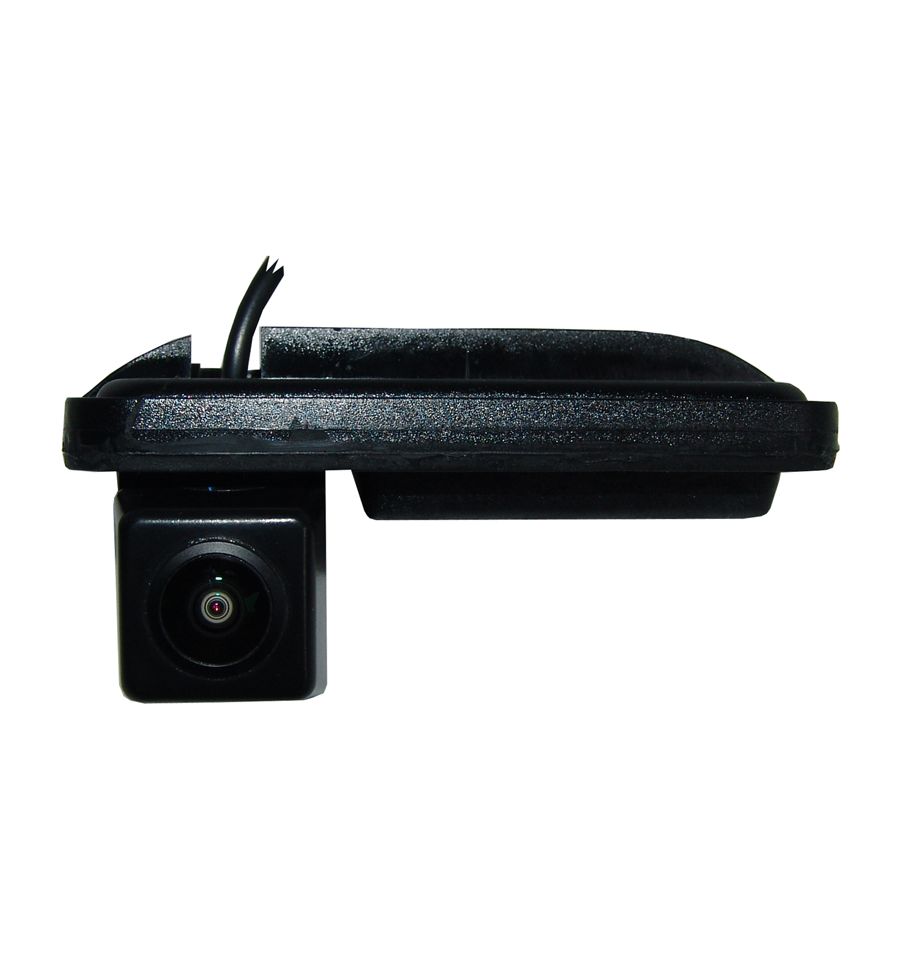

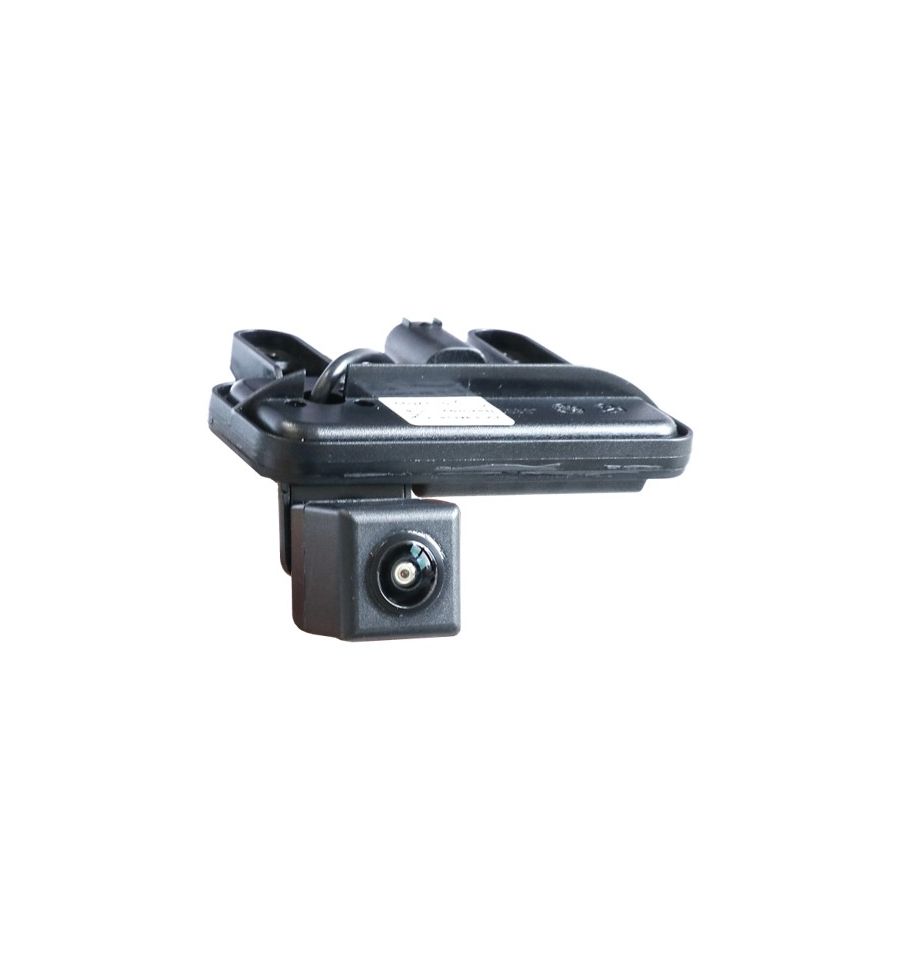

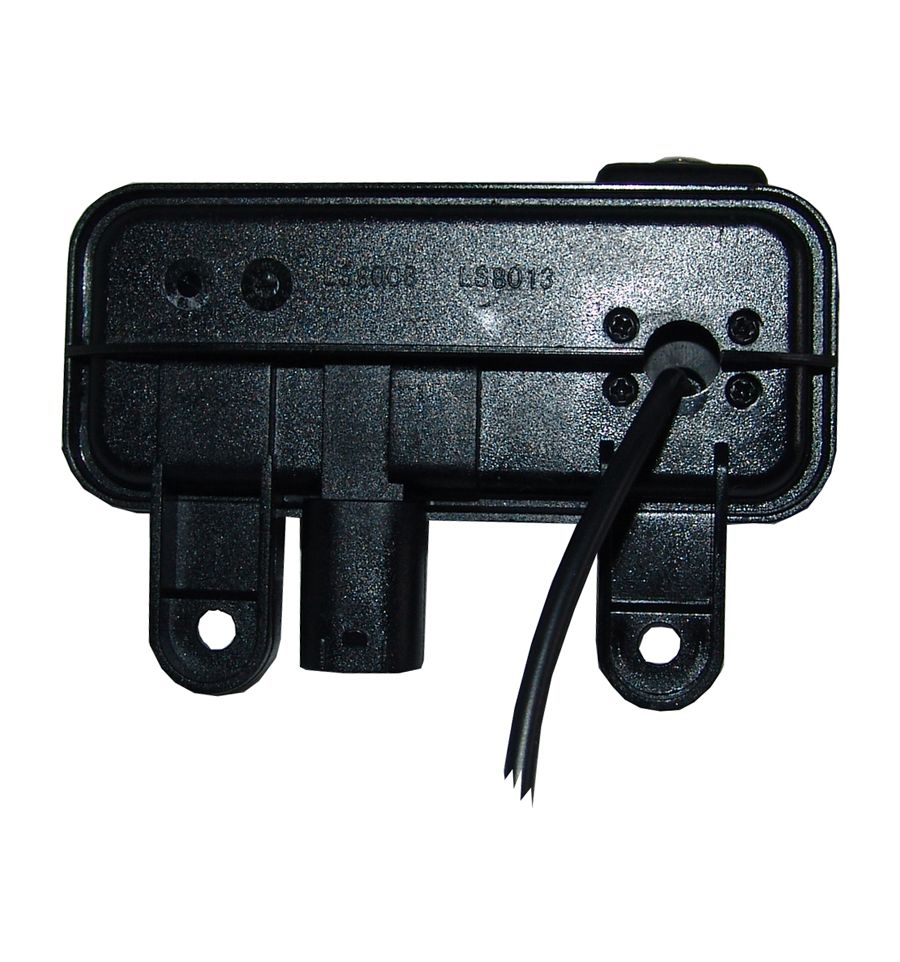

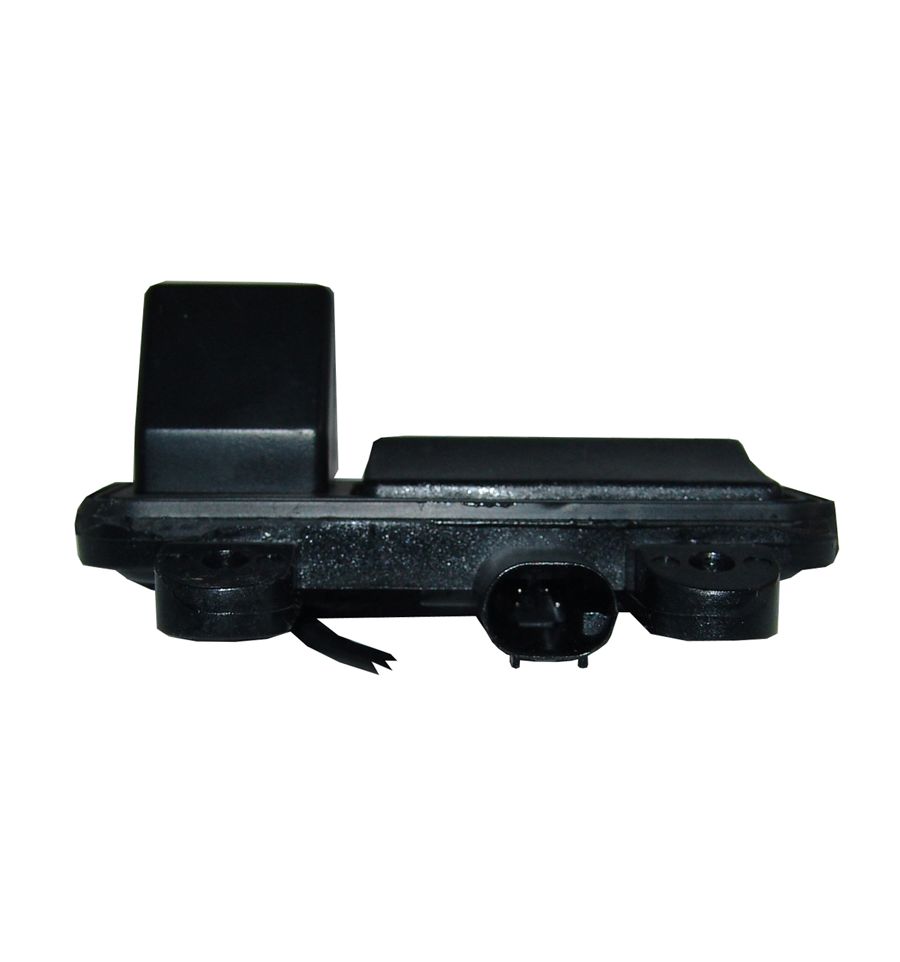

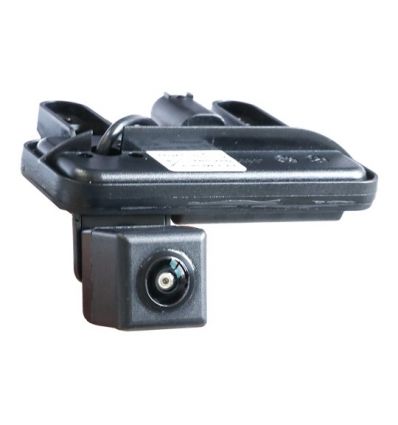

Mercedes Rear-view camera exchange rear door opener handle with guide-lines for Mercedes Mercedes A/B/CL/CLS/E/S

Mini-camera with vehicle-specific exchange rear door opener handle with integrated camera and switchable guide-lines.
Easy assembling by replacing the factory rear door opener handle.
Professional connector cable with enough length and automotive plug connection.
Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, e.g. power supply or rear-view camera signal.

Compatible with:

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Properties:

• 1/3inch CMOS NTSC sensor (PC3089)
• Resolution 720 x 480 pixel (700 TV-lines)
• 0.1 Lux min illumination
• F1.2 aperture
• Angle diagonal 170°, horizontal 130°, vertical 90°
• Mirroring (fixed)
• Parking guide lines, optional disengageable
• Protection class IP68
• Black rear door opener handle and camera

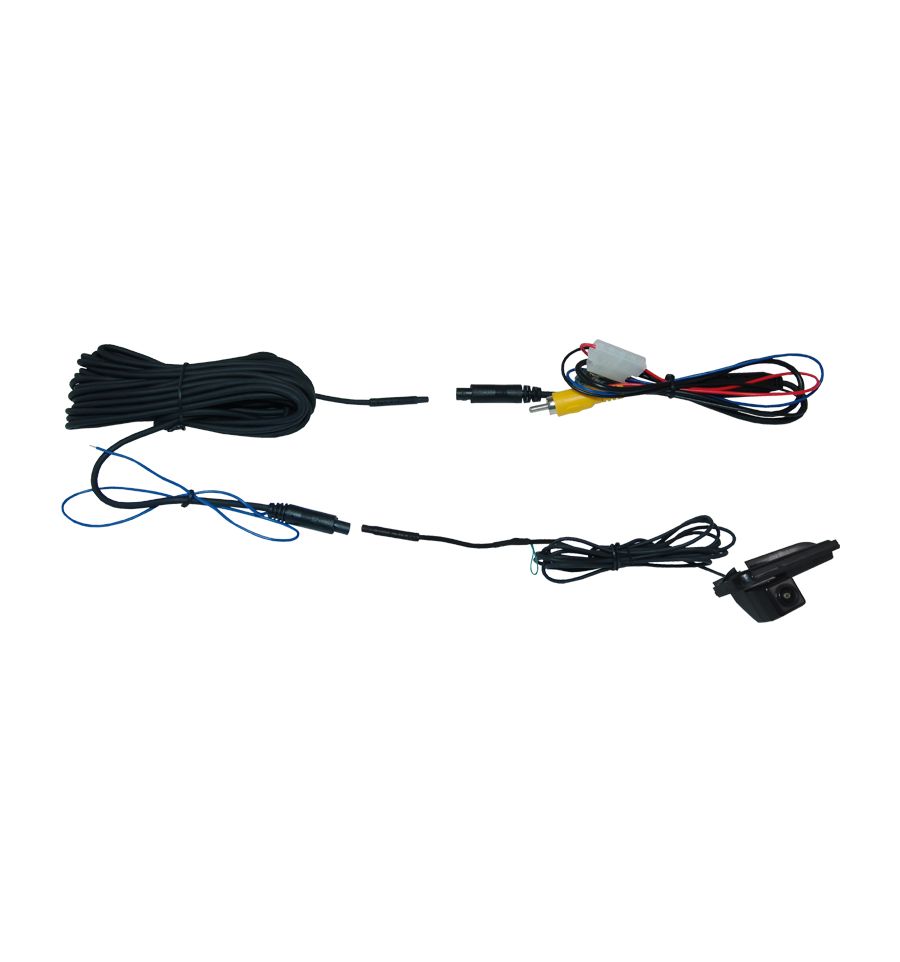

• 1.8m Camera-cable with 4-Pin-BM system-female connector (diameter 5mm)
• 8m Extension cable (4-Pin-BM) with wire for signal throughput
• System-connector system cable 4-Pin-BM with RCA connector and fuse

Dimensions:

• Overall: 89x37x88mm (W x H x T)

• Build-in hole: 89x59mm (W x H)
