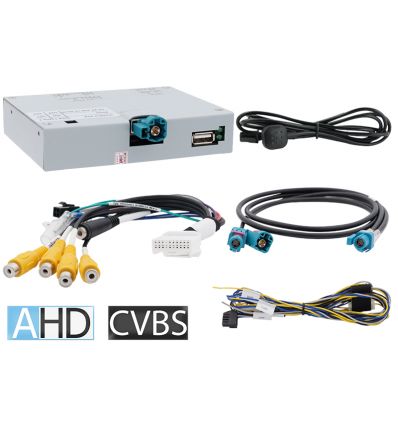

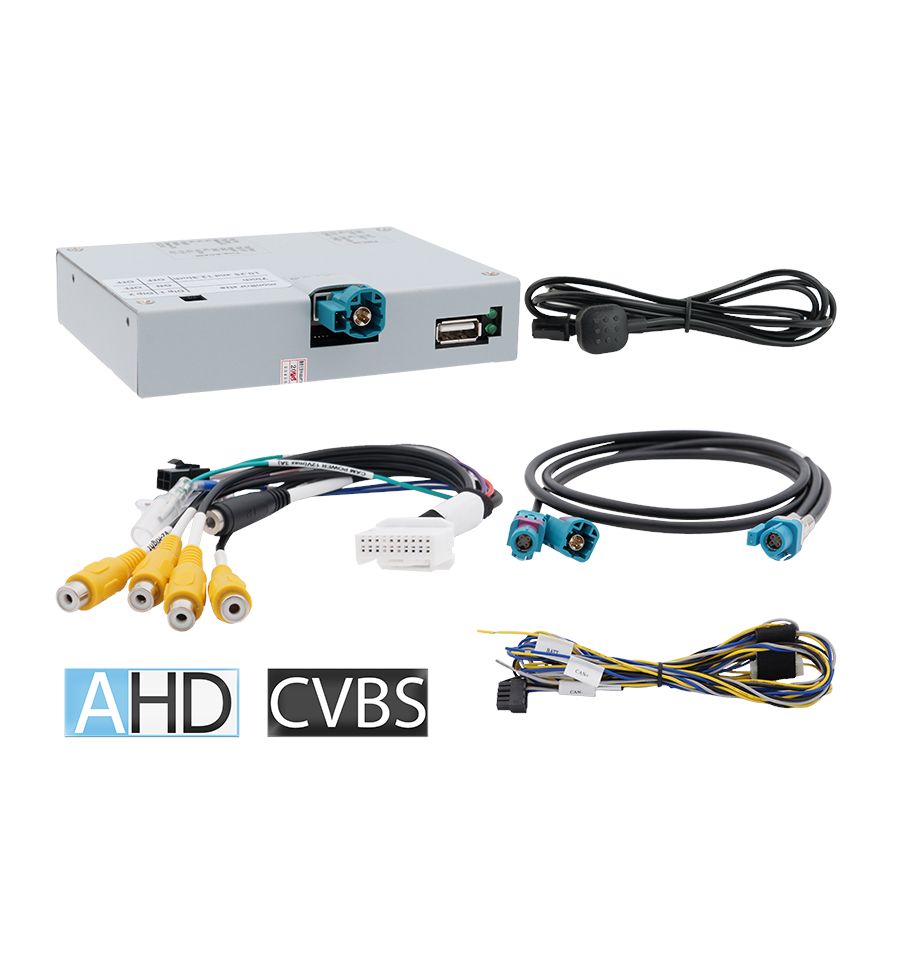

Opel NAC 10.25" AHD video interface with rear and front camera input Expand

Opel NAC 10.25" AHD video interface with rear and front camera input

Opel Opel

CI-RL4-NAC12-A-OP

New

RVC AHD video interface for rear view and front camera for Opel NAC 10.25"

More details

€ 327,05

tax incl.

RVC AHD video interface for rear view and front camera for Opel NAC 10.25"


This interface allows you to integrate a  rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).


Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera AHD/CVBS video-input
  • 1 AHD/CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible




 Compatibility:

ModelRadio / Navigation
  Corsa F from 2019

NAC or RCC with 10.25inch touch monitor.

For Continental High version an additional cable CAB-HSD-MF026 might be required.

  Mokka B 09/2020-
  Grandland 2022-



Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V 25V
Stand.by power drain2.8mA
Power300mA@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions118 x 23 x 105 mm (W x H x D)

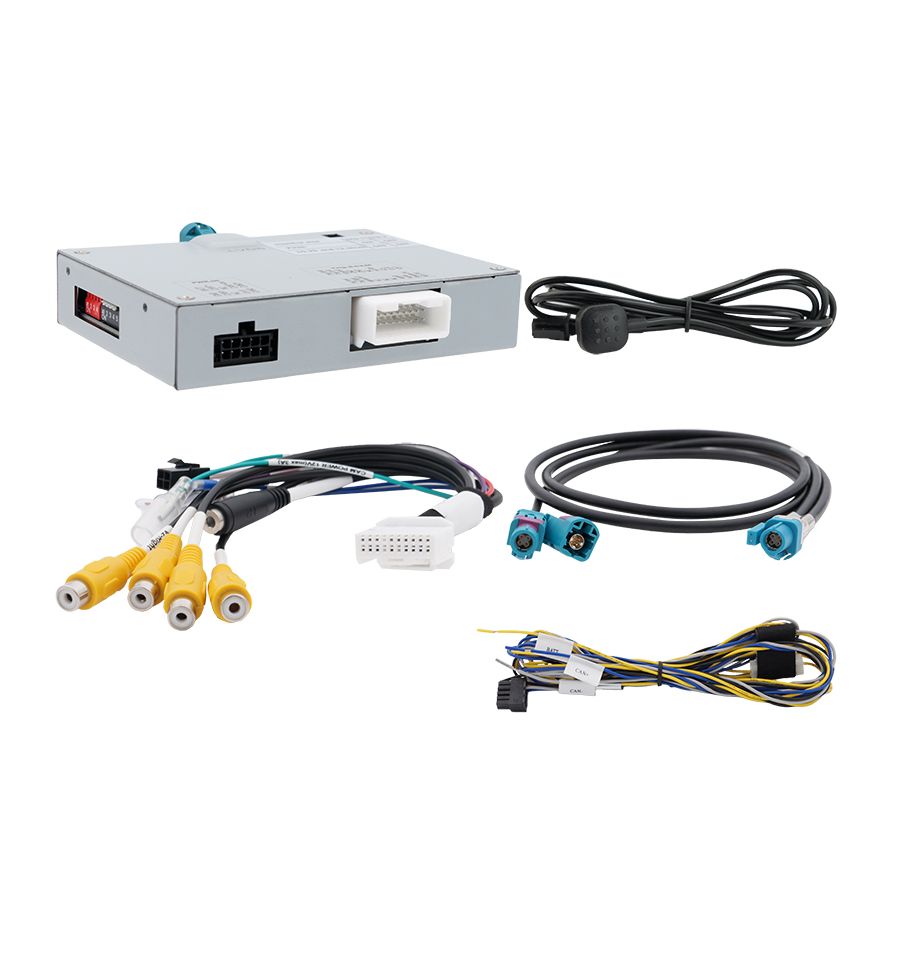

Connectors

  • Video-insertion: 4-pin HSD or double 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view and front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

OpelCORSA
CategoryRear View Camera Interfaces, Video integration
