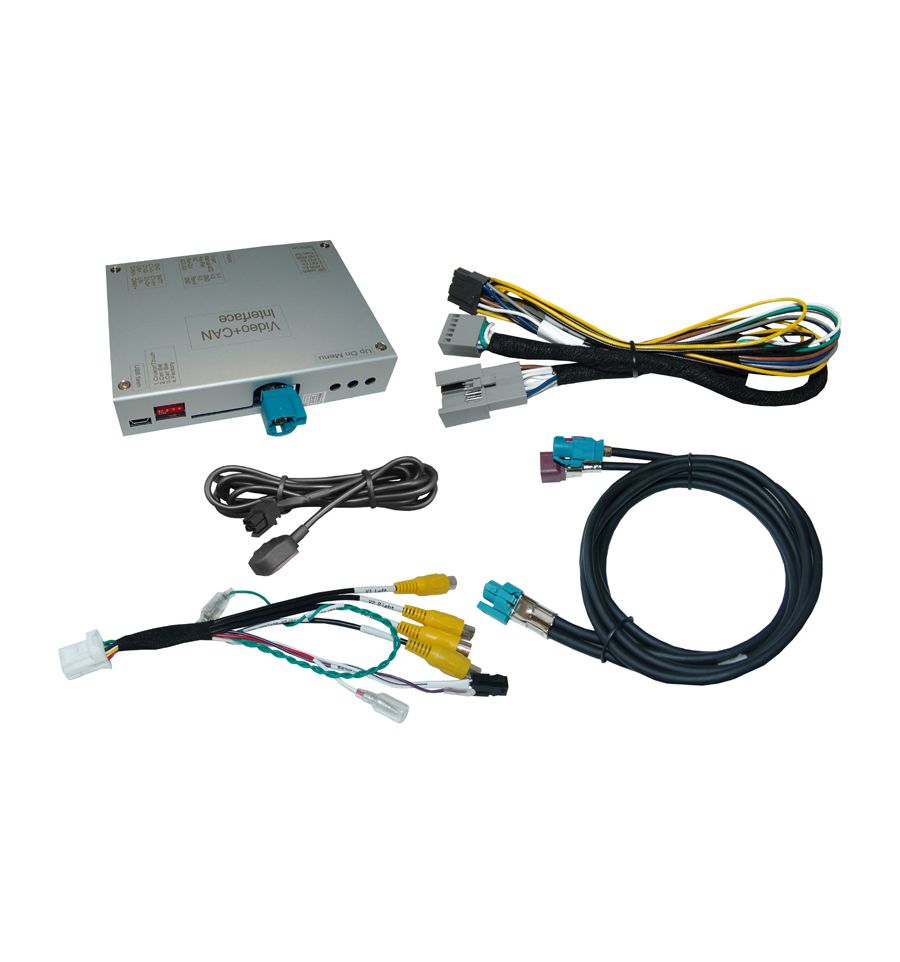

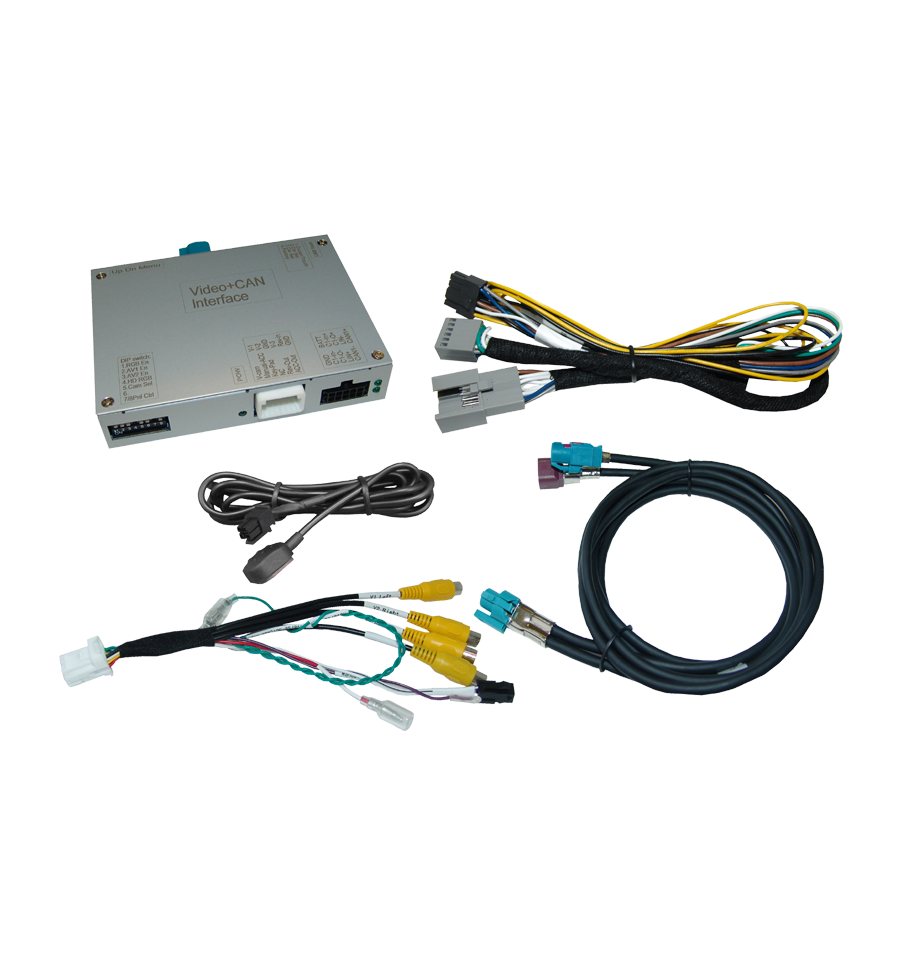

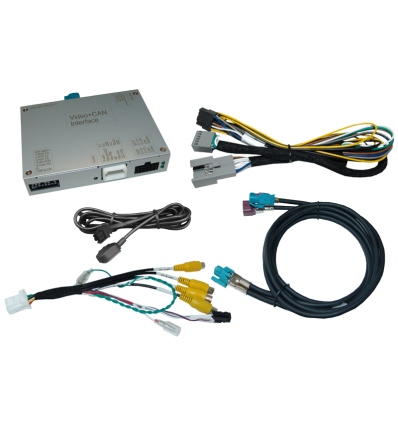

Video interface for Porsche PCM 4.0 with rear and front camera input

The r.LINK interface allows to connect a rear-view camera, front camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.


Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10/15/20 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC and PAL compatible




Compatibility:

ModelNavigation
  911 (991.2 face-lift) da 12/2015

PCM 4.0

  Cayenne E2 (92A) MY2016-2017
  Boxster (982) MY2016 -
  Cayman (982) MY2016
  Macan MY2015-2018
  Altri veicoli con PCM 4.0





Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Picture formatOnly compatible with NTSC
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Factory PDCWith connecting the interface, the former factory PDC graphics won’t apply anymore. Acoustic signals will still be present.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box154 x 22 x 92 mm (W x H x D)


Connections:

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • front-view camera-input: RCA connector



Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Porsche911 (991), Cayenne (E2), Macan
CategoryRear View Camera Interfaces, Video integration
