Video interface for Porsche PCM 3.1

Porsche Porsche

CI-VL2-PCM31

New

Video inserter (interface) Porsche vehicles with PCM 3.1. For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 RGB source and 1 RVC.

More details

shipped in 24 h

€ 479,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video inserter (interface) Porsche vehicles with PCM 3.1. For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 RGB source and 1 RVC.

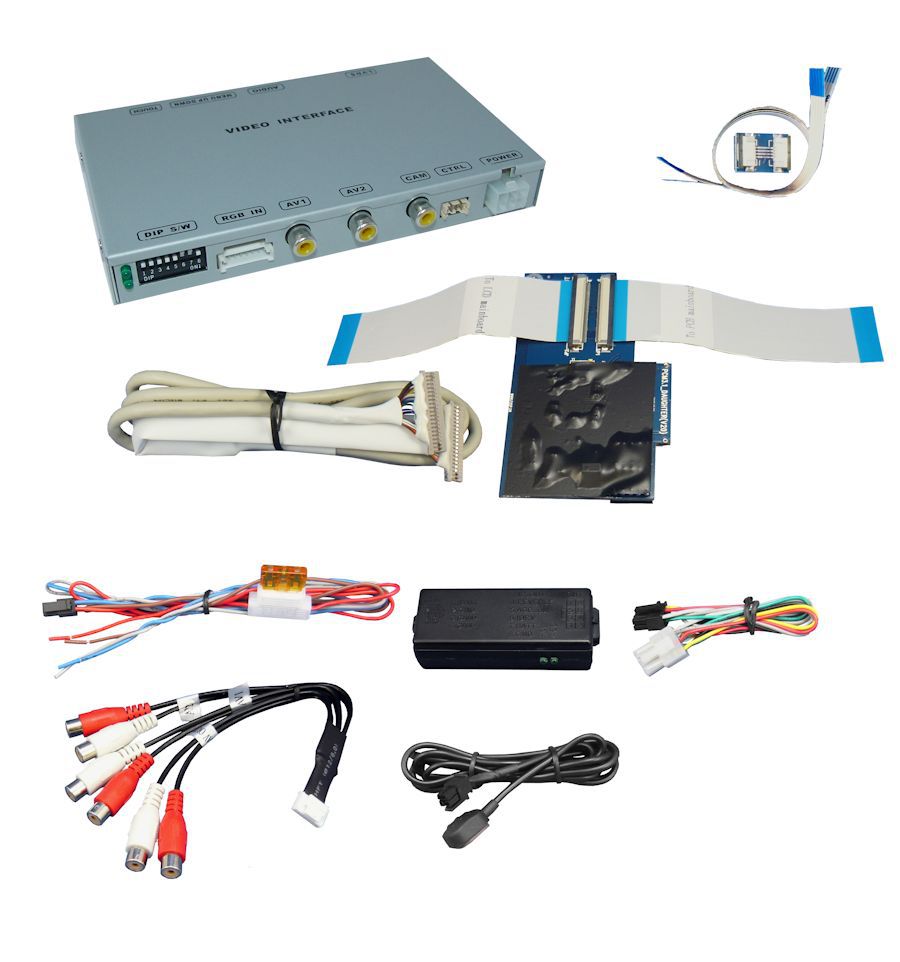

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems):

911 PCM 3.1 Boxster PCM 3.1 Cayenne PCM 3.1 Panamera PCM 3.1


Product features:

  • Video-insertion for factory-infotainment systems
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Built-in audio-switch (no audio-insertion)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs PAL/NTSC compatible




 Compatibility:

Porsche vehicles with PCM 3.1


ModelRadio / Navigation
  911 (991) 09/2011 - 12/2015PCM 3.1
  Panamera  (970) MY2009-2016
  Cayenne E2 ( 92A) MY2011-2015
  Boxster  (981) MY2012-2015
  Cayman  (981c) MY2013-2016
  Macan MY2013-2014

Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

The interface have to be installed in the monitor panel (the cover needs to be opened!).



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.2A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box182 x 24 x 100 mm (B x H x T)
Dimensions CAN-box73 x 22 x 30 mm (W x H x D)

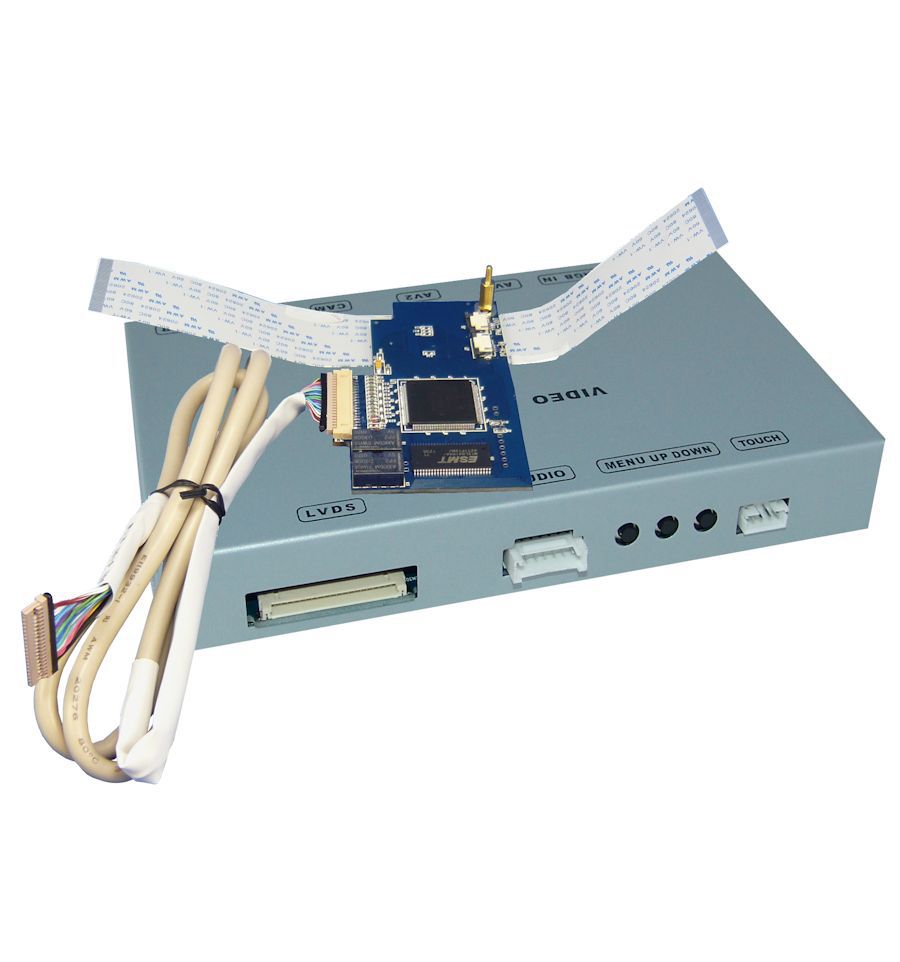

Connections:

  • Video-insertion: ribbon cable
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector
  • Audio-switch: 2-channel RCA connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
