Reverse camera input interface for Volkswagen 26pin Expand

Reverse camera input interface for Volkswagen RNS315 RNS510 RNS310 RCD510

Volkswagen Volkswagen

CI-RL-MFD3-VW

New

RVC- reverse camera input for connection of any video source to the factory navigation system. For Volkswagen RNS315 RNS510 RNS310 RCD510

More details

€ 109,84

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

RVC- reverse camera input for connection of any video source to the factory navigation system. For Volkswagen RNS315 RNS510 RNS310 RCD510

Product features:

  • Plug and play interface
  • Integrated into the vehicle infotainment
  • rear-view camera input (only NTSC cameras)

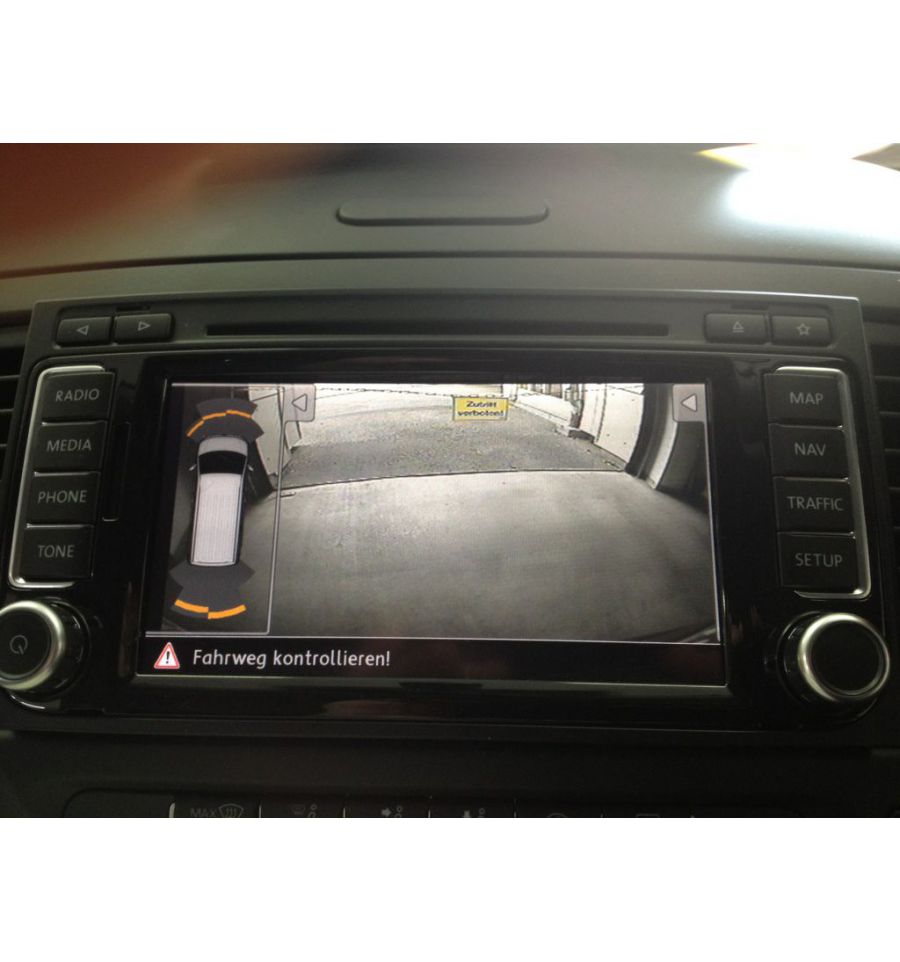

  • Automatic switching to rear-view camera input



Compatibility:

Compatible with all Volkswagen with:
  • RNS510
  • RNS315
( min. requirement navi version B min SW 1100)
  • RNS310
  • RCD510
(Fits ONLY vehicles with 26pin connector on the rear of the head-unit)


Limitations:

Factory TV tunerMust NOT be installed
After-market rear-view cameraCompatible only to the NTSC cameras.
CodingThe head-unit must be coded to rear-view camera per diagnosis computer or the RNS510, RNS315 and the RCD510 with our optional available OBD-coders OBD-VW-R-xx (for OPS, too).
OPSOn vecicles with OPS (optical parking system) the OPS control box must be coded to rear-view camera per diagnosis computer.



Specifications(interface-box)

Operation voltage10.5 – 14.8V
Stand-by power drain0mA
Operation power drain200mA
Power consumption2.8W
Temperature range-30°C to +80°C
Weight53g
Measurements72 x 23 x 50mm (W x H x D)

Connections (Interface-Box)

  • Male 12pin Molex connector

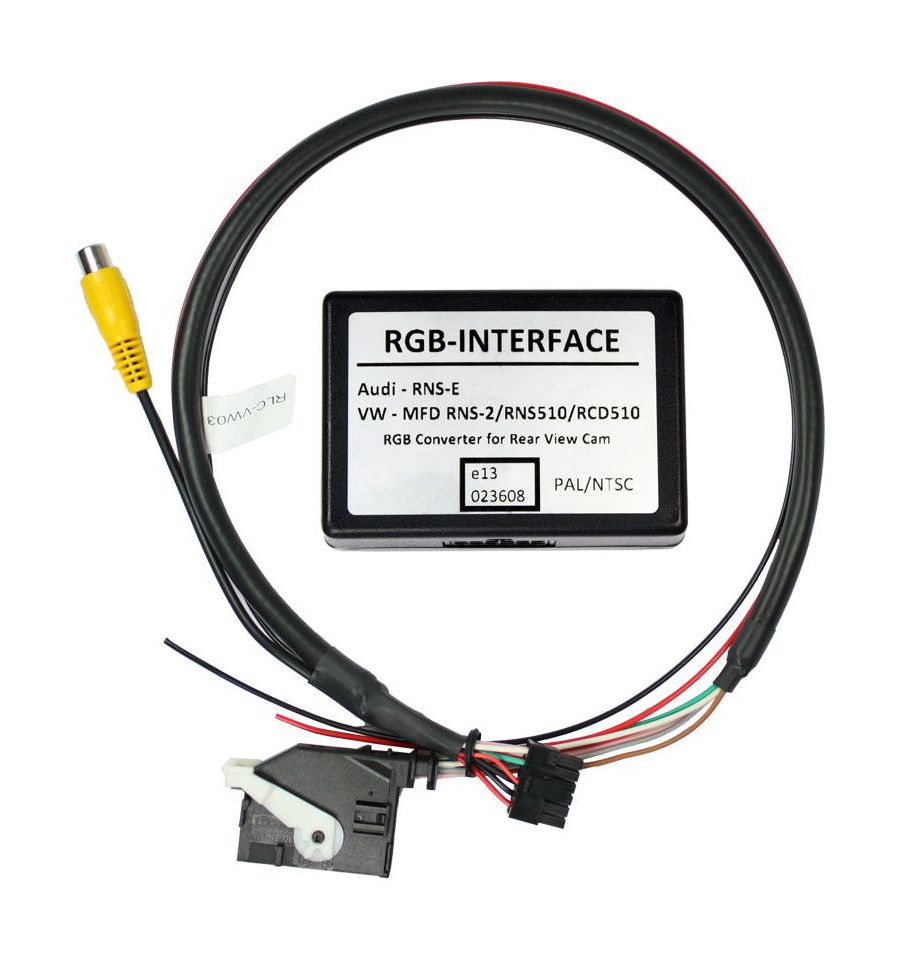

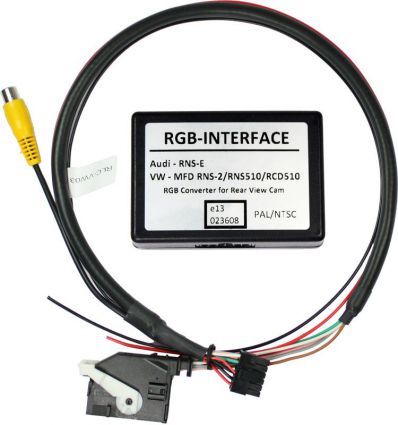

Delivery contents:
  • Interface-box
  • Plug 5 play Harness
VolkswagenAmarok, Lupo, Multivan, Passat, Phaeton, Polo 4 rest. 9N3, Polo 5 6R, Scirocco, Sharan, Tiguan, Touareg, Touran, Transporter T5, LT, Jetta, Beetle, Bora, Caddy, California, CC, Crafter, Eos, Fox, Golf 7 (5G), Golf Plus, Golf V (1K), Golf VI (5K)
CategoryRear View Camera Interfaces
