BMW Professional CCC Audio - Video and reverse camera input interface Expand

BMW Professional CCC Audio - Video and reverse camera input interface

BMW BMW

CI-C1-CCC-BM

New

Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input, video-in-motion and trigger signals.

More details

€ 469,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

The CI-C1-CCC multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible. Video-in-motion is included.


Product features:

  • Full plug and play multimedia interface
  • 1 AV-input with separate IR-control channels
  • Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
  • After-market rear-view camera input
  • Rear-view camera power (+12V max. 1A)
  • Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices
  • Video-in-motion


Compatibility:

Compatible with BMW vehicles with Professional CCC (with older 1/2-button iDrive) navigation system and WITHOUT factory TV-tuner port.

ModelRadio / Navigation
1series (E81/E82/E87/E88)Professional with old iDrive
3series (E90/E91/E92/E93)
5series (E60/E61)
6series (E63/E64)
X5 (E70)
X6 (E71)


Limitations:

Factory TV tunerHas to be removed if installed.
After-market rear-view cameraAutomatic switching to camera only from cLOGiC mode.
Factory PDCIf an after-market rear-view camera should be connected by the c.LOGiC, the visual PDC display must be deactivated occasionally or permanently for camera picture.




Specifications
(interface-box)

Operation voltage10.5 – 14.8V
Stand-by power drain<1mA
Operation power drain120mA
Power consumption1.8W
Temperature range-30°C to +80°C
Weight95g
Measurements106 x 30 x 71 mm (W x H x D)

Connections (Interface-box)

FRONTREAR
3 female RCA connector (2x Audio In, Video In)male 4pin Molex connector
male 8pin Molex connector
Female MOST®-connector

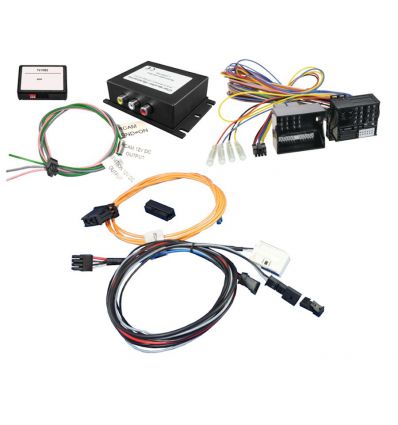

Delivery contents:
  • Interface-box
  • Plug & play Harness




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

BMWSerie 1 E81 82 87 88, Serie 3 E90 91 92 93, Serie 5 E60 61, Serie 6 E63-64, X5 E70, X6 E71
CategoryRear View Camera Interfaces, Video integration, Video in Motion
