Video interface for Audi MMI Navigation (Plus) MMI Touch Response Expand

Video interface for Audi MMI Navigation (Plus) MMI Touch Response 8.8inch or 10.1inch monitor

Audi Audi

CI-RL4-MIB88-AU

New

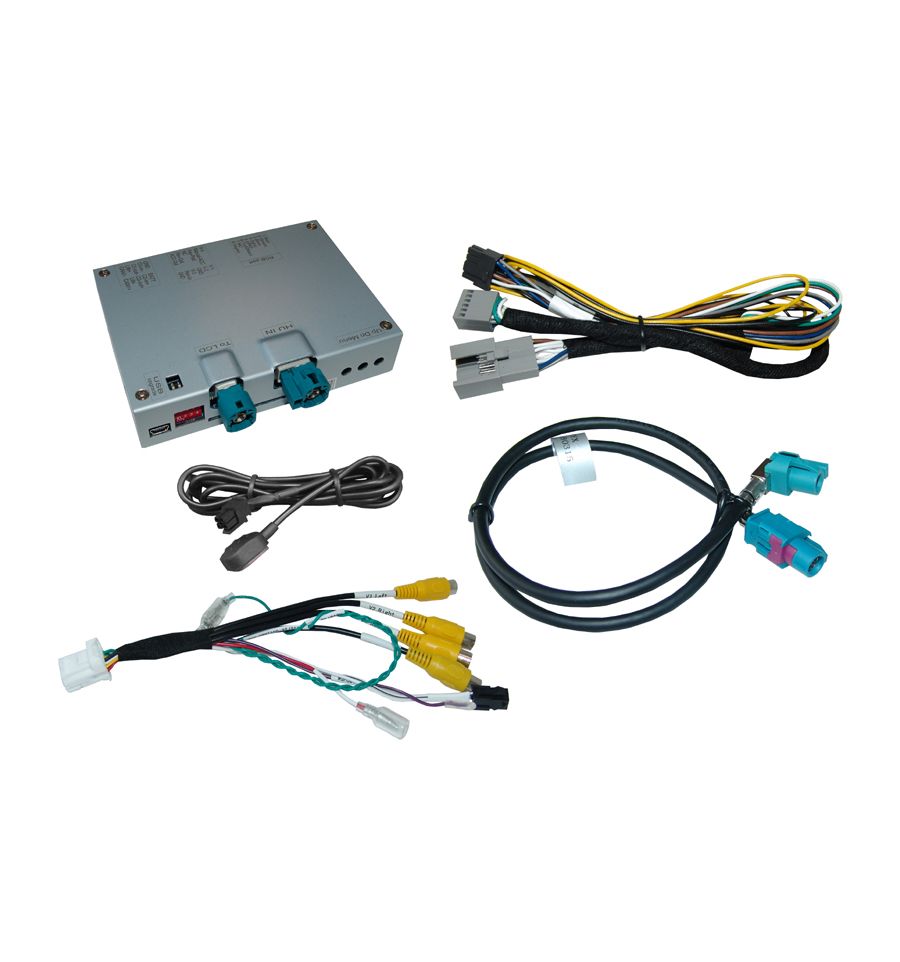

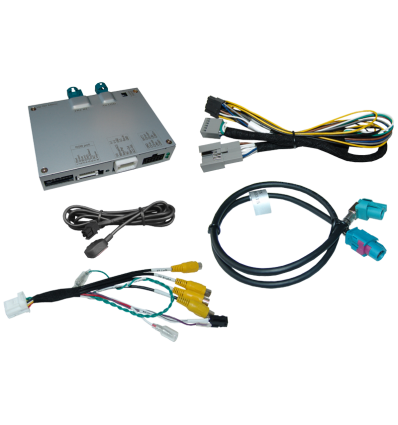

Video Interface with rear-view camera and 2 video-sources for MMI Radio Plus and MMI Navigation (Plus) with MMI Touch Response - 8.8inch or 10.1inch monitor

More details

shipped in 24 h

€ 376,23

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video Interface with rear-view camera and 2 video-sources for MMI Radio Plus and MMI Navigation (Plus) with MMI Touch Response - 8.8inch or 10.1inch monitor

The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.


Product features:

  • Video-insertion for factory-infotainment systems
  • 1 Back camera CVBS video-input
  • 1 CVBS Input for front camera
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
  • Video-inputs NTSC compatible only




 Compatibility:

ModelloRadio / Navigazione
  A3 (8Y) 03/2020-

MMI Radio Plus and MMI Navigation (Plus) with MMI Touch Response - 8.8inch or 10.1inch monitor

Not compatible to vehicles with factory DVD-player!

  A4 Facelift (8W) 05/2019-
  A5 Facelift (F5) 10/2019-
  A6 (4K) 06/2018-
  A7 (4K) 02/2018-
  A8 (4N) 11/2017-
  Q7 Facelift (4M) 09/2019-
  Q8 (4M) 07/2018-
  e-tron (GE) 03/2019-
  Q4 e-tron 03/2021-

MMI Navigation or MMI Navigation (Plus) with MMI Touch Response MIB3 High/Premium - 10.1inch monitor

Not compatible to vehicles with factory DVD-player!

  Q4 Sportback e-tron 03/2021-
  Q5 (FY) 09/2020-
  Q5 Sportback (FYT) 03/2021-
  A1 (GB) 11/2018-

MMI Radio Plus or MMI Navigation or MMI Navigation (Plus) with MMI Touch Response MIB3 High/Premium   - 8.8inch or 10.1inch monitor

Not compatible to vehicles with factory DVD-player!

  Q3 (F3) 08/2018-



Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.

Only compatible with NTSC.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

With connecting the interface, the former factory PDC graphics won't apply anymore. Acoustic signals will still be present.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box119 x 25 x 103 mm (W x H x D)




Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • front-view camera-input: RCA connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

AudiA1, A1 GB, A6 4K, A7 4K, A8 4N, Q3, Q8 4M
CategoryRear View Camera Interfaces, Video integration
