Camera interface compatible with Mercedes Benz vehicles generation NTG4.5 with Comand Online or Audio20.
For a connection of a rear-view camera and a front-camera.
Camera Interface for MERCEDES BENZ with Comand Online NTG4.5 and Audio20 NTG4.5.
This interface allows you to connect a rear-view camera and a front camera to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the user needs and switched back to previous video after the parking maneuver is finished.
Product features:
- Plug & play camera interface
- Own on-screen display and setup
- No coding necessary
- 1 rear-view camera input
- 1 front camera input
- 2 trigger outputs (+12V max. 1 A), separately adjustable switching events
- Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
- Automatic switching to front camera on parking maneuver, automatic return at 20 km/h
- Interactive lane lines
- Manual switching to rear-view camera
- Manual return from rear-view and front camera (cancellation of automatic switching)
- Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
- USB update-port for software-updates by consumer
Compatibility:
Compatible to Mercedes Benz vehicles with Comand Online NTG4.5 and Audio 20 NTG4.5 with 4pin HSD LVDS connector.
| Model | Radio/Navigation |
| A-class (W176) 07/2012 - 08/2015 | Comand Online NTG4.5 Audio 20 NTG 4.5 |
| B-class (W246) 11/2011 - 10/2015 | |
| C-class (W204) 03/2011 - 10/2014 | |
| C-class Coupe (C204) 06/2011 - 2014 | |
| CLA-Coupe (C117) 01/2013 - 09/2014 | |
| CLS-Coupe (C218) 06/2011 - 07/2014 | |
| E-class (S/W212) 06/2011 - 10/2014 | |
| E-class Coupe (C207) 06/2011 - 05/2015 | |
| G-Model (G463) 07/2012 - 09/2016 | |
| GL-class (X166) 11/2012 - 08/2016 | |
| GLA-class (X156) 09/2013 - 08/2015 | |
| GLK-class (X204) from 01/2011 | |
| ML-class (W166) 11/2011 - 07/2015 | |
| SLK-class (R172) 03/2011 - 2015 | |
| SL-class (R231) 2012 - 09/2015 |
Specifications:
| Operation voltage | 10.5V – 14.8V |
| Stand-by power drain | <0.1mA |
| Operation power drain | 190mA |
| Power consumption | 2.6W |
| Temperature range | -20°C to +80°C |
| Weight | 285g |
| Video box dimensions | 141 x 30 x 105 mm (L×W×D) |

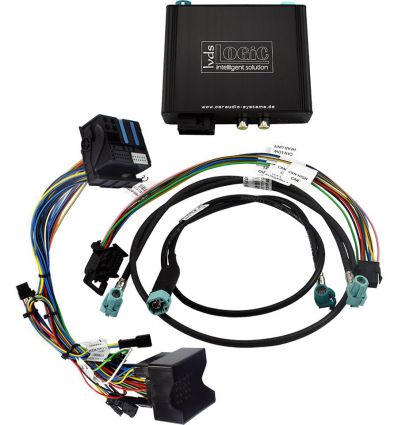

Delivery content:
- Interface box V5C-M613
- Harness V5C-MBN45
- Harness V5C-UNI01
- LVDS cable CAB-HSD-MR-060-OZ
- LVDS cable CAB-HSD-DD075-O
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Mercedes | CLA Coupè C117, GLA X156, CLS Coupè C218, SLK Class R172, SL Class R231, ML Class W166, GLK Class X204, GL Class X166, E Class W212, E Class Coupè C207, C Class W204, C Class Coupè C204, B Class W246, A Class W176 |
| Category | Rear View Camera Interfaces |
