Mercedes MBUX video interface with front, rear and side camera inputs

The v.LOGiC camera interface allows to connect a rear-view camera and a front camera and side cameras to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished.


 Product features:


  • Interactive lane lines with calibration function
  • Own on-screen display and setup
  • Rear-view camera input
  • Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
  • Front camera input
  • 2 Side camera inputs
  • Side- or front camera activation via blinker signal
  • Manual switching to cameras
  • 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
  • Compatible with all factory video accessories
  • USB update-port for software-updates by consumer



Compatibility:



ModelloRadio/Navigazione
A-class (W177) from 05/2018Comand Online NTG6 - MBUX
with 7inch with navigation or 10.25inch monitor with 26pin connector
B-class (W247) from 12/2018
CLA Coupé (C118) from 03/2019
CLA Shooting B (X118) from 07/2019
EQC (N293) from 2019
GLB (X247) from 09/2019
GLC (X253) from MY2019
GLE Coupé (C167) from MY2019
GLE SUV (W167) from MY2019
GLS-Klasse (X166) from MY2019
Sprinter (W907/910) from MY 2018
V-class (W447) from 03/2020




Limitations:

  • The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.


Specifications:

Operation voltage10.5V - 14.8V
Stand-by power drain1mA
Operation power drain190mA
Power consumption2.6W
Temperature range-20°C bis +80°C
Dimensions video-box141 x 30 x 105mm (W x H x D)



Connections:

  • Video insertion: 2X Fakra
  • Power: cable p&p
  • Video-inouts (4x): female RCA connector

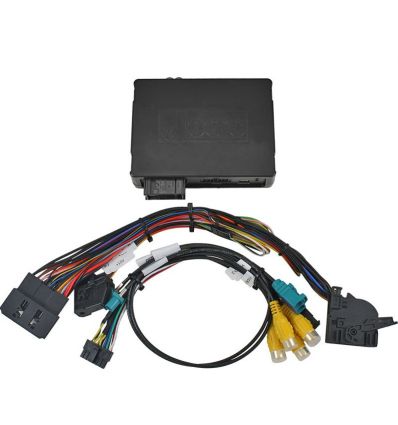

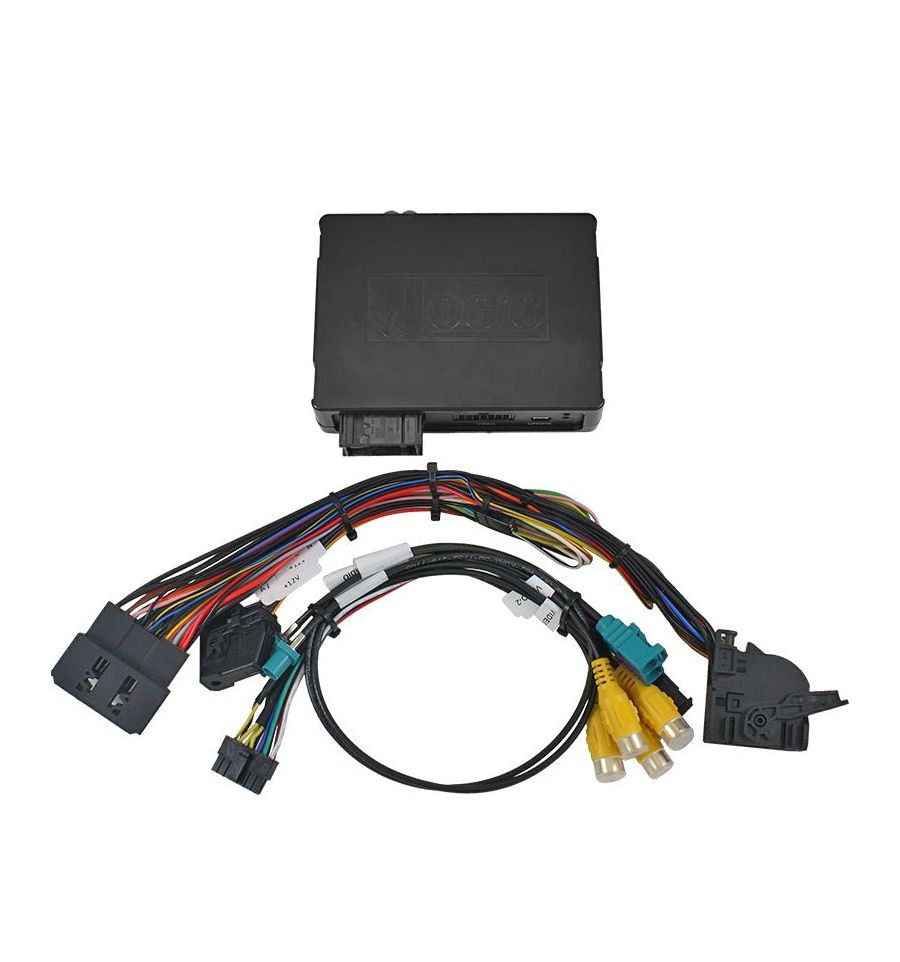

Delivery content:

  • Interface box
  • Power and CAN harness
  • Video inputs harness
  • LVDS cables


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
