MERCEDES Audio15 Rear and front camera interface Expand

MERCEDES Audio15 NTG2.5/NTG5-447 Rear and front camera interface

Mercedes Mercedes

CI-RL3-A15-ME

New

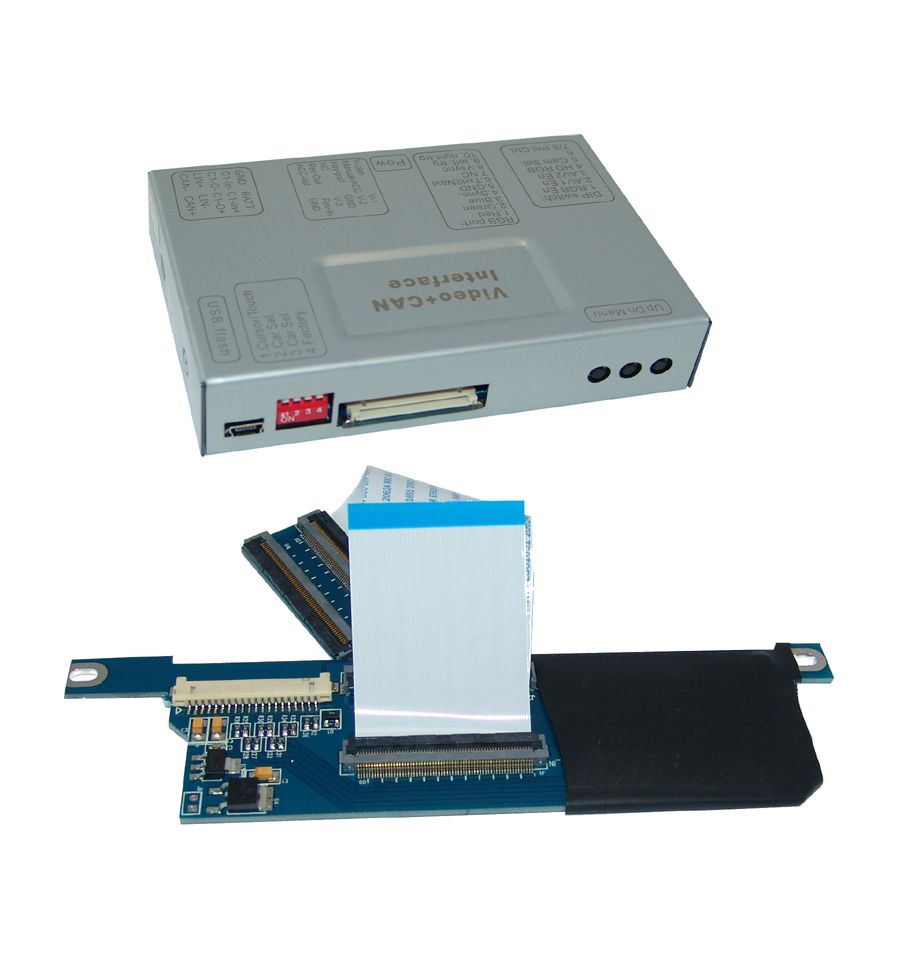

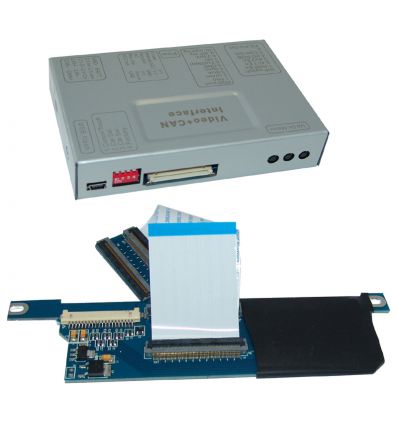

RVC Interface for front and rear view camera for Mercedes Vito W447 and Sprinter W906 with Audio15 NTG2.5/NTG5-447.

More details

shipped in 24 h

€ 327,05

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

RVC Interface for front and rear view camera for Mercedes Vito W447 and Sprinter W906  with Audio15 NTG2.5/NTG5-447.

This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.




Product features:

  • Video-insertion for factory-infotainment systems
  • Rear and front camera CVBS video-inputs.
  • CVBS Video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Manual Switching to Front Camera by Keypad or factory button
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs NTSC compatible




Compatibility:

ModelRadio / Navigation
Vito (W447) about 2015-Audio15 NTG2.5/NTG5-447
(Only version with full DIN cage behind front panel)
Sprinter (W906) about 2015-



Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Connecting 2 AV-sourcesIf 2 AV-sources shall be connected to the infotainment the optional audio switch SW-A2X1 is available, which is controlled by the video interface.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



The interface has to be installed in the monitor panel (the cover needs to be opened!).



Specifications:



BATT/ACC range7V ~ 25V
Stand.by power drain135mA
Power135mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions118 x 23 x 86 mm (W x H x D)

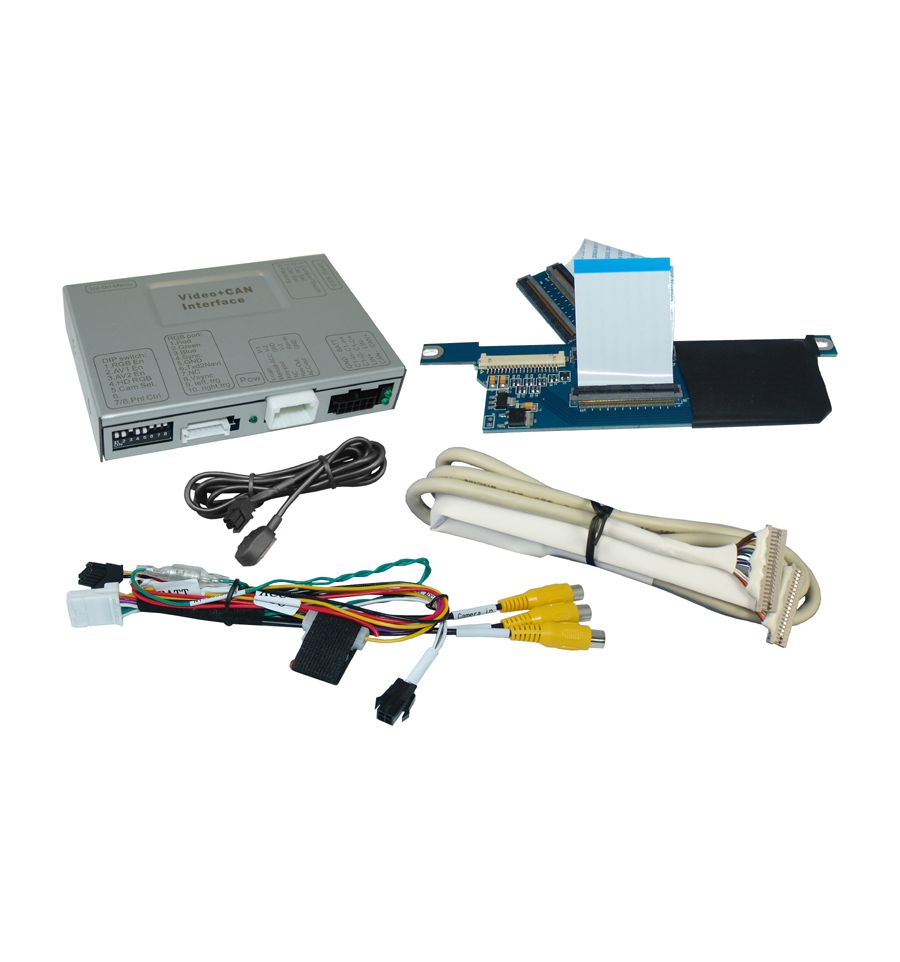

Connectors:

  • Video-insertion: ribbon cable
  • Power and CAN-bus: open cable end (vehicle specific)
  • Video-input (2x): female RCA connector
  • Rear-view camera-input: female RCA connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

MercedesSprinter, Vito (W447)
CategoryVideo integration
